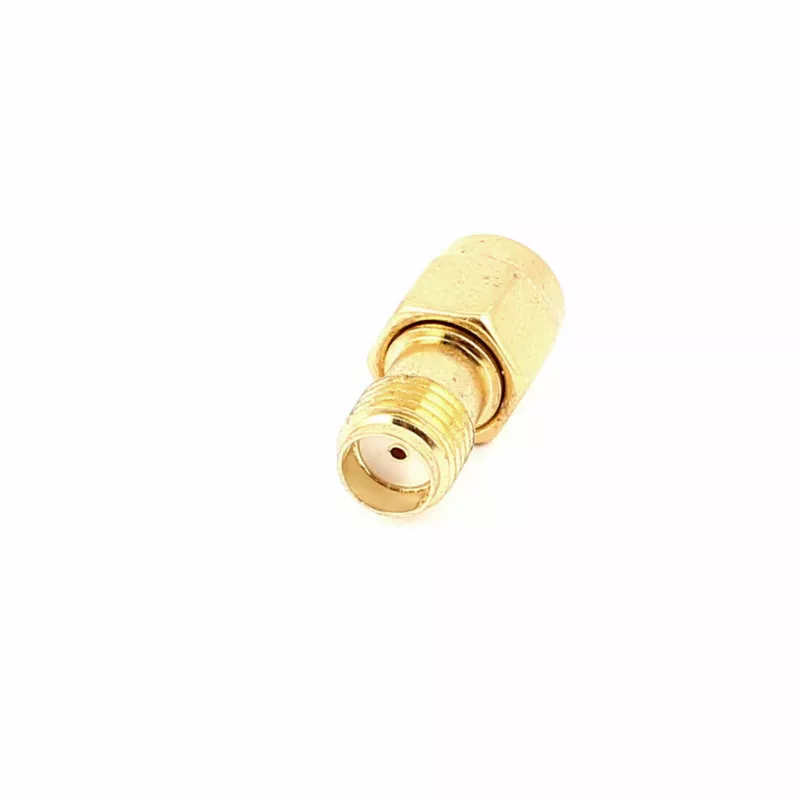

Poynting A-ADPT-033 SMA Female naar RP-SMA Male Coaxiale RF-adapter

The Poynting A-ADPT-033 is a high-quality coaxial RF adapter designed to connect SMA Female connectors to RP-SMA Male connectors. This adapter is ideal for wireless communication, antenna systems, and RF equipment, ensuring reliable signal transmission with minimal loss.

Advantages

This adapter provides a seamless transition between standard SMA and reverse polarity RP-SMA interfaces, making it versatile for various applications. Its robust construction with brass and nickel plating ensures durability and long-lasting performance. The PTFE dielectric material offers excellent insulation and stability across a wide frequency range.

Suitable for

• Wireless communication systems
• Antenna installations
• RF equipment and test setups
• Wi-Fi and IoT devices

Key specifications

• Connector A: SMA Female
• Connector B: RP-SMA Male
• Impedance: 50 Ohm
• Frequency Range: DC to 6 GHz
• VSWR: < 1.5:1
• Insertion Loss: < 0.3 dB
• Operating Temperature: -40°C to +85°C
• Durability: 500 mating cycles
• Material: Brass, nickel plated
• Dielectric: PTFE
• RoHS compliant

Recommendations

For optimal performance, use this adapter with high-quality coaxial cables and connectors. Ensure proper mating and avoid over-tightening to maintain signal integrity.
