PSSO DMX-kabel IP65 3-polig 3 m, zwart, model 3022783C

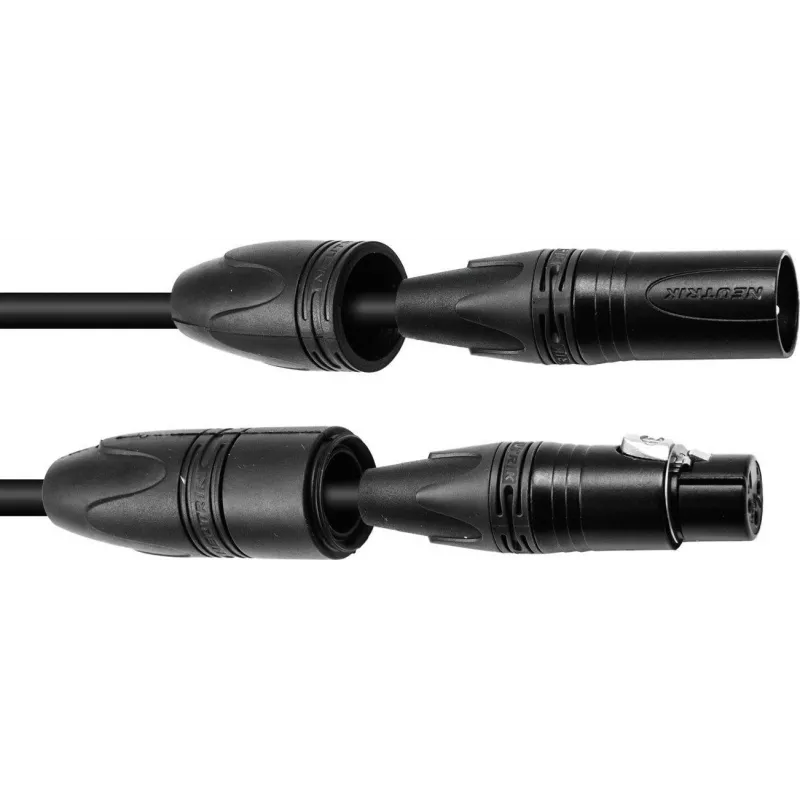

PSSO DMX cable IP65 3-pin 3 m in black is a shielded control cable designed for DMX512 lighting systems that require splash and dust protection. The cable features a 3-pin connector in an IP65-rated assembly to maintain signal integrity in indoor and protected outdoor installations. With a 3 meter length and robust outer sheath, this product is intended for connecting lighting fixtures, controllers and dimmers where sealed cable connections are necessary.

Advantages

The shielded construction reduces electromagnetic interference and helps preserve stable DMX signal transmission over the 3 m run. The IP65-rated connector and sealed assembly protect against water spray and dust ingress at connection points, extending reliable operation in environments such as covered stages, event tents and semi-outdoor installations. The black outer jacket provides a discreet appearance while offering mechanical protection and flexibility for routing during installation.

Suitable for

Key specifications

How to use

Connect the 3-pin DMX connector to the corresponding DMX input or output on the lighting fixture, controller or dimmer, ensuring correct pin alignment. Tighten any locking mechanism or threaded coupling that the connector offers to achieve the IP65 seal at the connection point. Route the cable to avoid sharp bends, excessive tension and exposure to direct water jets; for outdoor-exposed runs use additional protective conduits or trunking where required. If extending the run, use compatible shielded DMX cables and maintain proper termination at the far end of the DMX chain.

Recommendations

Use this cable for short to medium DMX connections in environments that need splash and dust resistance at connection points. Verify pinout compatibility with your DMX equipment before installation and avoid permanent immersion or direct high-pressure water exposure, as IP65 protects against sprays but not submersion.
