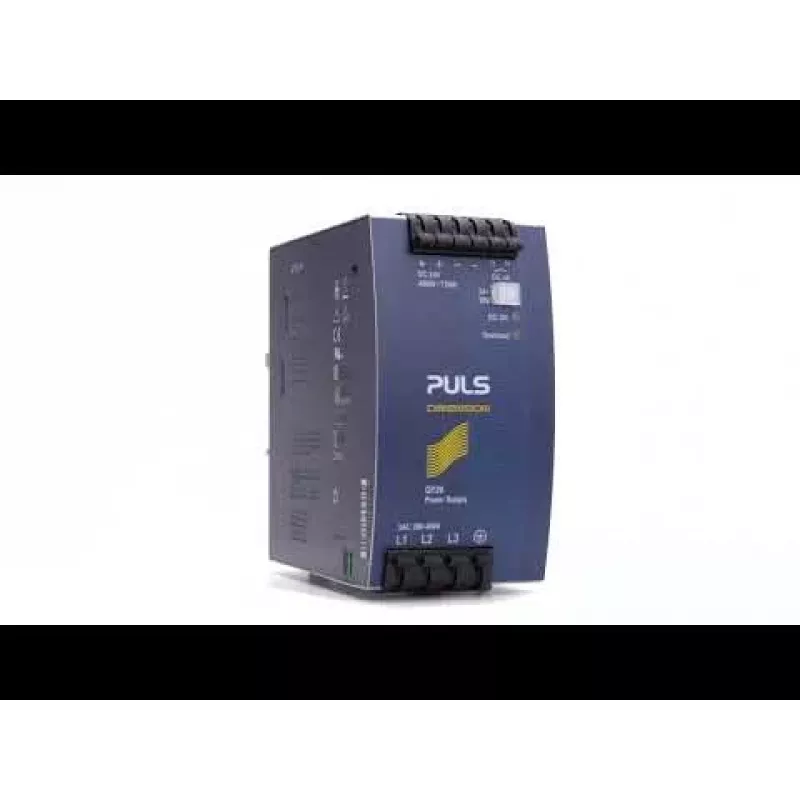

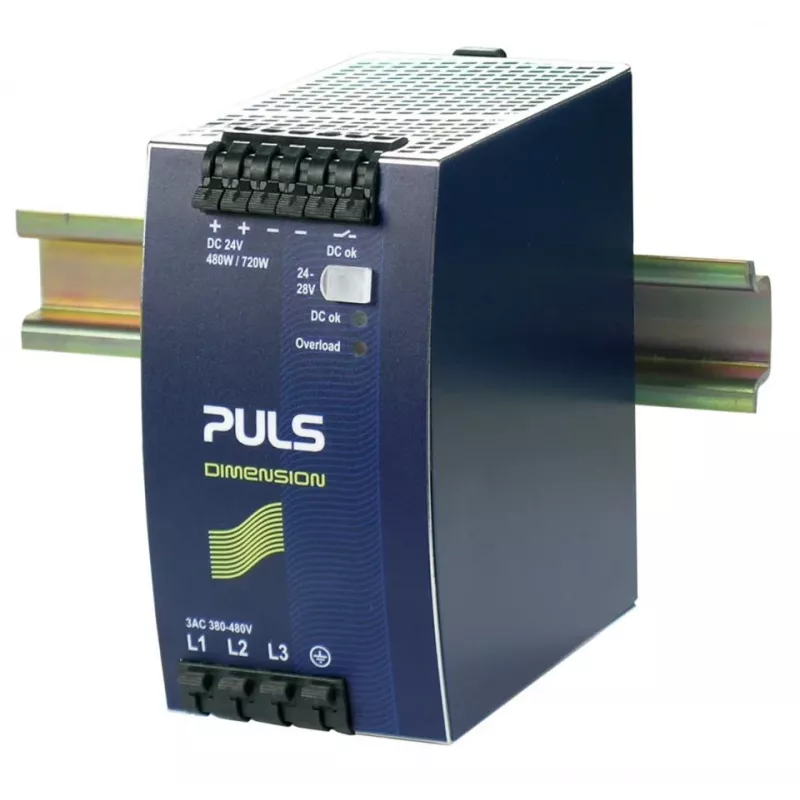

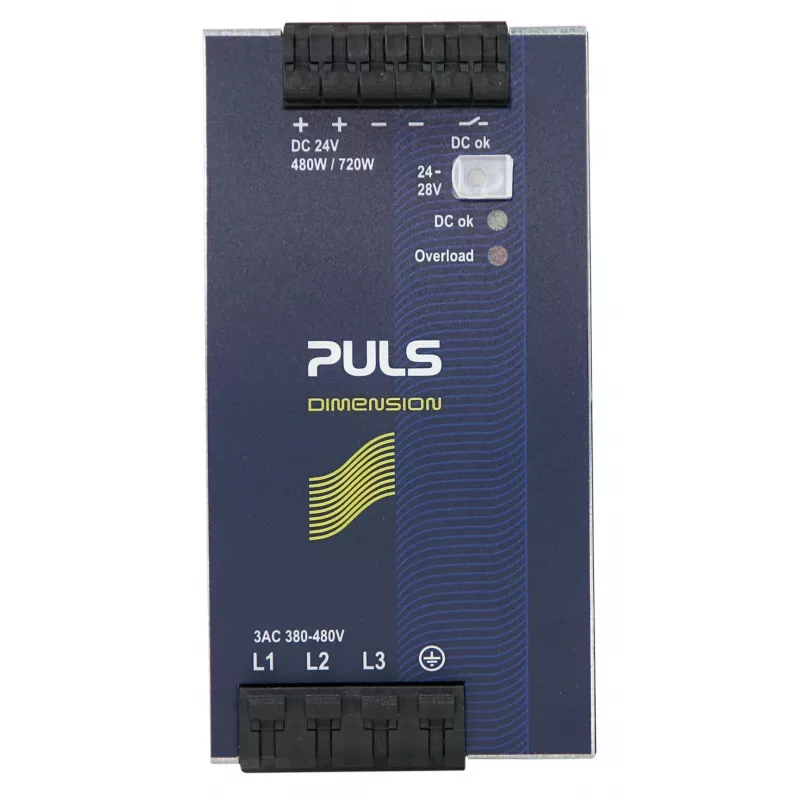

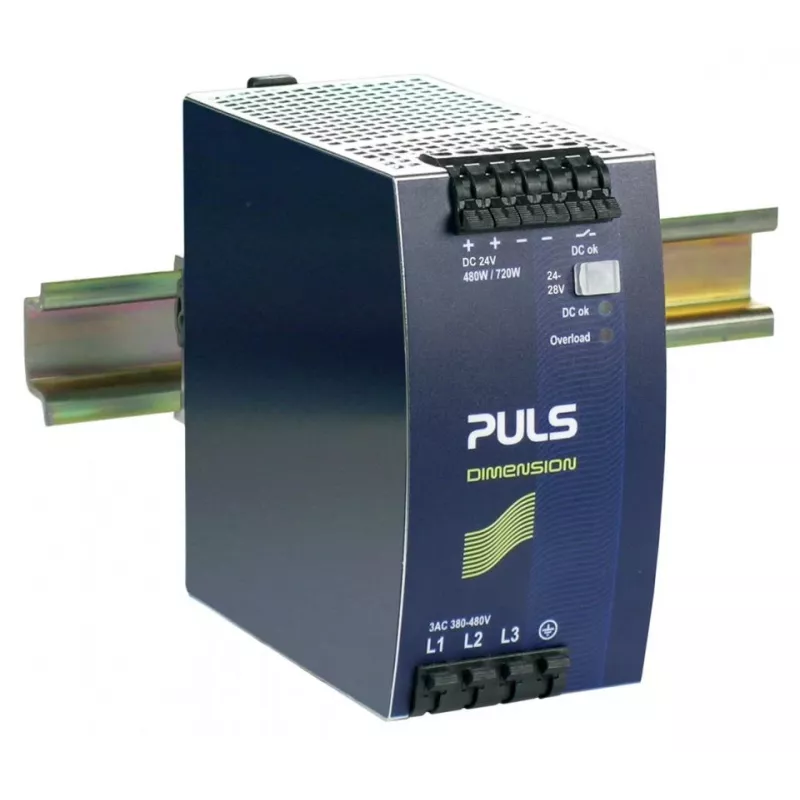

PULS DIMENSION QT20.241 3-fase DIN-rail voeding 24V DC 20A 480W

Industrial DIN rail power supply unit delivering 480W output power with 24V DC and 20A, engineered for 3-phase 340-575V AC input. Its high efficiency of up to 95.6% and convection cooling ensure reliable operation in demanding automation environments.

Advantages

With a wide input voltage range and adjustable output from 24V to 28V DC, this unit provides flexibility for various industrial applications. It supports parallel operation for power increase or redundancy, enhancing system availability. The metal housing and DIN-rail mounting facilitate robust and easy installation.

Suitable for

• Industrial automation systems
• Machinery requiring stable 24V DC power
• Three-phase power distribution panels
• Applications needing high efficiency and compact design

Key specifications

• Input voltage: 3x 340-575V AC
• Output voltage: 24V DC (adjustable 24-28V DC)
• Output current: 20A
• Output power: 480W
• Efficiency: up to 95.6%
• Operating temperature: -25°C to +70°C
• Protection features: overload, short-circuit, overvoltage, overtemperature
• Ripple & noise: < 50mVpp
• Hold-up time: > 20ms at 3x 400V AC, 480W
• Power factor: > 0.95 at 3x 400V AC, 480W

Recommendations

Ideal for engineers seeking a reliable, high-efficiency power supply for three-phase industrial systems, with proven performance in harsh environments.
