Pulsar AWO250EMT lege alarmbehuizing 17/50/DSPR/EMPTY zwart

The Pulsar AWO250EMT is a robust, empty alarm enclosure designed for housing alarm systems, access control, CCTV, and other low-voltage installations. Manufactured from 0.8 mm steel sheet with a black RAL 9005 finish, this surface-mounted enclosure offers reliable protection for your electronic components. It features a key lock with cylinder, tamper protection via a microswitch for door opening detection, and passive ventilation. The enclosure can accommodate a 12V battery up to 17 Ah and supports power supplies up to 50 W. Cable entries are provided via knock-outs, and an internal mounting plate is included. Two keys are supplied with the unit.

Advantages

Durable steel construction with tamper protection ensures security for your alarm or control equipment. The key lock and microswitch provide peace of mind against unauthorized access. Passive ventilation helps maintain optimal operating temperatures.

Suitable for

• Alarm systems
• Access control systems
• CCTV installations
• Low voltage power supplies

Key specifications

• Enclosure Type: Universal Alarm/Security Enclosure
• Material: Steel Sheet (0.8 mm)
• Colour: RAL 9005 (Black)
• Mounting: Surface (Wall-mounted)
• IP Rating: IP20
• Tamper Protection: Yes (Microswitch)
• Lock: Key Lock (Cylinder)
• Max Battery Capacity: 17 Ah (12V)
• Max Power Supply Capacity: 50 W
• Ventilation: Passive
• Cable Entries: Knock-outs

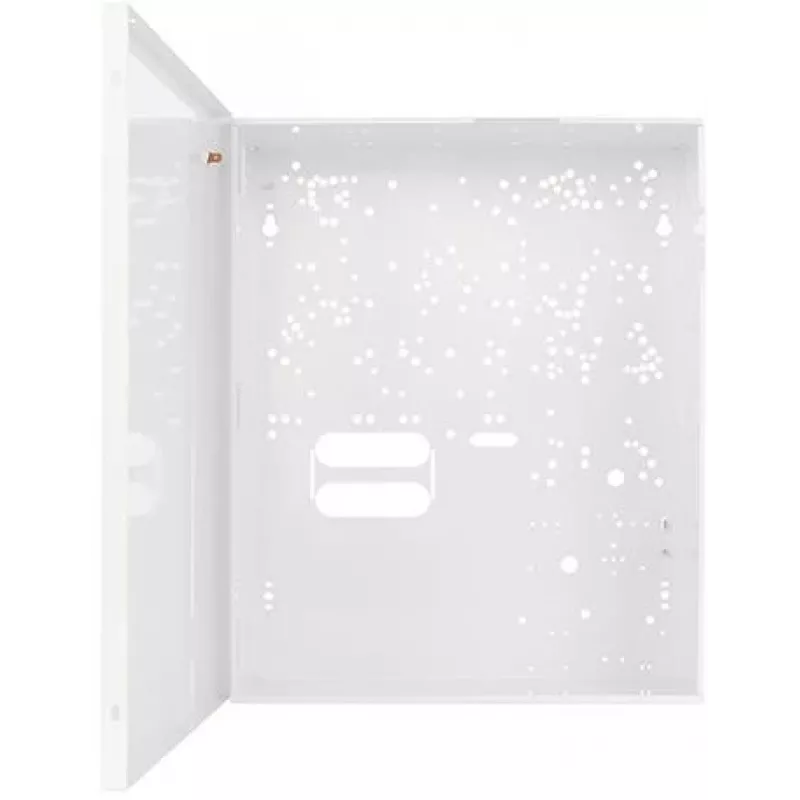

• Internal Mounting Plate: Yes
• Keys Included: 2
• Operating Temperature: -10°C to +40°C
• Relative Humidity: 20% to 90% (non-condensing)

Recommendations

For optimal performance, ensure the enclosure is mounted on a solid wall and that all cable entries are properly sealed to maintain IP20 protection. Use only compatible batteries and power supplies within the specified limits.
