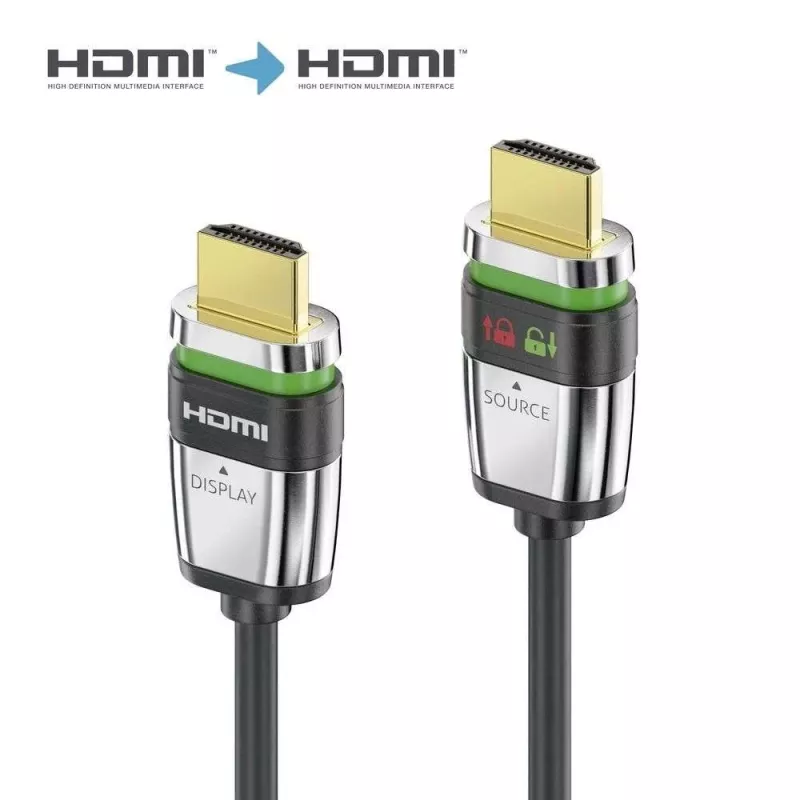

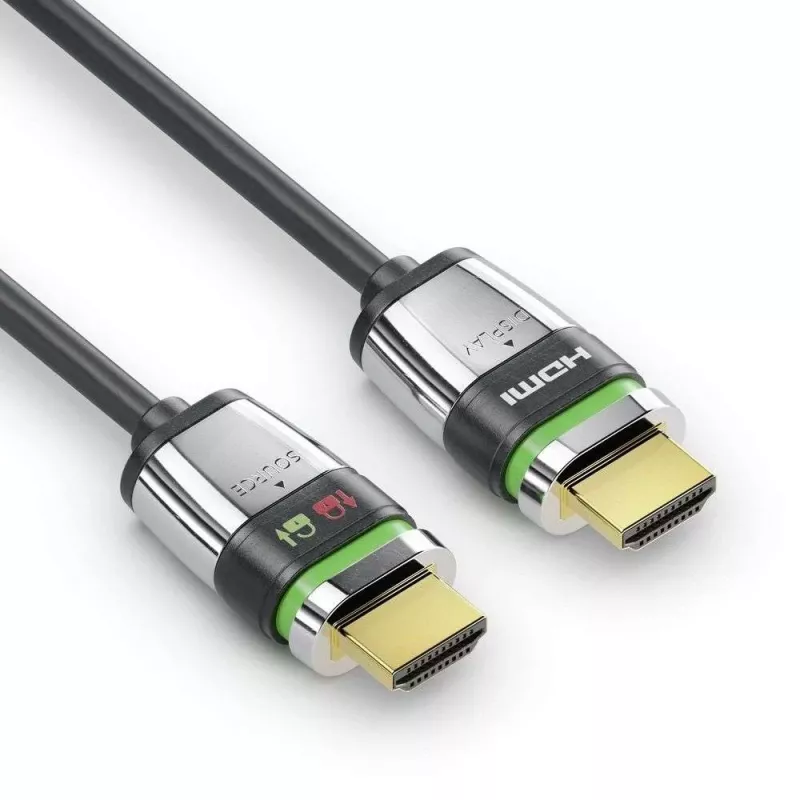

PureLink FiberX Series FX-I355-007 HDMI 4K ULS fiber extender-kabel 7,5m LSZH

The PureLink FiberX Series FX-I355-007 is a premium active optical HDMI cable designed for reliable 4K UHD signal transmission over long distances. With a length of 7.5 meters, this cable supports resolutions up to 3840x2160 @ 60Hz with 4:4:4 chroma subsampling, HDR10, HLG, and Dolby Vision. It is HDCP 2.2 compliant and supports advanced audio formats including Dolby Atmos and DTS:X. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in public and commercial installations.

Advantages

This cable offers uncompromised 4K signal integrity over 7.5 meters without external power, thanks to its hybrid fiber optic and copper construction. It is directional with clearly marked source and display ends, making installation straightforward. The gold-plated connectors provide corrosion resistance and optimal signal transfer.

Suitable for

• Home theater systems requiring long HDMI runs
• Professional AV installations in conference rooms and digital signage
• Gaming setups needing high bandwidth and low latency
• Broadcast and production environments

Key specifications

• HDMI Standard: HDMI 2.0b
• Max Resolution: 4K UHD (3840x2160) @ 60Hz
• Data Rate: 18 Gbps
• Color Subsampling: 4:4:4
• HDR Support: HDR10, HLG, Dolby Vision
• HDCP Compliance: HDCP 2.2
• Audio Support: Dolby Atmos, DTS:X, LPCM 7.1, ARC
• CEC Support: Yes
• Cable Length: 7.5 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Connector Type: HDMI Type A Male to HDMI Type A Male
• Directionality: Directional (Source/Display marked)
• Power Supply: Bus-powered (no external power required)
• Conductor Material: Hybrid (Fiber Optic & Copper)
• Connector Plating: Gold-plated
• Cable Diameter: Approx. 4.5 mm
• Operating Temperature: 0°C to 50°C
• Compliance: CE, RoHS, REACH

Recommendations

For optimal performance, ensure the cable is installed in a dry environment within the specified temperature range. Avoid sharp bends and excessive pulling. This cable is ideal for fixed installations where reliability and high bandwidth are required.
