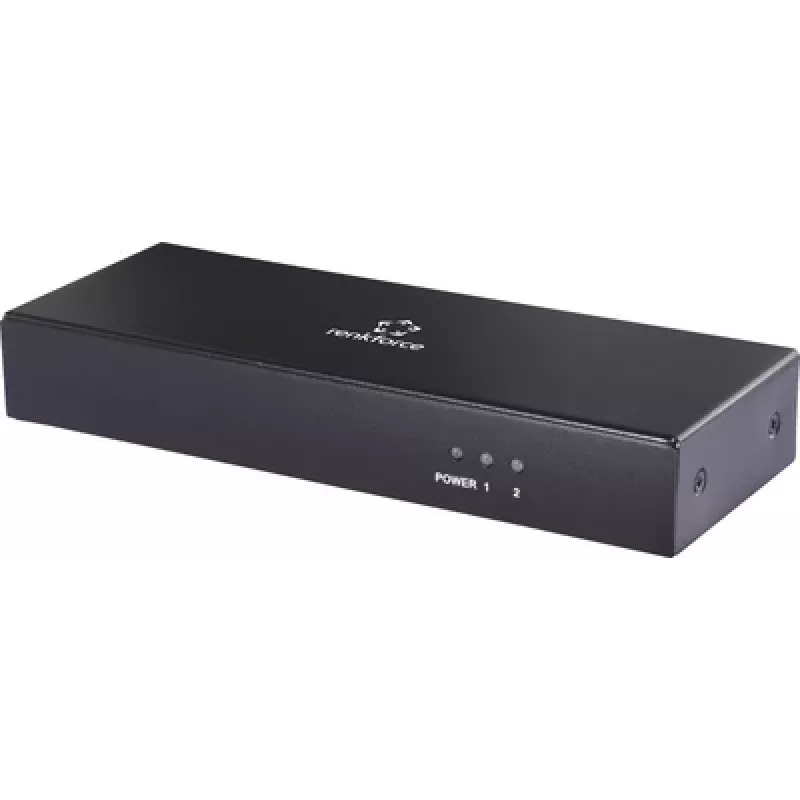

Renkforce RF-DVIS-200 DVI-splitter intern 4K UHD 2-poorts zwart RF-6951664

This Renkforce RF-DVIS-200 is a DVI splitter engineered for internal PC use, allowing a single DVI-D Dual Link source to drive two displays simultaneously. Unlike common external splitters, it mounts inside the computer case and draws power via a SATA connector, keeping the setup tidy and eliminating an extra power brick. It supports Ultra HD resolutions up to 3840 x 2160 pixels at 30 Hz, making it suitable for high-resolution digital signage or multi-monitor workstations where space and cable management matter.

Highlights

• 1x DVI-D Dual Link input to 2x DVI-D Dual Link outputs
• Supports 4K UHD (3840 x 2160) at 30 Hz
• Internal mounting with SATA power connection
• HDCP compliant for protected content
• Metal housing in black

In daily use

The splitter duplicates the same video signal to both outputs, which is ideal for mirroring a desktop across two monitors or driving identical displays in a kiosk or control room. With a 10.2 Gbps bandwidth and support for up to 10-meter cables on both input and output, it offers flexibility in cable routing. Because it is designed for internal installation, it is best suited for system integrators or advanced users who are comfortable working inside a PC case.

Full specifications

• Product type: DVI Splitter
• Input: 1x DVI-D Dual Link
• Outputs: 2x DVI-D Dual Link
• Maximum resolution: 3840 x 2160 pixels (4K UHD)
• Maximum refresh rate at 4K: 30 Hz
• DVI standard: DVI-D Dual Link
• HDCP support: Yes
• Video bandwidth: 10.2 Gbps
• Power supply: 5V DC via SATA Power Connector
• Application: Internal PC use
• Housing material: Metal
• Colour: Black
• Max input cable length: 10 m
• Max output cable length: 10 m
• Number of displays supported: 2
• Signal type: Digital Video Interface (DVI)

Final note

For a clean, internal solution to split a DVI signal to two UHD displays, the RF-DVIS-200 delivers reliable performance with minimal clutter.
