Riser Card DeLOCK PCI Express x1 naar x16 met flexibele kabel 80 cm

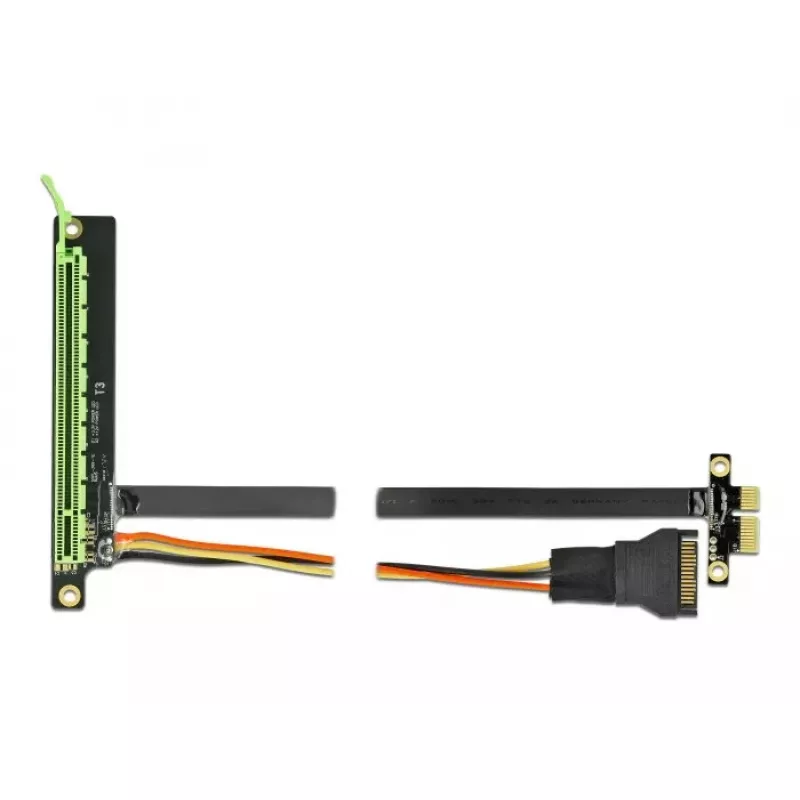

This PCI Express riser card by DELOCK allows connecting a PCI Express x16 card to a system via a PCI Express x1 host interface. The unit includes a flexible 80 cm cable with SATA power connector for space-saving installation inside a computer case and supports routing the PCIe x16 slot away from the motherboard to accommodate different layouts.

Advantages

The riser card provides a flexible 80 cm cable that enables installation in confined or non-standard case layouts. It uses a standard SATA power connection for stable power delivery and a PCIe x16 output for compatibility with full-size expansion cards. The compact design and color scheme in black and green help integrate the module into various system builds.

Suitable for

• Systems requiring relocation of a PCIe x16 slot for space or airflow reasons
• Compact or custom PC cases where direct motherboard installation is not possible
• Testing or development setups that need flexible access to a PCIe x16 card

Key specifications

• Brand: DELOCK
• Model / MPN: 85763
• EAN: 4043619857630
• Interface (host): PCI Express x1
• Interface (device): PCI Express x16
• Cable length: 80 cm (0.8 m)
• Power connector: SATA
• Colors: black / green

How to use

Connect the riser card's PCI Express x1 connector to the corresponding slot on the motherboard. Attach the PCI Express x16 card to the riser card's x16 slot and secure it as required. Connect a SATA power cable from the system power supply to the riser card's power connector to ensure proper power delivery. Route the flexible cable so the card fits neatly inside the case without pinching or sharp bends.

Recommendations

Ensure the SATA power connector is firmly connected and the cable is routed to avoid interfering with fans or other components. Verify motherboard BIOS and operating system support for devices connected via a PCIe x1-to-x16 riser before installation.
