ROGER PR402DR-SET toegangscontroleset

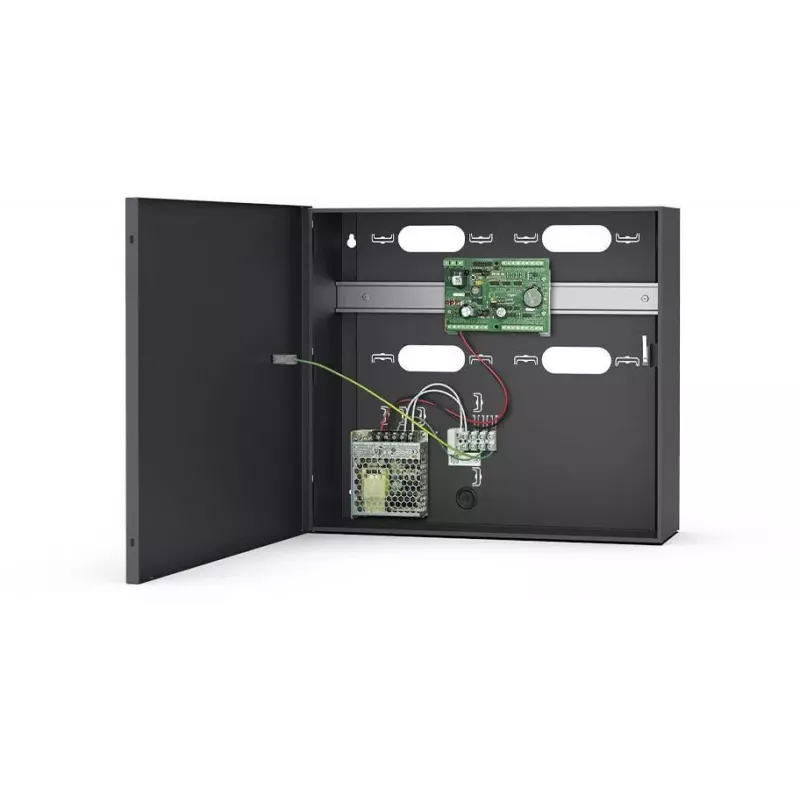

The ROGER PR402DR-SET is a comprehensive access control kit designed for secure and efficient door management. This all-in-one solution includes the PR402DR controller, PRT12LT reader, PS-15/12V power supply, and OB-2P enclosure, providing everything needed for a standalone or networkable access control system.

Advantages

This kit offers easy installation, expandable user capacity up to 32,000 users, and supports multiple reader technologies including EM 125 kHz. The PRT12LT reader features an IP67 rating for outdoor use, while the controller provides 8 programmable inputs and 4 relay outputs for flexible integration.

Suitable for

• Door access control in commercial buildings
• Time and attendance tracking
• Secure area management

Key specifications

• Controller: ROGER PR402DR
• Reader: ROGER PRT12LT (IP67)
• Power Supply: 12V DC, 1.5A
• Enclosure: ABS Plastic
• Max Users: 4,000 (expandable to 32,000)
• Event Log: 32,000 events
• Supported Readers: 2
• Reader Protocols: Wiegand, DALLAS, RACS CLK/DTA
• Communication: RS485, USB
• Operating Temperature: -10°C to +50°C

Recommendations

For optimal performance, use with RACS 5 management software. Ensure proper mounting and wiring as per installation manual.
