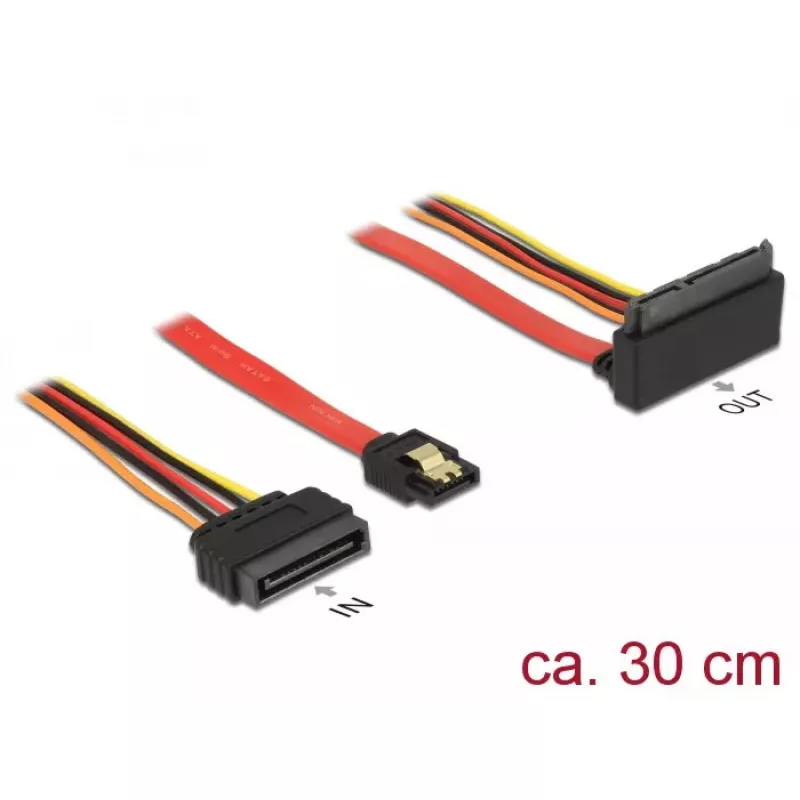

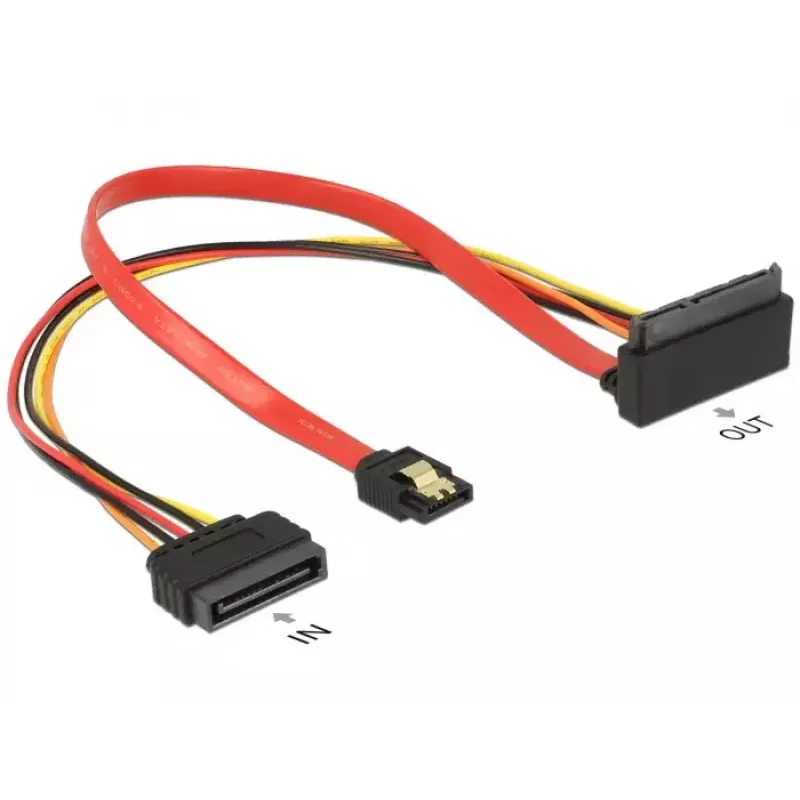

SATA-kabel DeLOCK 85515 SATA 15-pin 1 x SATA 22-pin 1 x SATA 7-pin meerkleurig

This Delock cable (model 85515) connects a device with a 22-pin SATA interface using an available SATA 7-pin data port and an available SATA 15-pin power connector from the power supply. The cable is intended for internal PC use and supports connection of hard drives, SSDs and other SATA devices. The multicolour design identifies the cable's separate connectors.

Advantages

The metal clips on the SATA receptacles secure the cable reliably into the SATA ports. The combined set of one 22-pin, one 7-pin and one 15-pin connector reduces the number of separate cables needed when installing SATA devices. The cable is compatible with standard SATA internal ports and follows common pin assignments for power and data.

Suitable for

• Connecting 22-pin SATA devices to a PC motherboard or controller using a 7-pin data port
• Powering SATA drives from a 15-pin SATA power connector
• Installing internal HDDs and SSDs in desktop systems

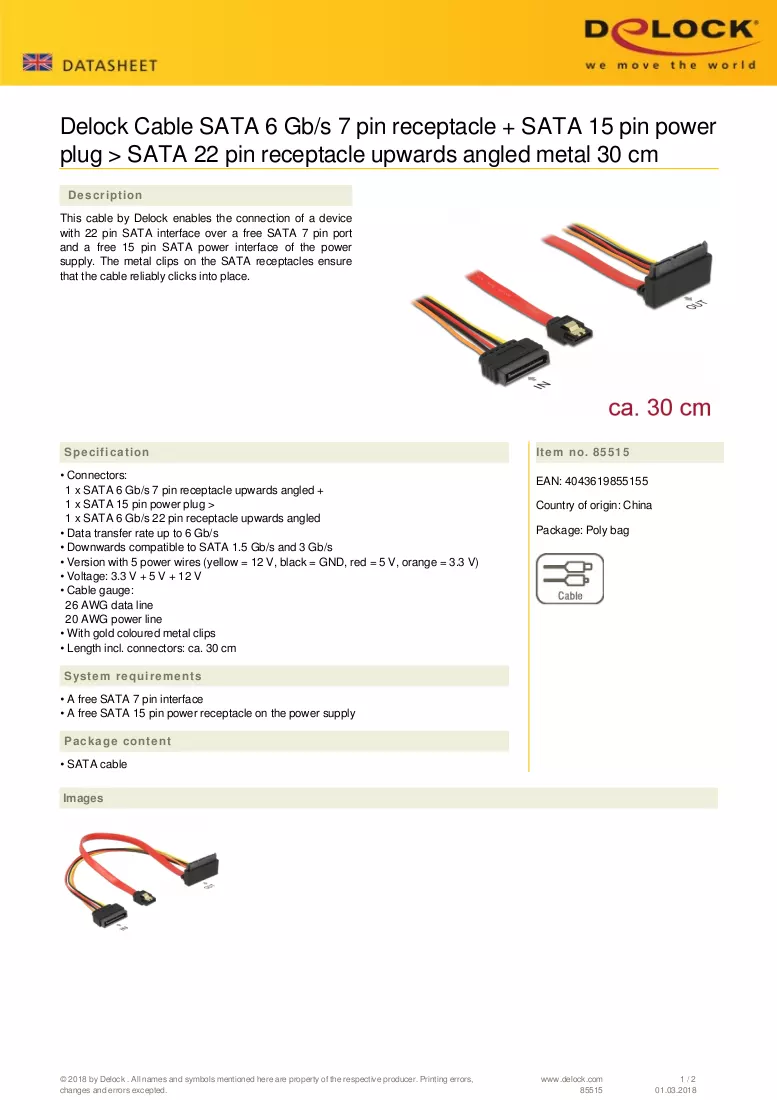

Key specifications

• Brand: DELOCK
• Model / MPN: 85515
• EAN: 4043619855155
• Connector 1: SATA 15-pin (power)
• Connector 2: 1 x SATA 22-pin, 1 x SATA 7-pin (data)
• Product colour: Multicolour

How to use

Power off the computer and disconnect it from the mains. Plug the 15-pin SATA power connector into an available SATA power socket from the power supply. Insert the 7-pin SATA data connector into the motherboard or SATA controller port and connect the 22-pin SATA connector to the device with a 22-pin SATA interface. Ensure the metal clips click into place to confirm secure connections. Reconnect power and boot the system to verify device recognition.

Recommendations

Do not force connectors into ports; align them with the latch and pins before applying gentle pressure. Install or remove the cable only when the PC is powered off to avoid data loss or electrical damage.
