Satechi Triple 4K Display bedrade dock zwart zilver 4K Ultra HD 60 Hz

The Satechi Triple 4K Display Wired Dock is a compact wired docking station that supports three 4K/60Hz external displays using DisplayLink Manager software. It provides multiple video outputs (2x DisplayPort 1.4 and 3x HDMI 2.0) and broad host compatibility for devices with USB-A or USB-C ports. The dock also includes Gigabit Ethernet and a range of high-speed USB ports for data, charging and reliable wired connectivity.

Advantages

This docking station enables up to three independent 4K/60Hz displays in extended mode when used with DisplayLink-compatible hosts, offering a practical solution for devices (including Macs with M1/M2) that natively limit external monitors. It offers a mix of video, network and USB ports — including 1 Gbps Ethernet, multiple USB 3.0 ports at 5 Gbps, and USB 3.1 Gen 2 ports at 10 Gbps with 7.5W charging — plus up to 100W pass-through charging via the host-side connection. The enclosure is vented for heat dissipation and laid out to reduce desktop clutter with front-facing data/charging ports and a side host port for cable management.

Suitable for

• Multi-monitor workplaces requiring up to three 4K/60Hz displays
• MacBook users with M1 or M2 processors who need more than one external monitor
• Home offices and small workstations needing Gigabit Ethernet and multiple USB ports
• Users who want a compact, wired docking solution with pass-through charging

Key specifications

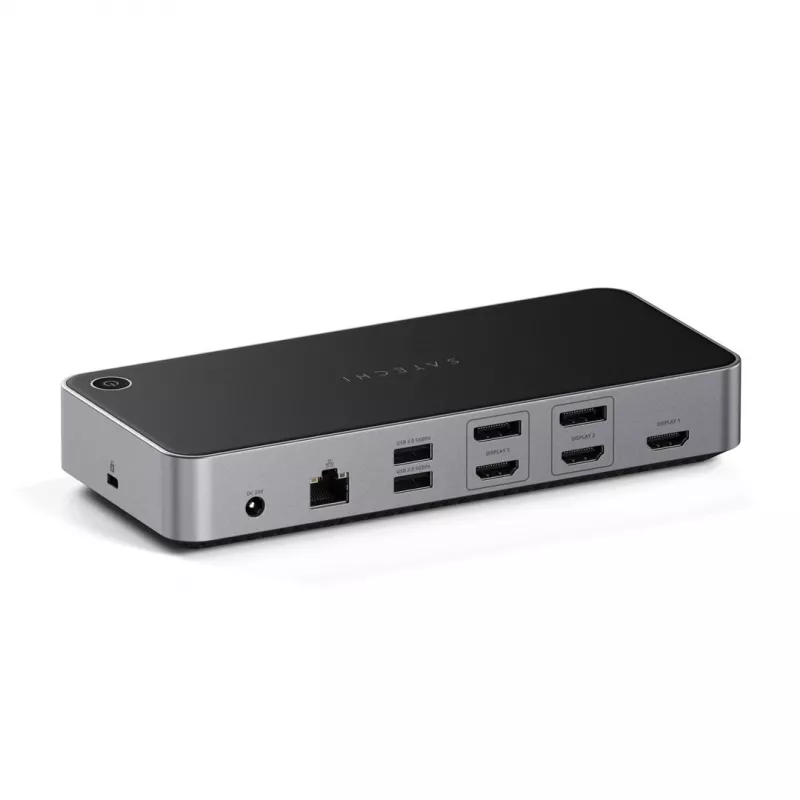

• Video outputs: 2x DisplayPort 1.4, 3x HDMI 2.0
• Maximum external displays: Up to three 4K at 60 Hz (with DisplayLink Manager)
• Host interface: USB-A or USB-C (requires DisplayLink-compatible host)
• Ethernet: 1 Gbit/s
• USB ports: 3x USB 3.0 (5 Gbps), 1x USB 3.1 Gen 2 Type-A (10 Gbps), 1x USB-C 3.1 Gen 2 (10 Gbps, 7.5W charging)
• Pass-through charging: Up to 100W via host-side connection
• Dimensions (W×D×H): 85 × 191 × 32 mm
• Weight: 0.278 kg
• Colour: Black, Silver
• Manufacturer model: Satechi ST-D4KTM-EU (EAN: 810086361021)

How to use

Install DisplayLink Manager software on the host device if required, then connect the docking station to the host using the provided USB-A or USB-C cable. Attach up to three monitors to the DisplayPort and HDMI outputs and configure display settings in the operating system for extended mode. Connect Ethernet and peripherals to the appropriate ports and, if desired, enable pass-through charging by connecting a suitable power adapter to the dock's host-side power input.

Recommendations

For reliable multi-display performance, use the latest DisplayLink drivers compatible with your operating system and connect high-quality DisplayPort or HDMI cables. Ensure the host power adapter supports the desired pass-through wattage (up to 100W) and allow airflow around the vented bottom to maintain optimal thermal performance.
