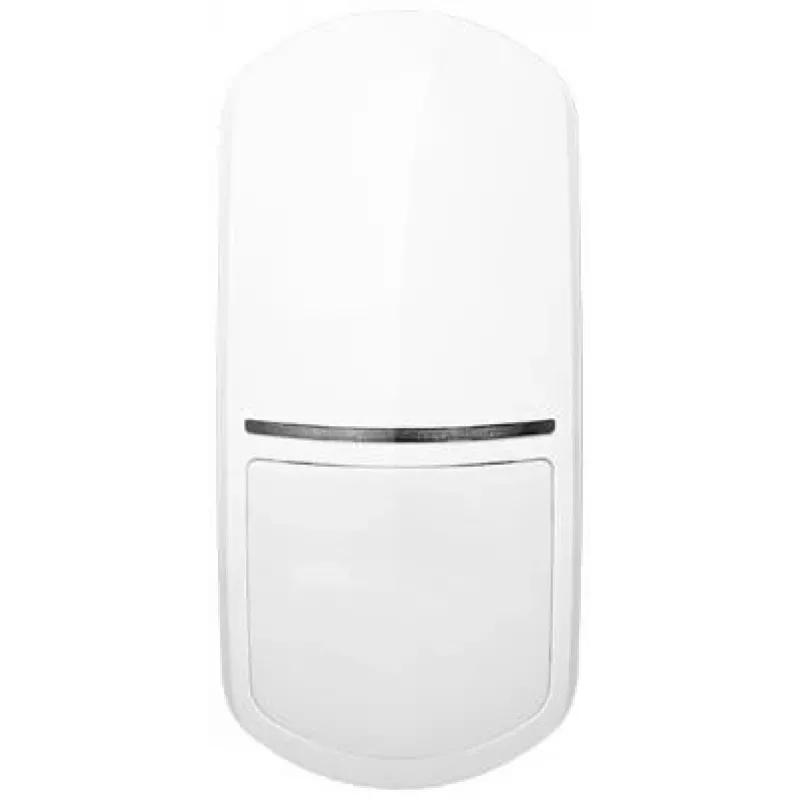

SATEL SLIM-PIR-LUNA-PET BUS PIR-bewegingsmelder met dierimmuniteit

The SATEL SLIM-PIR-LUNA-PET BUS is a high-performance passive infrared (PIR) motion detector designed for integration with SATEL INTEGRA and VERSA alarm systems. Featuring advanced digital signal processing and pet immunity up to 20 kg, this detector minimizes false alarms while providing reliable intrusion detection for residential and commercial premises.

Advantages

Pet immunity up to 20 kg ensures pets do not trigger false alarms. Digital temperature compensation and DSP provide stable detection across varying environmental conditions. Remote configuration via the bus allows easy setup and adjustments. The slim, discreet design blends into any interior.

Suitable for

• Residential homes with pets
• Small offices and retail spaces
• Warehouses and storage areas
• Any premises requiring Grade 2 security

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection range: 15 m x 15 m
• Detection angle: 90°
• Pet immunity: Up to 20 kg
• Recommended mounting height: 2.4 m
• Power supply: 12 V DC (from bus)
• Standby current consumption: 12 mA
• Maximum current consumption: 15 mA
• Operating temperature: -10°C to +55°C
• Compliance: EN 50131-2-2 Grade 2
• Tamper protection: Enclosure opening
• LED indicator: Yes (alarm/trouble)
• Remote configuration: Yes

Recommendations

For optimal performance, mount the detector at 2.4 m height and avoid positioning near heat sources or direct sunlight. Ensure the bus connection is secure and the detector is configured according to the system requirements.
