Satel SLIM-PIR-PRO BUS PIR-bewegingsmelder met anti-masking

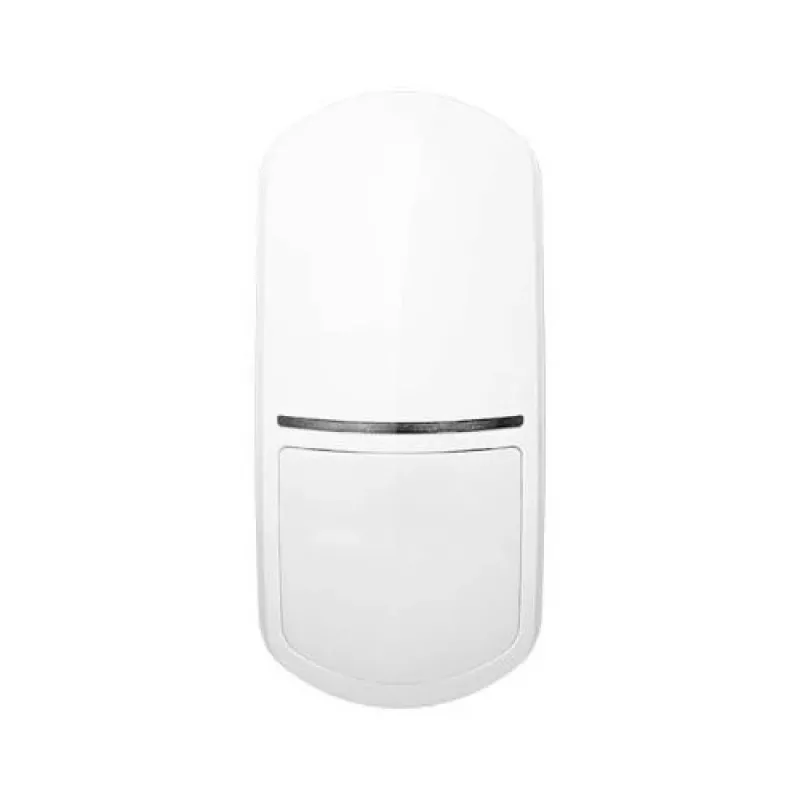

The Satel SLIM-PIR-PRO BUS is a high-performance passive infrared (PIR) motion detector designed for use with the SATEL BUS system. It features active IR anti-masking technology, ensuring reliable detection even in challenging environments. Ideal for residential and commercial security applications, this detector offers a detection range of 15 m x 24 m and a 90° detection angle.

Advantages

Active IR anti-masking prevents tampering by detecting attempts to block the sensor. Digital signal processing and temperature compensation ensure stable performance across varying conditions. Remote configuration and firmware updates via DLOADX software simplify maintenance.

Suitable for

• Security systems in homes and offices
• Integration with SATEL BUS alarm systems
• Areas requiring anti-masking protection

Key specifications

• Detection method: Passive Infrared (PIR)
• Detection range: 15 m x 24 m
• Detection angle: 90°
• Anti-masking: Active IR
• Bus type: SATEL BUS (RS-485)
• Power supply: 12 VDC from bus
• Current consumption: 15 mA standby, 20 mA max
• Operating temperature: -10°C to +55°C
• Mounting height: 2.4 m
• Compliance: EN 50131 Grade 2

Recommendations

For optimal performance, mount at 2.4 m height and ensure clear line of sight. Use with SATEL BUS control panels for full feature support.
