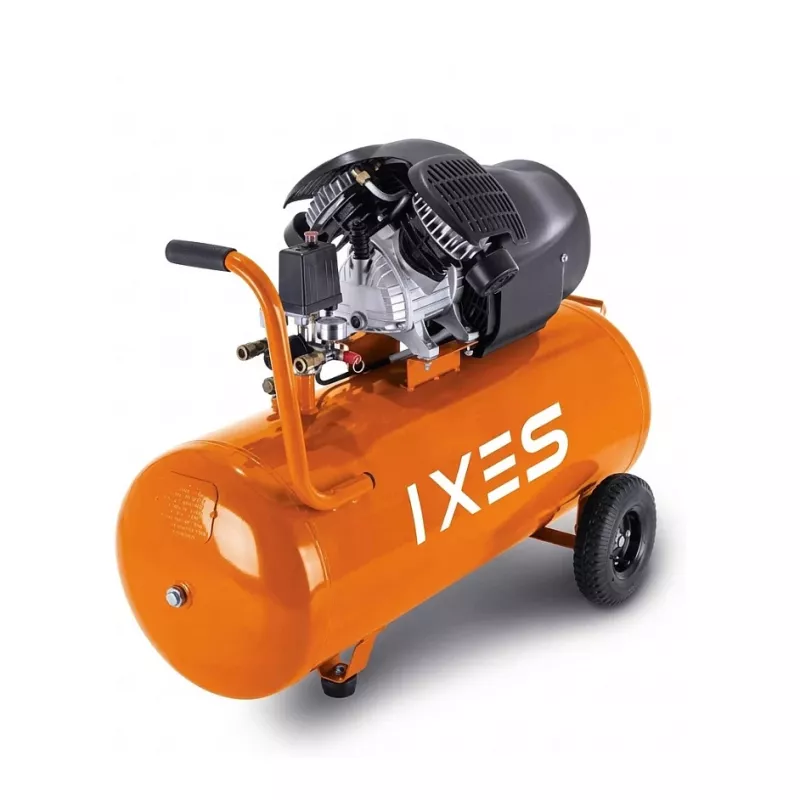

Scheppach IXES IX-AC120TZ compressor 10 bar werkdruk 100 liter tank 3 PK 412 L/min

The Scheppach IXES IX-AC120TZ is a powerful and reliable belt-driven compressor designed for demanding workshop and industrial applications. With a 100-liter tank and a maximum working pressure of 10 bar, it delivers consistent compressed air for a wide range of pneumatic tools. The 3 HP motor and 412 L/min suction capacity ensure efficient operation, while the oil-lubricated pump provides durability and long service life.

Advantages

High-performance 3 HP motor with belt drive for smooth and quiet operation. Large 100-liter tank reduces cycling frequency, ideal for continuous use. Two pressure gauges for precise monitoring of tank and output pressure. Equipped with wheels for easy transport and a drain valve for maintenance.

Suitable for

• Pneumatic tools such as impact wrenches, spray guns, and nailers
• Workshop air supply for inflating tires, cleaning, and painting
• Industrial applications requiring a steady air supply

Key specifications

• Motor Power: 3 HP (2.2 kW)
• Max Operating Pressure: 10 bar
• Tank Capacity: 100 L
• Air Suction Capacity: 412 L/min
• Effective Air Delivery (at 7 bar): 272 L/min
• Voltage: 230 V / 50 Hz
• Number of Cylinders: 2
• Drive Type: Belt-driven
• Lubrication: Oil-lubricated
• Pump Speed: 1300 rpm
• Noise Level: 97 dB(A)
• Pressure Regulator: Yes
• Pressure Gauges: 2 (Tank & Output)
• Wheels for Transport: Yes
• Drain Valve: Yes

Recommendations

For optimal performance, use with quality pneumatic tools and maintain regular oil checks. Suitable for professional workshops and DIY enthusiasts who demand reliability and efficiency.
