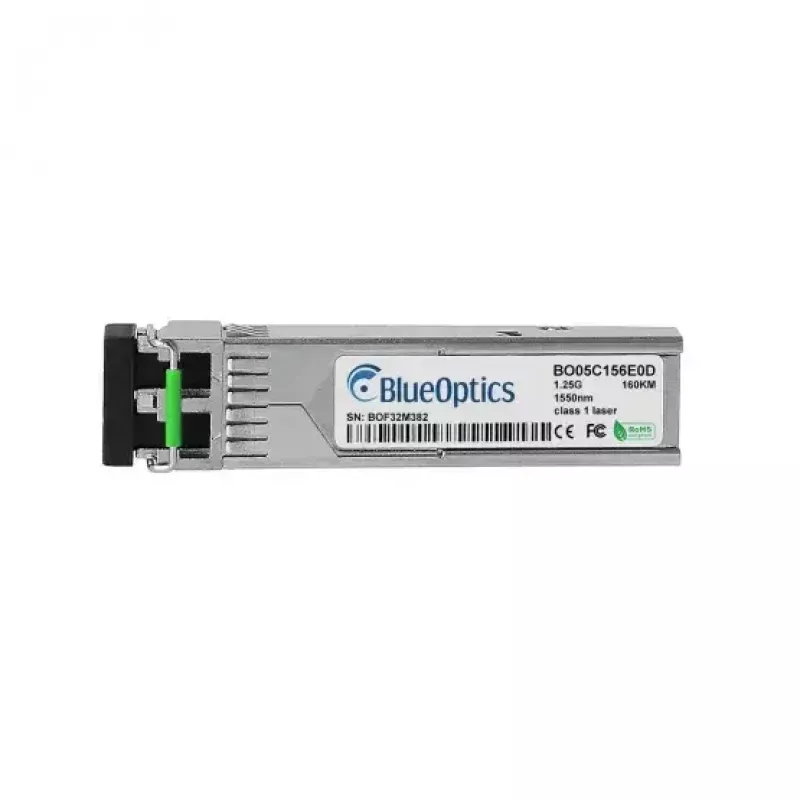

SFP-transceivermodule BlueOptics BTI-MGBIC-GEX-DD-T-LC-BO 1250 Mbit/s 1550 nm

The BlueOptics BTI-MGBIC-GEX-DD-T-LC-BO is an SFP fiber optic transceiver module designed for 1000BASE-ZX class single-mode links. It supports a maximum data transfer rate of 1250 Mbit/s and operates at a wavelength of 1550 nm. The module features a metal housing, an LC duplex optical connector and a compact SFP form factor. It is powered by a 3.3 V input and weighs approximately 20 g, making it suitable for integration in switches, routers and other networking hardware that accept standard SFP modules.

Advantages

This BlueOptics SFP module follows MSA-compliant SFP mechanical and electrical specifications to ensure interoperability with a wide range of networking equipment. The metal housing provides mechanical robustness and thermal dissipation, while the single-mode 1550 nm optical interface enables long-reach transmissions. The module supports standard optical protocols up to 1.25 Gbit/s and is compatible with LC duplex cabling, allowing simultaneous transmit and receive on separate fibers.

Suitable for

Key specifications

How to use

Power down the host device or follow hot-swap procedures recommended by the equipment vendor, then insert the SFP transceiver into a compatible SFP slot until it latches. Connect an LC duplex single-mode fiber patch cord, ensuring correct orientation of transmit and receive fibers. Configure the host interface according to the switch or router documentation to enable the 1000BASE-ZX link and verify link status LEDs or management interfaces. If supported by the host hardware, enable and monitor digital diagnostic functions for supply voltage, laser current, optical power and temperature.

Recommendations

Use single-mode LC duplex fiber patch cords of appropriate attenuation and quality for long-reach links, and confirm that the target hardware supports 1000BASE-ZX SFP modules and optional digital diagnostics (DDM/DOM) to access real-time operating parameters.
