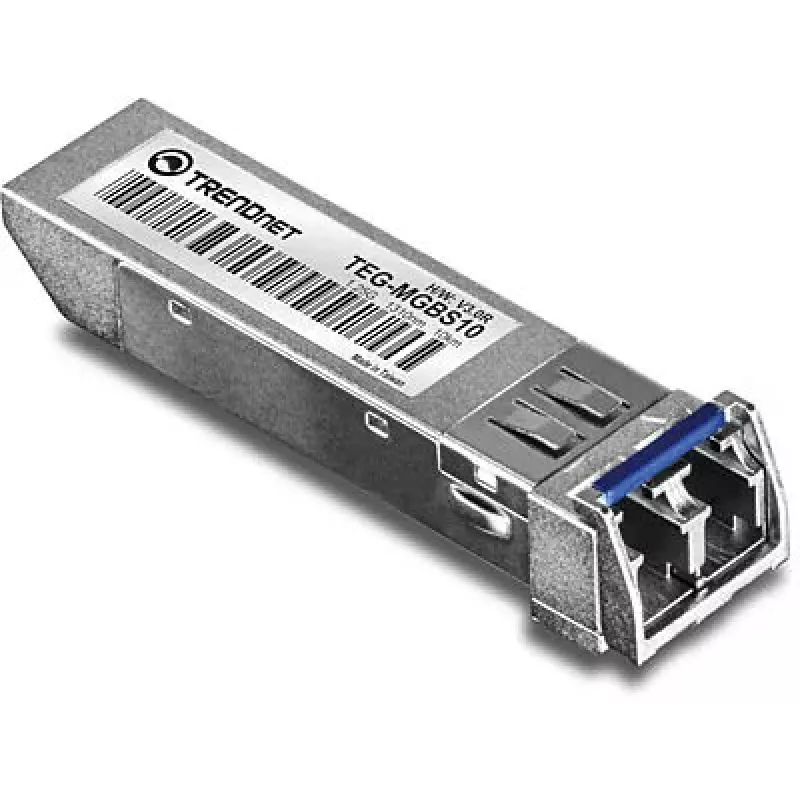

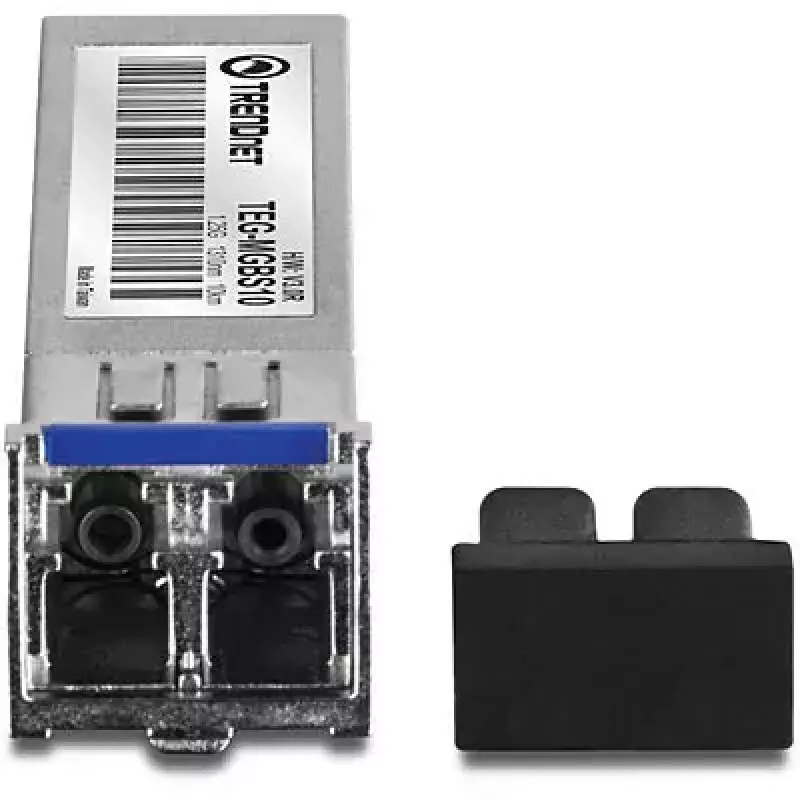

SFP-transceivermodule Trendnet TEG-MGBS10D5

The Trendnet SFP transceiver module TEG-MGBS10D5 is a hot-pluggable single-mode fiber optic SFP module with an LC simplex connector and dual-wavelength operation (1310/1550 nm). Designed for long-distance links, it supports spans up to 10 km and a data transfer rate of 1000 Mbit/s. The module is compatible with standard SFP slots and must be paired with the TEG-MGBS10D3 or another compatible module for full bidirectional operation.

Advantages

This SFP transceiver provides reliable single-mode fiber connectivity for long-distance links up to 10 kilometers while remaining lightweight (approximately 18 g) and hot-pluggable. It supports a standard 1000 Mbps-LX interface and installs into standard SFP slots, making it suitable for upgrades or replacements without changing existing hardware.

Suitable for

• Long-distance point-to-point fiber links (up to 10 km)
• Gigabit Ethernet connections using LC simplex connectors
• Network equipment requiring SFP form-factor transceivers

Key specifications

• Model: Trendnet TEG-MGBS10D5
• Form factor: SFP (hot-pluggable)
• Connector: LC simplex
• Wavelengths: dual-wavelength (1310/1550 nm)
• Maximum distance: up to 10 km (6.2 miles)
• Maximum data rate: 1000 Mbit/s (1000 Mbps-LX)
• Compatibility: compatible with standard SFP slots; must be paired with TEG-MGBS10D3 or compatible module
• Weight: 0.018 kg

How to use

Insert the TEG-MGBS10D5 into an available standard SFP slot on compatible network equipment while the device is powered on or off (hot-pluggable). For bidirectional communication, install a matching module such as the TEG-MGBS10D3 at the remote end. Connect single-mode fiber using an LC simplex connector and ensure correct fiber polarity. Configure the connected equipment for a 1000 Mbps-LX interface if necessary.

Recommendations

To ensure reliable link performance, use single-mode fiber of appropriate quality, verify polarity and cleanliness of LC connectors before connection, and pair the module with the specified compatible transceiver (TEG-MGBS10D3 or equivalent). Confirm that connected switches or routers support the 1000 Mbps-LX SFP module.
