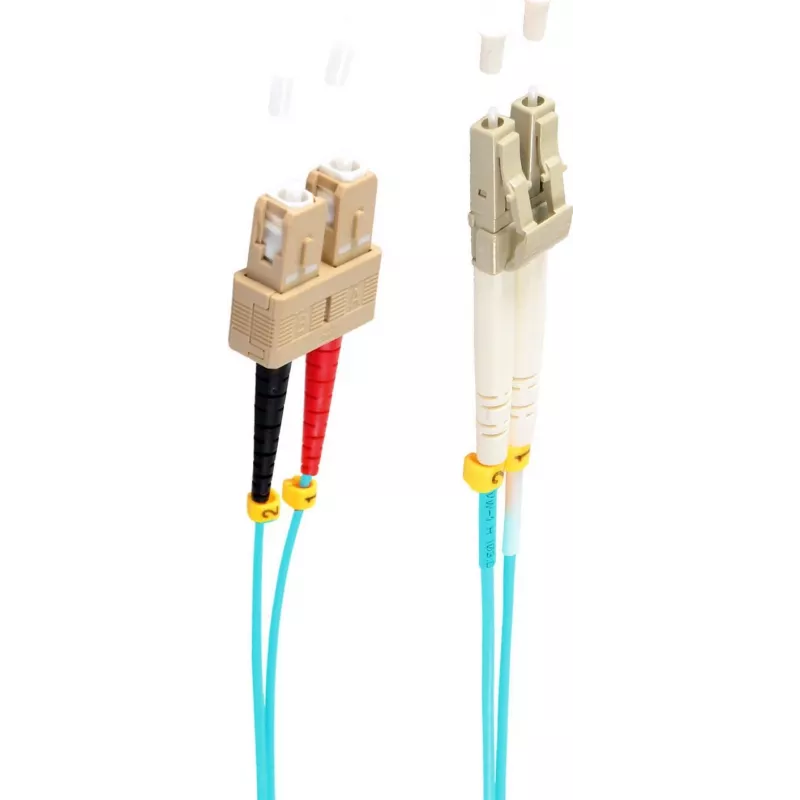

SHIVERPEAKS BS77955/3 OM3 multimode glasvezel patchkabel LC naar SC duplex 5m aqua LSZH

Data centers and enterprise networks rely on dependable fiber optic links for high-speed data transfer. The SHIVERPEAKS BS77955/3 is a 5-meter OM3 multimode duplex patch cable terminated with LC and SC connectors, ready to connect switches, servers, and patch panels. Its aqua jacket and LSZH construction make it a safe and recognizable choice for structured cabling in offices, server rooms, and industrial environments.

Key specifications

• Fiber type: OM3 multimode 50/125 µm
• Connectors: LC to SC, duplex
• Length: 5 meters
• Jacket color: Aqua
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Attenuation: 3.5 dB/km @ 850 nm, 1.5 dB/km @ 1300 nm
• Supports 10GbE up to 300 m, 40/100GbE up to 100 m
• Operating temperature: -20°C to 70°C
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173-1

Why choose it

OM3 fiber is optimized for laser-based equipment and delivers reliable performance for 10G, 40G, and 100G Ethernet. The LSZH jacket reduces toxic smoke and corrosive gases in case of fire, making it ideal for enclosed spaces with strict safety regulations. The LC connector's small form factor allows high-density patching, while the SC connector provides a secure push-pull connection.

Ideal use cases

• Connecting servers to SAN switches in data centers
• Linking aggregation switches over short to medium distances
• Extending backbone connections between floors in office buildings
• High-speed links in educational or research networks
• Upgrading legacy multimode links to support 10G/40G/100G

Good to know

Each cable is individually tested to ensure low insertion loss and high return loss. The duplex zip-cord design keeps polarity consistent and simplifies cable management. The aqua color instantly identifies OM3 fiber, reducing the risk of mismatched connections.
