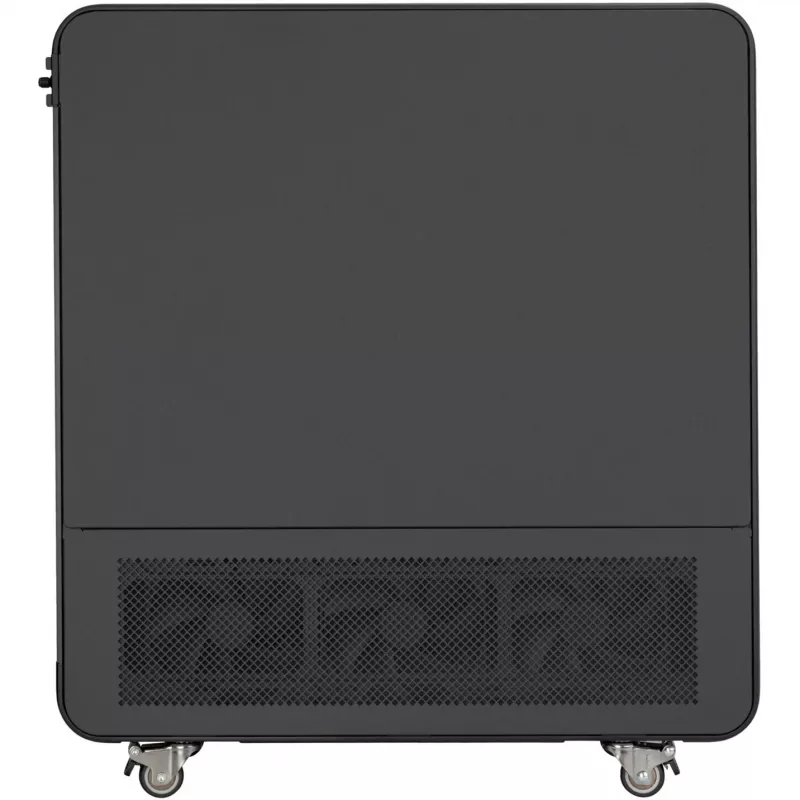

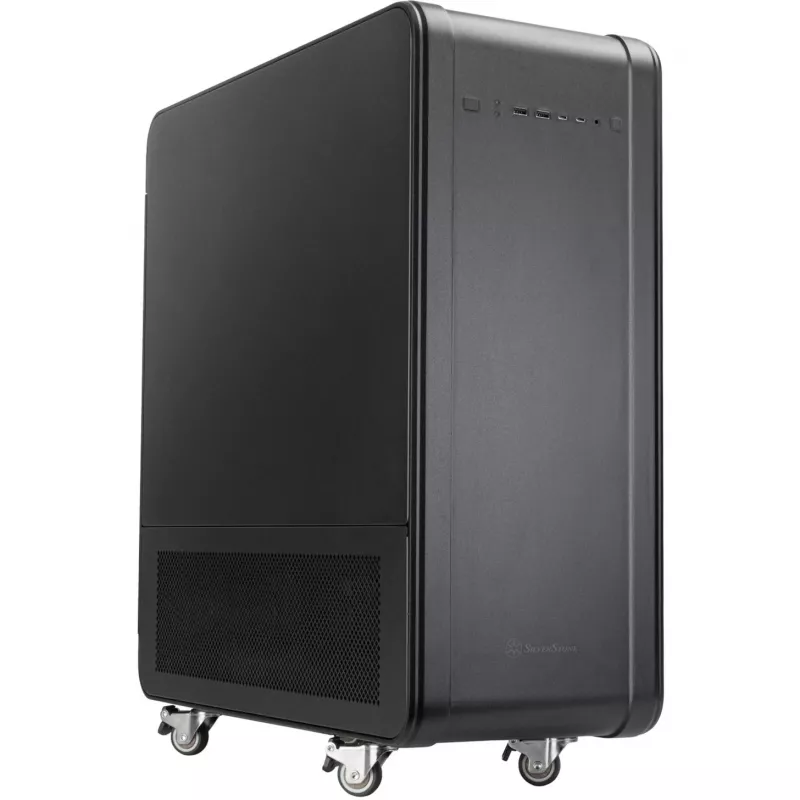

SilverStone Technology ALTA G1M Micro-ATX tower behuizing - zwart, gehard glas, 90° moederbordrotatie, 180mm Air Penetrator ventilator

Rotated 90 degrees, the motherboard in the SilverStone ALTA G1M leverages natural convection for a 'stack effect' that efficiently exhausts heat. A bottom-mounted 180mm Air Penetrator fan pushes cool air upward, while the tempered glass side panel showcases your build in a sleek black chassis.

Overview

The ALTA G1M redefines small form factor cooling. By orienting the motherboard vertically, it creates a direct airflow path from bottom to top, efficiently exhausting heat. The included 180mm fan draws cool air from beneath the case, while top and rear fan mounts allow for additional airflow or liquid cooling radiators. With support for graphics cards up to 350mm and CPU coolers up to 175mm, it accommodates powerful hardware without compromise.

What stands out

• 90-degree motherboard rotation for stack effect cooling
• Pre-installed 180mm Air Penetrator fan for high static pressure
• Tempered glass side panel for a premium view
• Versatile storage options: 1x 3.5" and up to 3x 2.5" drives
• Front I/O with USB Type-C and dual USB 3.0

Technical details

• Case Type: Micro-ATX Tower
• Motherboard Support: Micro-ATX, Mini-DTX, Mini-ITX
• Material: Steel, Tempered Glass
• Color: Black
• Expansion Slots: 5

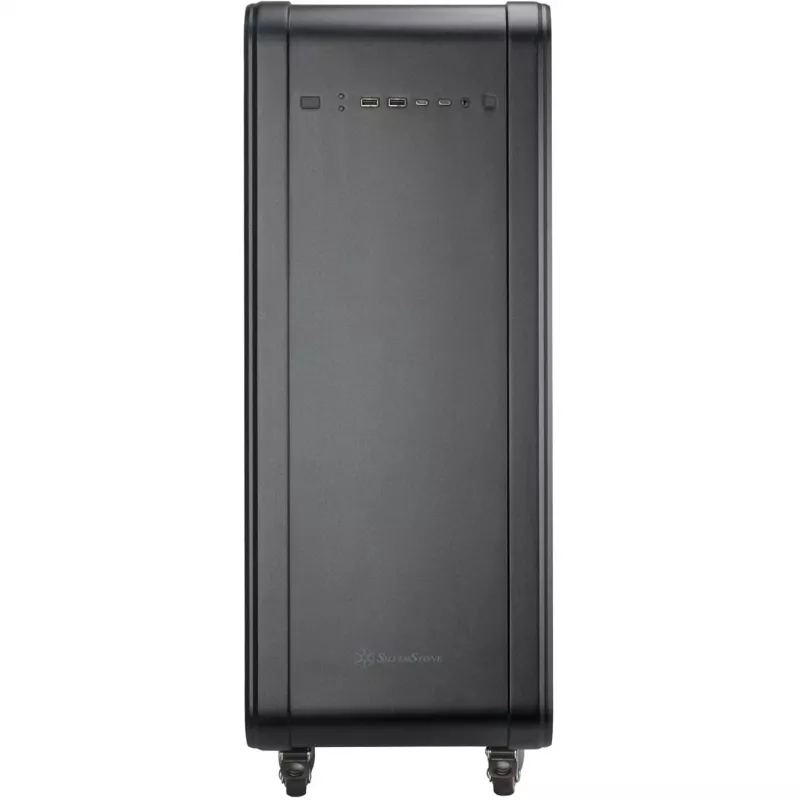

• Front I/O: 1x USB 3.0 Type-C, 2x USB 3.0 Type-A, 1x Audio Combo
• Fan Support: Top: 2x 120/140mm, Bottom: 1x 180mm (included), Rear: 1x 120mm
• Radiator Support: Top: 120/140/240/280mm, Rear: 120mm
• PSU Support: Standard ATX (max 160mm recommended)
• GPU Clearance Length: Up to 350mm
• GPU Clearance Width: Up to 165mm
• CPU Cooler Height: Up to 175mm

Our verdict

The ALTA G1M delivers exceptional thermal performance in a compact Micro-ATX footprint, making it an excellent choice for high-performance small form factor builds.
