Slot-Expander DeLOCK 41370

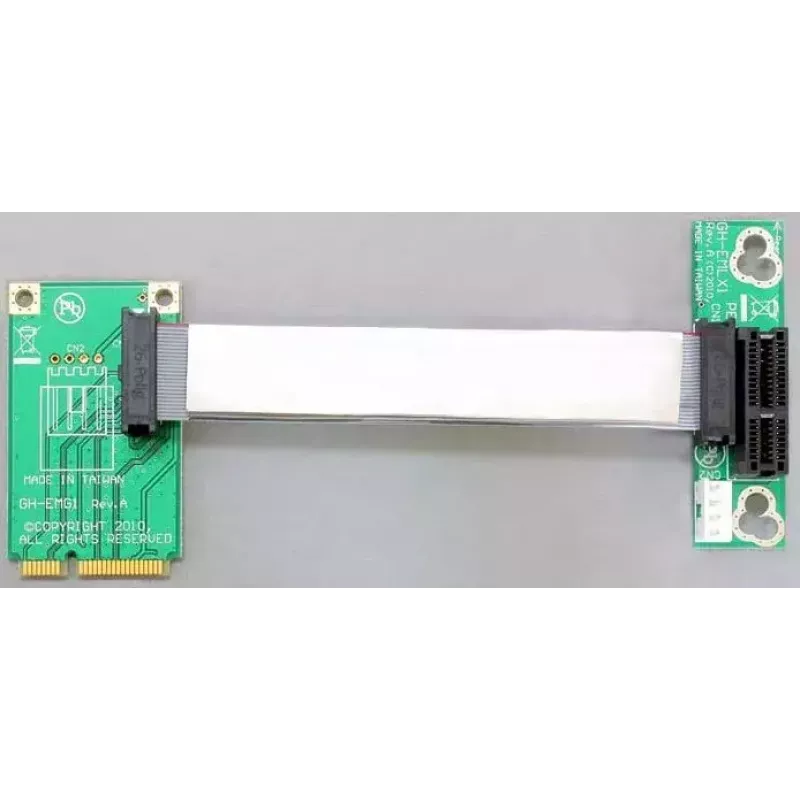

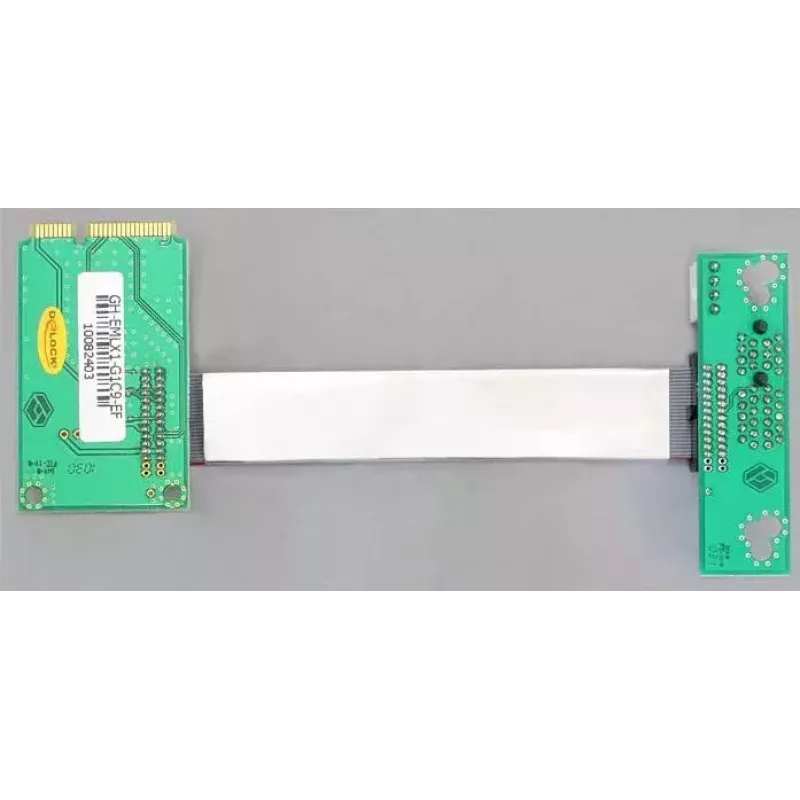

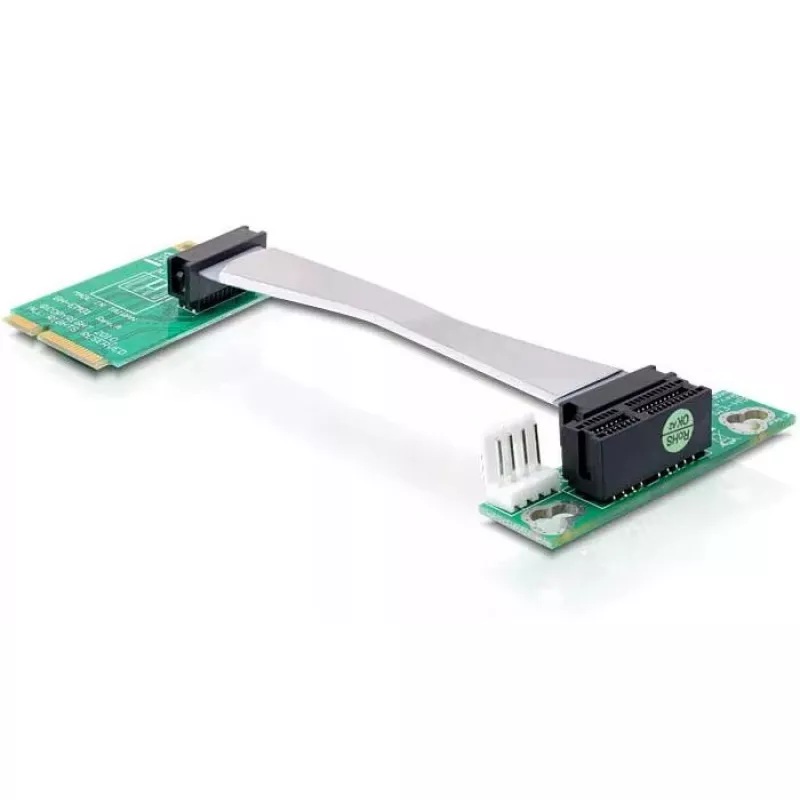

This riser card from DELOCK (model 41370) lets you connect a standard PCI Express x1 card to a motherboard mini PCI Express slot. The product includes a 13 cm flexible cable and a 4-pin floppy power connector, enabling installation in compact or space-constrained PC cases.

Advantages

The flexible 13 cm cable provides freedom of placement inside the case while maintaining signal integrity for PCI Express x1 connections. A dedicated 4-pin floppy power connector supplies additional power when required. The left insertion design matches mini PCI Express slots with specific orientation to ensure proper fit.

Suitable for

• Adding a PCI Express x1 card when only a mini PCIe slot is available
• Small form-factor or cramped PC cases where direct card installation is impractical
• Upgrading systems that need additional connectivity through PCIe x1 expansion cards

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 41370
• EAN: 4043619413706
• Connector: Mini PCI Express (female) to PCI Express x1 (male)
• Cable length: 13 cm (flexible)
• Insertion orientation: left insertion
• Additional power: 4-pin Floppy power connector

How to use

Power off the system and unplug it from the mains. Insert the mini PCI Express connector into the motherboard slot following the left insertion orientation. Mount the PCI Express x1 card into the riser’s PCIe x1 slot and secure it in the case if applicable. Connect the 4-pin Floppy power connector to a compatible power supply cable if the card requires additional power. Reconnect power and boot the system; install drivers for the installed PCIe card as needed.

Recommendations

Use the riser in environments with sufficient airflow and avoid bending the flexible cable sharply. Verify card compatibility with PCI Express x1 specifications and ensure the power connector matches your power supply before installation.
