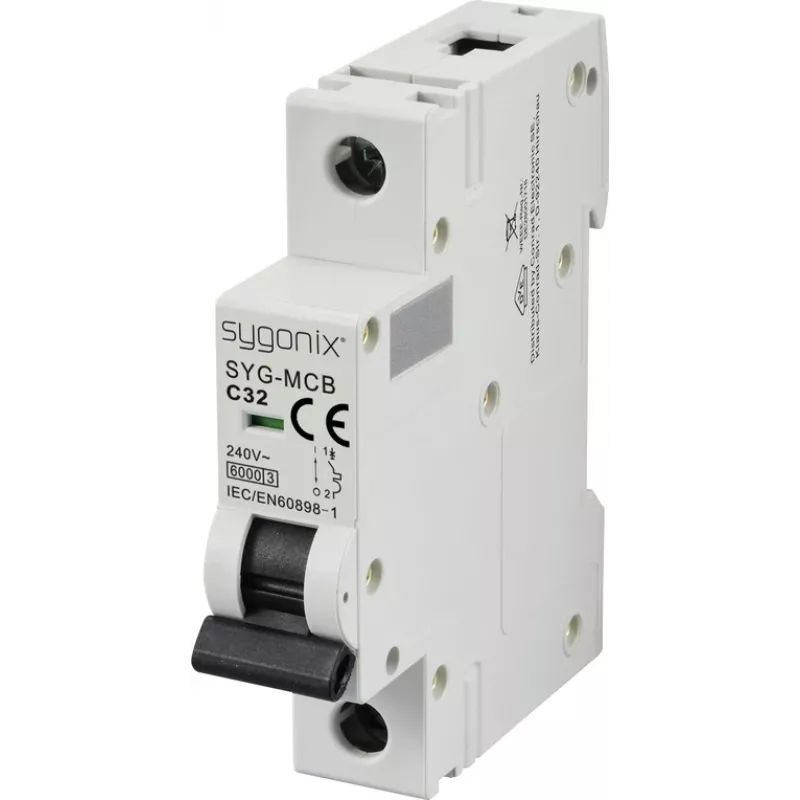

Sygonix SY-6440988 SYG-MCB 1P C32 6kA installatieautomaat 32 A 240 V AC

The Sygonix SY-6440988 is a 1-pole miniature circuit breaker (MCB) with a rated current of 32 A and C tripping characteristic, providing reliable protection against overloads and short circuits in electrical installations. Its 6 kA breaking capacity ensures safe interruption of high fault currents.

Advantages

Compact DIN rail mounting (35 mm) allows quick installation in distribution boards. Screw terminals accept solid conductors up to 25 mm² and stranded up to 16 mm², ensuring secure connections. The C characteristic handles moderate inrush currents, making it suitable for general-purpose circuits.

Suitable for

• Protection of socket outlets and lighting circuits in residential and commercial buildings
• Use in distribution boards and consumer units
• Circuits with moderate inrush currents, such as small motors or lighting banks

Key specifications

• Rated current: 32 A
• Number of poles: 1
• Tripping characteristic: C
• Rated voltage: 240 V AC
• Breaking capacity: 6 kA
• Frequency: 50/60 Hz
• Mounting: DIN rail 35 mm
• Terminal capacity: 1–25 mm² (solid), 1–16 mm² (stranded)
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Operating temperature: -25 °C to +55 °C

Recommendations

For reliable circuit protection in standard electrical installations, the Sygonix SY-6440988 offers a balance of performance and ease of installation.
