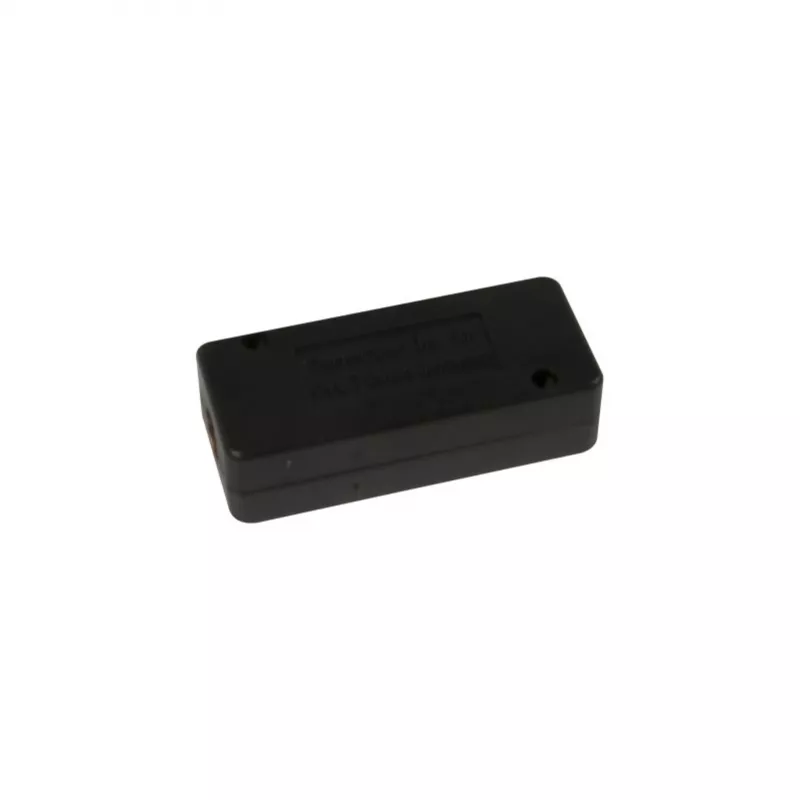

Synergy 21 LSA+ aansluitmodule CAT7 LSA/LSA tot 800 MHz - kabel - netwerk - Cat7 - zwart

The Synergy 21 LSA+ Connection Module CAT7 is a high-performance shielded connection module designed for extending or connecting Category 7 network cables in distribution boxes, patch panels, and structured cabling systems. It supports frequencies up to 800 MHz and is fully compatible with 10 Gigabit Ethernet (10GBASE-T) and Power over Ethernet (PoE, PoE+, 4PPoE). The module features LSA+ insulation displacement connectors on both input and output, ensuring reliable and tool-free termination with an LSA+ insertion tool (Krone tool).

Advantages

This connection module maintains the integrity of S/FTP or F/FTP shielded cabling, providing excellent electromagnetic interference (EMI) protection. Its color-coded wiring supports TIA/EIA 568A and 568B standards, simplifying installation. The compact plastic (ABS) housing is durable and suitable for use in various environments.

Suitable for

• Extending shielded CAT7 network cables in data centers and server rooms
• Connecting cables in distribution boxes and patch panels
• Structured cabling systems requiring high bandwidth and PoE support

Key specifications

• Product Type: Connection Module
• Cable Category: CAT7 (Category 7)
• Frequency Bandwidth: Up to 800 MHz
• Connector Type (Input): LSA+ (Insulation Displacement Connector)
• Connector Type (Output): LSA+ (Insulation Displacement Connector)
• Wiring Standard: TIA/EIA 568A/B (Color-coded)
• Number of Conductors: 8 (4 twisted pairs)
• Shielding: Fully Shielded (maintains S/FTP or F/FTP integrity)
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• PoE Support: Yes (PoE, PoE+, 4PPoE compatible)
• Housing Material: Plastic (ABS)
• Color: Black
• Contact Material: Phosphor Bronze with Gold Plating
• Installation Tool Required: LSA+ Insertion Tool (Krone Tool)
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating Temperature: -10°C to +60°C
• Dielectric Strength: 1000V AC
• Insulation Resistance: >500 MΩ

Recommendations

For optimal performance, use with CAT7 shielded cables and an LSA+ insertion tool. Ensure proper grounding to maintain shielding effectiveness.
