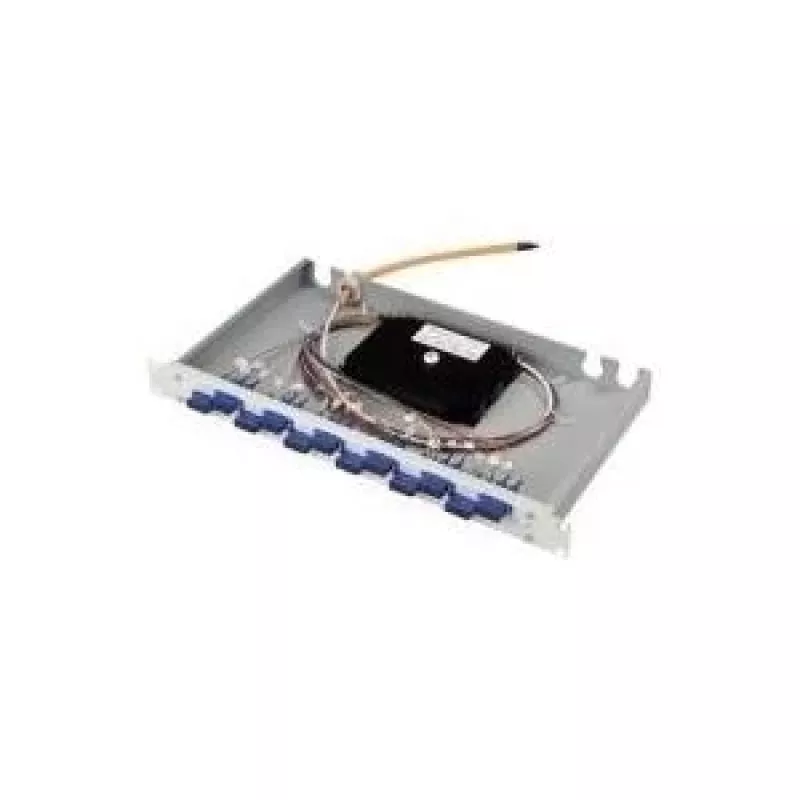

TELEGÄRTNER 19 inch 1U glasvezel-patchpanel eco, 12x ST duplex-koppelingen, 12x ST pigtails, OM2 50/125 multimode, voorgemonteerd, rackmontage, zwart H02030B9000

This TELEGÄRTNER patch panel stands out by arriving pre-assembled with 12 ST duplex couplers and 12 ST pigtails already installed, eliminating field termination work and speeding up deployment in data centers and LAN environments. The 19-inch, 1U steel housing fits standard racks and keeps 50/125 µm OM2 multimode connections organized.

Highlights

• Pre-assembled with 12 ST duplex couplers and 12 ST pigtails
• Supports 50/125 µm OM2 multimode fiber
• 19-inch rack mount, 1U height, powder-coated steel housing
• 12 ports for high-density fiber patching

In daily use

Mount the panel in a standard 19-inch rack and connect incoming fiber trunks to the rear pigtails. The front ST duplex couplers provide a clean patching field for equipment links. The steel construction withstands frequent moves, adds, and changes while maintaining stable optical performance.

Full specifications

• Product type: Fiber optic patch panel
• Rack size: 19 inch (48.3 cm)
• Height units: 1U
• Number of ports: 12
• Panel connector type: ST duplex
• Pigtail connector type: ST
• Fiber type: Multimode
• Fiber class: OM2
• Fiber core/cladding diameter: 50/125 µm
• Number of couplers: 12
• Number of pigtails: 12
• Pigtail fiber type: 50/125 µm OM2 multimode
• Assembly: Pre-assembled with couplers and pigtails
• Mounting type: Rack mount
• Housing material: Steel (powder-coated)
• Application: Data centers, LAN, telecommunications
• Operating temperature: -10°C to +60°C

Final note

A practical, pre-terminated solution for structured fiber cabling in enterprise networks.
