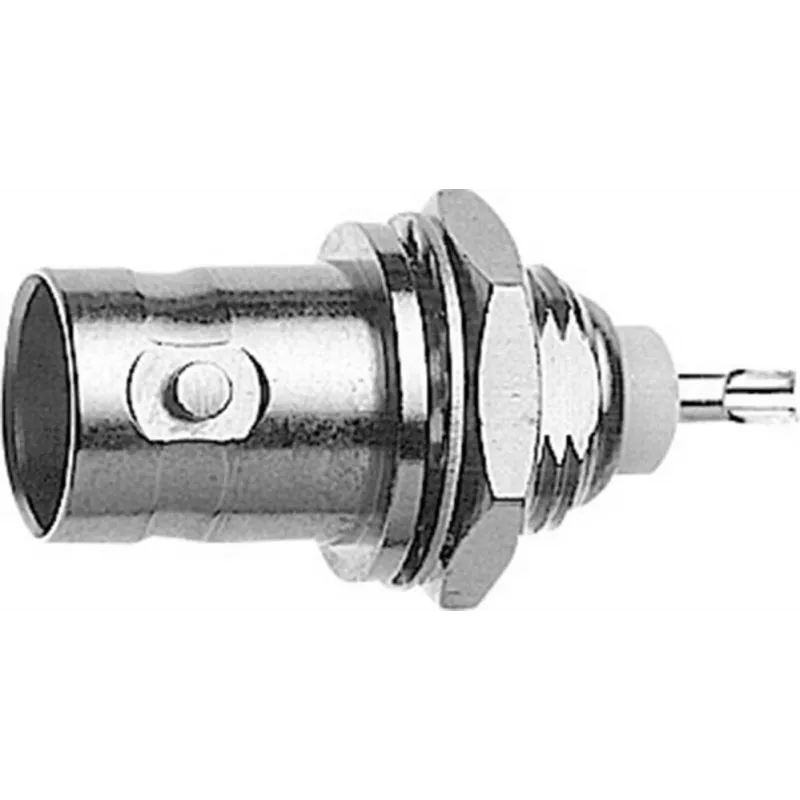

Telegärtner BNC-inbouwkop 75 Ohm, Z01 (31x12,5mm), 5-pack J01003A1218

This BNC panel mount jack provides a reliable 75 Ohm connection for coaxial cables in professional installations. The solder termination and nickel-plated brass body ensure durable performance, while the gold-plated center contact maintains signal integrity.

Advantages

Precision-machined PTFE insulator supports frequencies up to 1 GHz with low VSWR. The compact Z01 flange design fits standard 12.7 mm panel cutouts and accepts panels up to 4.5 mm thick.

Suitable for

• Broadcast and video equipment
• Telecommunications infrastructure
• Test and measurement setups

Key specifications

• Connector type: BNC jack (female)
• Impedance: 75 Ohm
• Mounting: panel mount, flange 31 x 12.5 mm
• Termination: solder
• Body material: brass, nickel plated
• Contact plating: gold
• Insulator: PTFE
• Frequency range: DC to 1 GHz
• VSWR: < 1.2 at 1 GHz
• Dielectric withstanding voltage: 1500 Vrms
• Insulation resistance: > 5 GΩ
• Operating temperature: -40°C to +85°C
• Pack size: 5 pieces

Recommendations

Ideal for technicians who need a dependable bulkhead jack for 75 Ohm BNC terminations in tight spaces.
