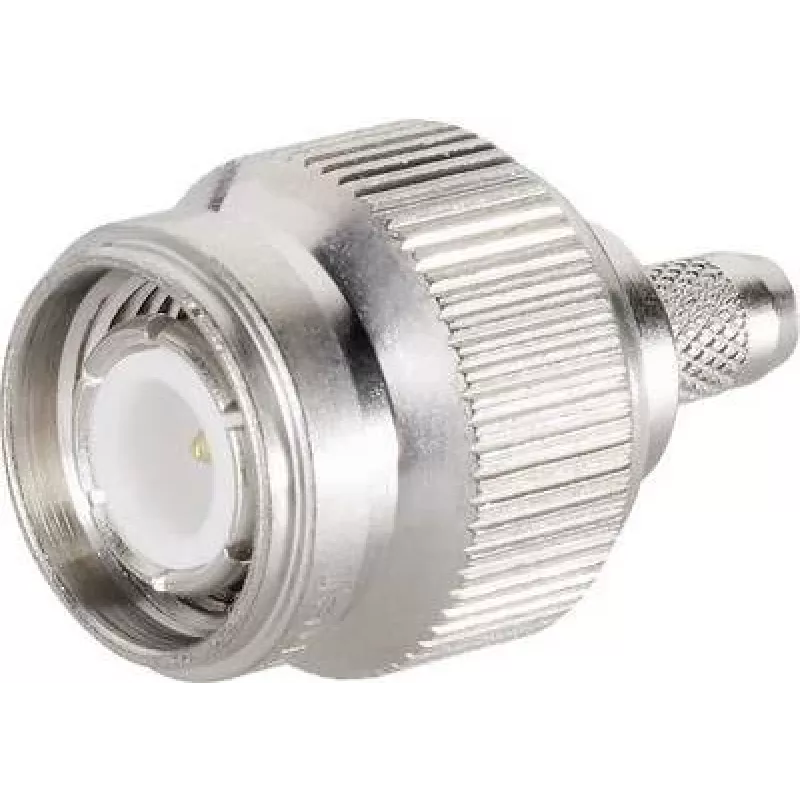

Telegärtner TNC crimpstekker voor RG-223/U, 50 Ohm, Professional G5 J01010A2256

Coaxial TNC plug (male) for RG-223/U cable, 50 Ohm impedance, crimp termination, straight body, nickel-plated brass, gold-plated contacts, PTFE insulator, DC to 11 GHz.

Advantages

Professional G5 series connector with excellent electrical performance up to 11 GHz and high durability (500 mating cycles).

Suitable for

• RF connections in telecommunications, test equipment, and industrial applications using RG-223/U cable.

Key specifications

• Connector type: TNC plug (male)
• Impedance: 50 Ohm
• Cable group: RG-223/U
• Termination: crimp (outer and center conductor)
• Body: straight, nickel-plated brass
• Contact: gold-plated brass/beryllium copper
• Insulator: PTFE
• Frequency range: DC to 11 GHz
• VSWR: ≤ 1.3 @ 6 GHz
• Dielectric withstanding voltage: 1500 Veff
• Insulation resistance: ≥ 5 GΩ
• Operating temperature: -55 °C to +155 °C
• Durability: 500 mating cycles
• Series: Professional G5
• RoHS compliant

Recommendations

For reliable RF connections with RG-223/U cable in professional environments.
