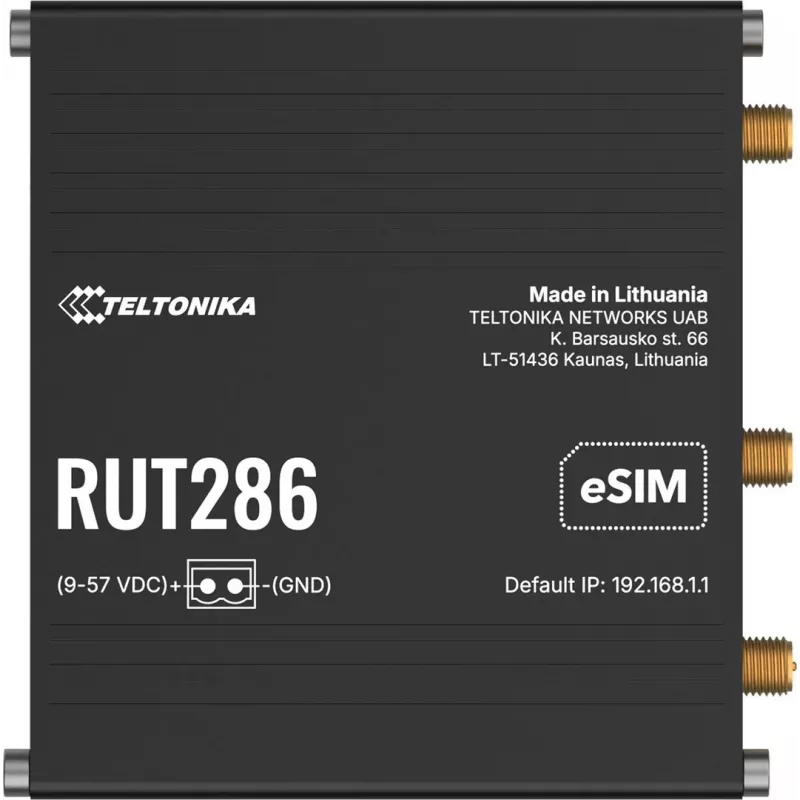

Teltonika RUT286 4G/LTE/3G RS232 RS485 Global POE industriële router

The Teltonika RUT286 is a robust industrial 4G/LTE router designed for reliable connectivity in demanding environments. With support for 4G LTE Cat 4, 3G, and 2G networks, it ensures high-speed mobile communication with download speeds up to 150 Mbps and upload speeds up to 50 Mbps. Equipped with two Ethernet ports (one configurable WAN/LAN), RS232 and RS485 serial interfaces, and a wide power input range of 9-30 VDC, this router is ideal for M2M, IoT, and industrial automation applications.

Advantages

The RUT286 offers exceptional flexibility with its dual serial ports (RS232 and RS485), enabling seamless integration with legacy industrial equipment. Its support for Power over Ethernet (PoE) simplifies installation by allowing power and data over a single cable. The router runs on RutOS, a Linux-based operating system, providing advanced networking features such as VPN support (OpenVPN, IPsec, GRE, PPTP, L2TP, SSTP, WireGuard, ZeroTier, Tinc) and remote management via Teltonika RMS. The rugged aluminium casing and wide operating temperature range (-40°C to 75°C) make it suitable for outdoor and harsh industrial environments.

Suitable for

• Industrial automation and control systems
• Remote monitoring and telemetry
• Smart grid and energy management
• Transportation and logistics
• Security and surveillance

Key specifications

• Mobile connectivity: 4G LTE Cat 4, 3G, 2G
• Max LTE speed: 150 Mbps download / 50 Mbps upload
• Ethernet ports: 2 x RJ45 (1x WAN/LAN configurable, 1x LAN)
• Serial ports: 1 x RS232, 1 x RS485
• SIM slot: 1 x Mini SIM (2FF)
• Antenna connectors: 2 x SMA for LTE
• Processor: MIPS 24Kc 400 MHz
• RAM: 128 MB DDR2
• Flash storage: 16 MB SPI Flash
• Operating system: RutOS (OpenWrt based)
• VPN support: OpenVPN, IPsec, GRE, PPTP, L2TP, SSTP, WireGuard, ZeroTier, Tinc
• Remote management: Teltonika RMS
• Digital I/O: 1 x Digital Input, 1 x Digital Output
• Power input: 9-30 VDC (4-pin industrial DC socket)
• Power consumption: Max 6.5 W
• Operating temperature: -40°C to 75°C
• Mounting: DIN rail, wall mount
• Casing: Aluminium

Recommendations

For optimal performance, use high-gain LTE antennas and ensure proper grounding. The router supports PoE (Power over Ethernet) for simplified installation. For advanced configuration and monitoring, leverage the Teltonika Remote Management System (RMS).
