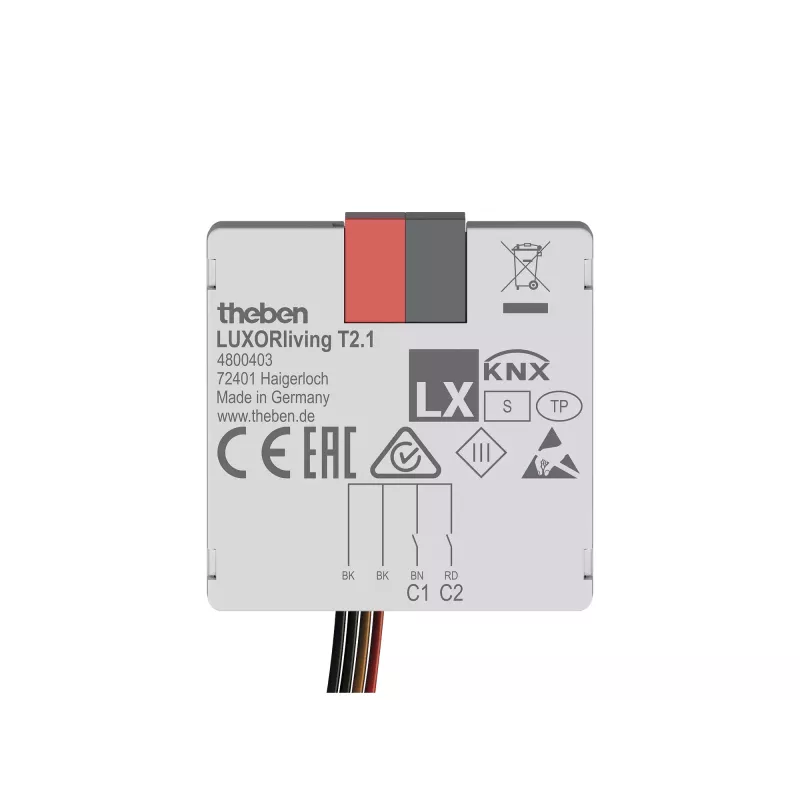

Theben LUXORliving T2.1 tastersinterface 2-kanaals inbouw 4800403

Integrating conventional push-buttons or switches into a LUXORliving smart home system can be challenging without a dedicated interface. The Theben LUXORliving T2.1 Push-button Interface solves this by providing two potential-free inputs for connecting standard switches or push-buttons, enabling them to control lighting, blinds, scenes, and more within the LUXORliving bus system.

Who is it for

This interface is ideal for electricians and smart home installers who need to incorporate existing mechanical push-buttons or switches into a Theben LUXORliving installation, or for homeowners looking to expand their system with additional control points.

Main features

• Two independent inputs for potential-free contacts
• Flush-mounted design fits in standard switch boxes
• Powered directly from the LUXORliving bus (29-31 V DC)
• Compact installation depth of approximately 12 mm
• Status LED for bus communication
• Configurable via LUXORliving app

Specifications

• Product type: Push-button Interface / Binary Input
• Number of inputs: 2
• Input type: Potential-free contacts
• Mounting type: Flush-mounted
• Bus system: LUXORliving Bus (based on KNX)
• Supply voltage: 29-31 V DC via bus
• Current consumption: < 5 mA
• Bus connection: 2-pin bus terminal
• Input connection: Screw terminals
• Max. input cable length: 10 m
• Operating temperature: -5 °C to +45 °C
• Protection class: IP20
• Housing material: Plastic
• Installation depth: Approx. 12 mm
• Configuration: LUXORliving App
• Supported functions: Switching, Dimming, Blinds, Scenes, Value Transmitter, Sequence, Timer

Tips

When installing, ensure the bus voltage is disconnected. The interface can be mounted in a deep switch box, and the inputs can be extended up to 10 meters using standard installation cable.
