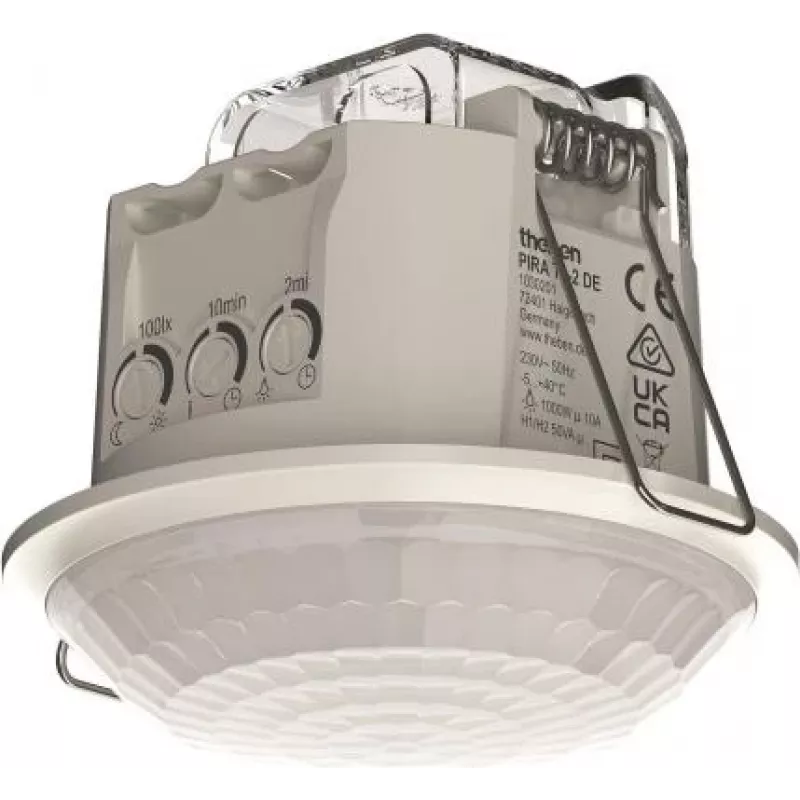

THEBEN THE PIRA T8-2 DE PIR plafondmelder 360° 8m wit

The THEBEN THE PIRA T8-2 DE is a ceiling-mounted passive infrared motion detector engineered for reliable presence detection in commercial and residential spaces. Unlike typical wall units, its round 360° detection area covers a full room circle from a single overhead point, making it ideal for corridors, offices, and open-plan areas where even coverage is essential.

Highlights

• 360° round detection area with up to 8 m diameter at a 2.5 m mounting height
• Flush ceiling mounting for discreet integration
• Switches resistive loads up to 2300 W and LED loads up to 600 W
• Adjustable time delay from 10 seconds to 30 minutes
• Adjustable brightness threshold from 5 to 2000 lux
• IP54 protection and UV-stabilised polycarbonate housing

In daily use

The PIRA T8-2 DE automatically controls lighting based on presence and ambient brightness. Once installed at the recommended height of 2.0 to 4.0 metres (optimum 2.5 metres), it reliably detects movement in the entire 360° field. A rotary knob for the time setting and a separate one for the brightness threshold allow quick adjustment without opening the unit. The device can handle almost any lighting load, including modern LED retrofits, and its 0.5 W standby consumption keeps energy costs low.

Full specifications

• Sensor type: Passive infrared (PIR)
• Mounting: ceiling flush
• Detection angle: 360°
• Detection range: up to 8 m diameter (at 2.5 m mounting height)
• Recommended mounting height: 2.0 – 4.0 m, optimum 2.5 m
• Operating voltage: 230 V AC, 50/60 Hz
• Switching capacity: resistive 2300 W, LED 600 W
• Time setting: 10 s – 30 min
• Brightness setting: 5 – 2000 lux
• Protection class: IP54
• Power consumption: approx. 0.5 W
• Ambient temperature: -15 °C to +50 °C
• Colour: white (RAL 9010)
• Material: UV-stabilised polycarbonate

Final note

The THE PIRA T8-2 DE combines robust switching performance with a compact, ceiling-mounted design. Its simple two-knob configuration and broad detection field make it a sensible choice for effortless lighting automation in any room.
