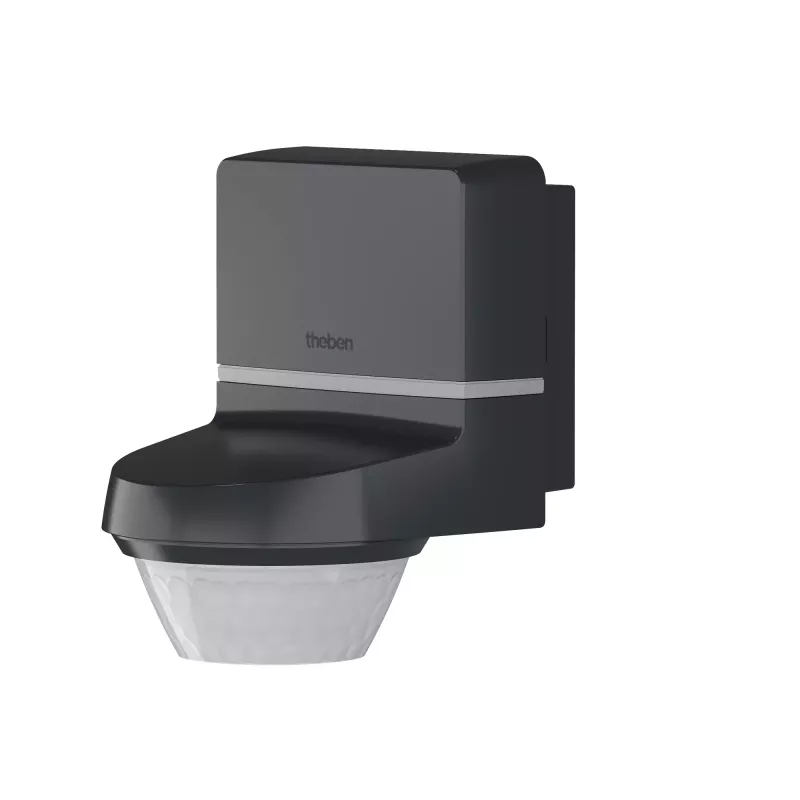

Theben TECTA D280i AN bewegingsmelder wandmontage 280° 24 m 1010111

Large outdoor areas often remain unlit until someone steps into them, creating security risks and inconvenience. The Theben TECTA D280i AN motion detector solves this by automatically switching lights when movement is detected across a wide 280° angle and up to 24 m range.

Who is it for

Facility managers, electricians, and homeowners who need reliable, weather-resistant motion detection for building exteriors, driveways, or loading zones. Its dual-channel design suits both direct light switching and integration with HVAC or alarm systems.

Main features

• 280° detection angle and 24 m range at 2.5 m mounting height
• Wall mounting, recommended installation height 2–4 m
• Two channels: one for light (2300 W incandescent/halogen, 600 W LED) and one potential-free contact (3 A AC1)
• Adjustable time setting 10 s – 60 min and twilight threshold 5–2000 lux
• IP54 protection, UV-stabilised polycarbonate housing, white (RAL 9010)
• Low standby consumption under 0.5 W

Specifications

• Sensor type: Passive Infrared (PIR)
• Power supply: 230 V AC, 50 Hz
• Operating temperature: -25 °C to +50 °C
• Max. inrush current: 10 A / 5 ms

Tips

Mount at 2.5 m for maximum coverage. Adjust the twilight setting to avoid daytime activation and use the potential-free contact for building automation systems.
