Tiandy TC-R3440 4MB 40-kanaals IP NVR met AI

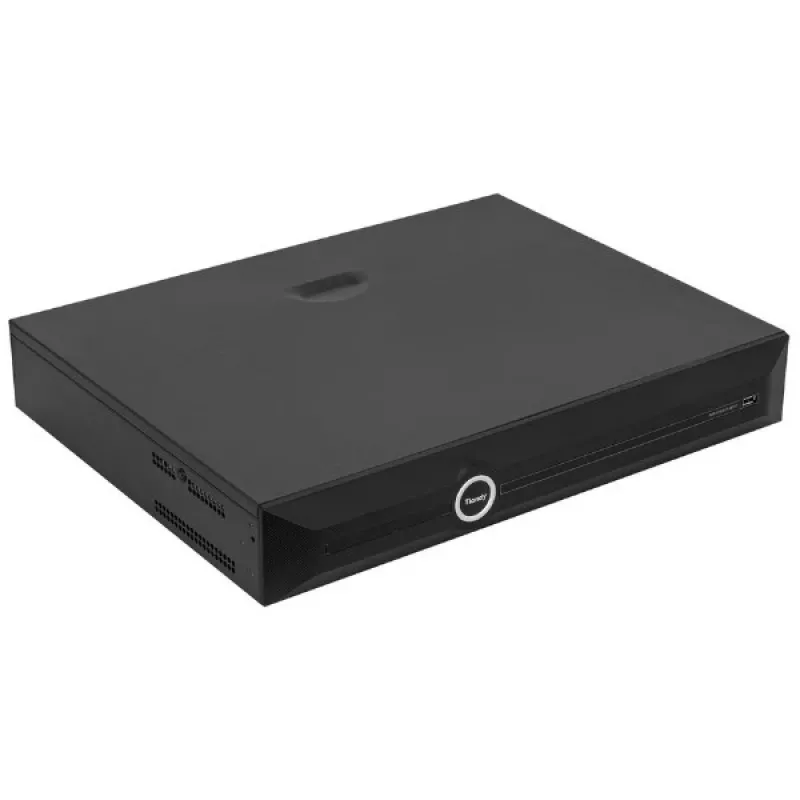

The Tiandy TC-R3440 4MB is a high-performance 40-channel IP network video recorder designed for professional surveillance systems. With advanced AI capabilities including face detection, perimeter protection, and human/vehicle classification, this NVR delivers intelligent monitoring and efficient storage management. Supporting up to 12MP resolution and H.265+ compression, it ensures crystal-clear video while saving bandwidth and storage space.

Advantages

Equipped with 4 SATA ports supporting up to 10TB each, the TC-R3440 offers massive storage capacity for long-term recording. Its 1.5U rackmount form factor fits seamlessly into server racks, and dual Gigabit Ethernet ports provide network redundancy or load balancing. The built-in AI analytics reduce false alarms and enhance security response.

Suitable for

• Medium to large retail stores and shopping malls
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions and hospitals
• Parking lots and public spaces

Key specifications

• Video Input: 40 IP channels
• Max Recording Resolution: 12MP (4K)
• Incoming/Outgoing Bandwidth: 320/200 Mbps
• Video Compression: H.265+, H.265, H.264
• Decoding: 2-ch@12MP (30fps), 4-ch@8MP (30fps), 8-ch@4MP (30fps), 16-ch@1080P (30fps)
• AI Features: Face detection, perimeter protection, human/vehicle classification
• HDD Interface: 4 SATA, up to 10TB each
• Video Output: 1x HDMI (up to 4K), 1x VGA (up to 1080P)
• Audio: 1x RCA in, 1x RCA out
• Alarm: 16 in / 4 out
• Network: 2x RJ45 10/100/1000 Mbps
• USB: 1x USB 2.0, 1x USB 3.0
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: -10°C to 55°C
• Form Factor: 1.5U rackmount

Recommendations

For optimal performance, use Tiandy certified hard drives and ensure proper ventilation in the rack. The NVR is compatible with Tiandy IP cameras and supports ONVIF for third-party integration.
