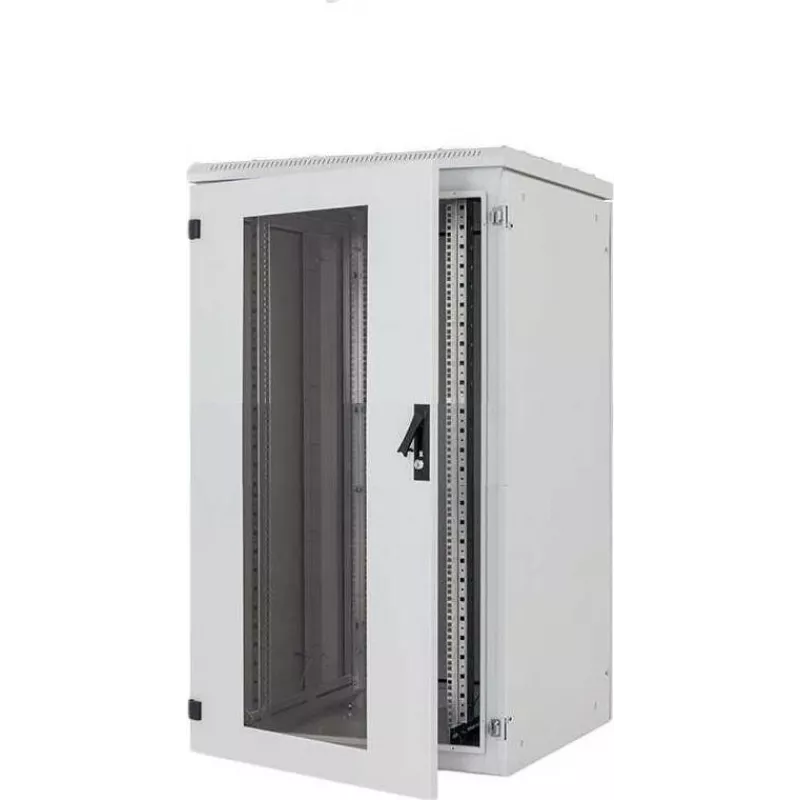

TRITON RIE 22U IP54 serverkast 800x1000 mm lichtgrijs RIE-22-A81-CCX-N1

For environments where dust and moisture threaten standard racks, the TRITON RIE-22-A81-CCX-N1 delivers a sealed, IP54-rated enclosure without sacrificing accessibility. Its 22U capacity and 800×1000 mm footprint accommodate deep servers and networking gear, while the safety glass front door and lockable steel panels keep hardware secure and visible.

Highlights

• IP54 protection against dust and water splashes
• 22U of 19-inch mounting space with adjustable rails
• Safety glass front door for clear equipment monitoring
• Lockable, removable side panels for easy maintenance
• 1000 kg static load capacity for heavy equipment
• Passive ventilation with fan-ready design

In daily use

The RIE series cabinet simplifies installation and upkeep. Brush strips at top and bottom cable entries keep dust out while allowing clean cable routing. The cylinder lock on doors and side panels deters unauthorized access, and the light grey RAL 7035 finish blends into office or industrial settings. Removable side panels provide full access to installed equipment, reducing service time.

Full specifications

• Rack type: Server cabinet, 19-inch standard
• Rack units: 22U
• External dimensions (W×D×H): 800 × 1000 × 1166 mm
• Protection rating: IP54
• Material: Steel sheet
• Colour: Light grey (RAL 7035)
• Front door: Safety glass, lockable
• Rear panel: Solid steel, lockable
• Side panels: Removable, lockable
• Mounting rails: 2 pairs, adjustable depth
• Static load capacity: 1000 kg
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, fan unit ready
• Compliance: IEC 60297-3-100, IEC 60917-2-1

Final note

When uptime depends on protecting equipment from environmental hazards, the TRITON RIE-22-A81-CCX-N1 provides a robust, secure, and serviceable enclosure that meets the demands of industrial and edge deployments.
