TV-muurbeugel Schwaiger LWH14225 513 zwart

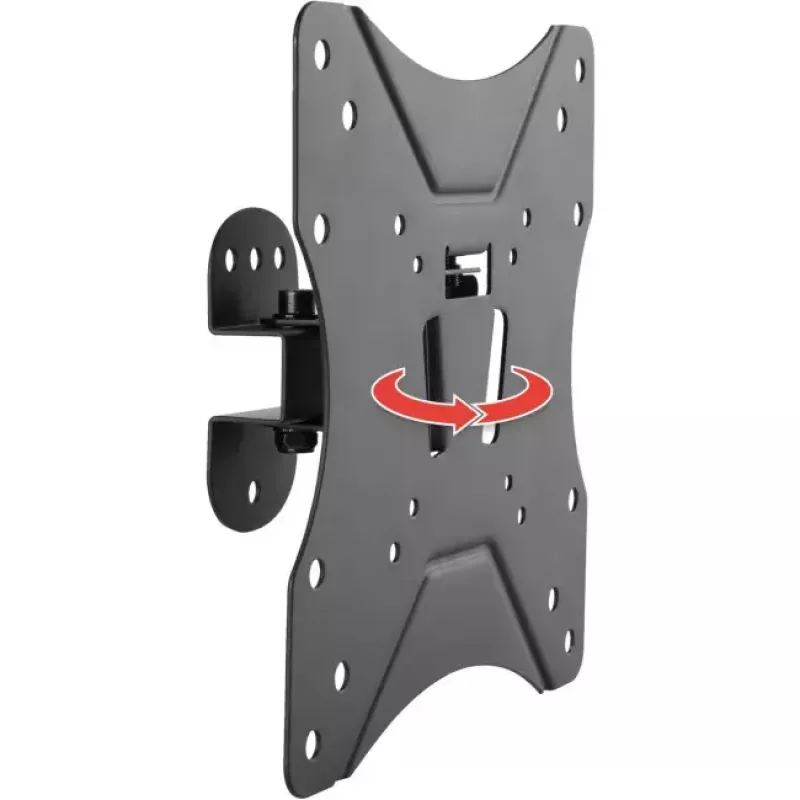

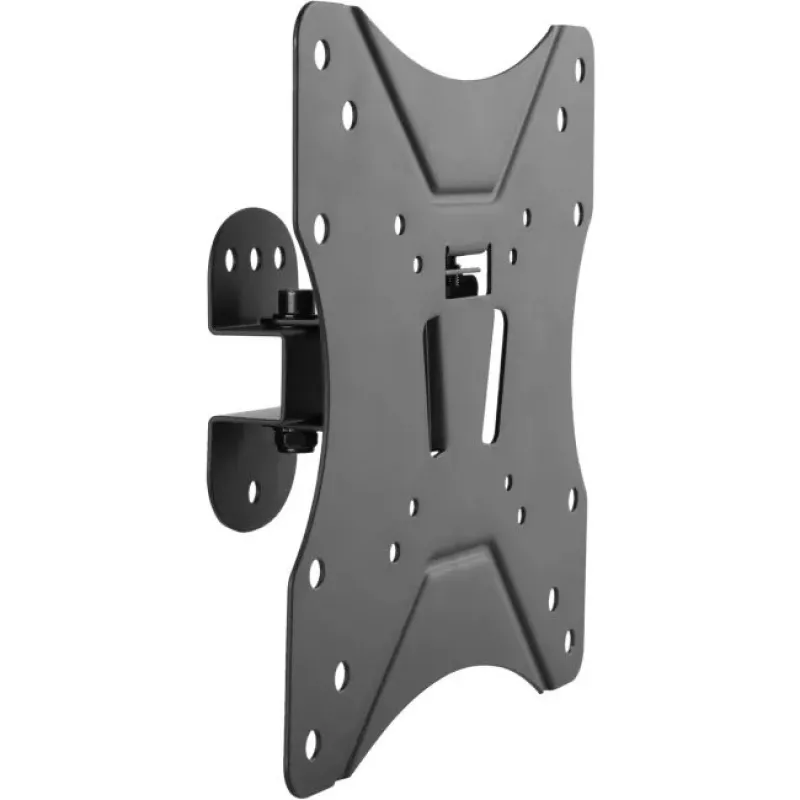

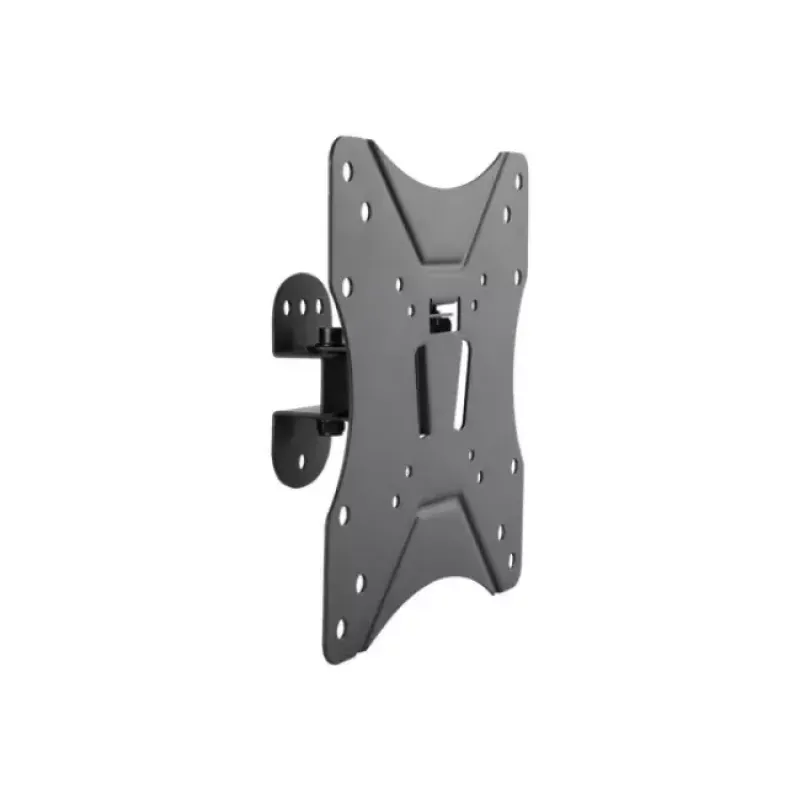

The SCHWAIGER LWH14225 513 TV wall mount is a single-hinge bracket designed for mounting one monitor or flat-screen TV. It supports VESA patterns from 75 x 75 mm up to 200 x 200 mm and a maximum load of 25 kg. The mount has a slim black finish suitable for home or office installations.

Advantages

The mount allows tilting forward between 7.5° and -7.5° and swivelling left or right up to 25° in each direction. The hinge tension can be adjusted easily to tighten or loosen the movement. At 1.1 kg, the bracket is lightweight while providing stable support for a single display.

Suitable for

• Installing a single flat-screen TV or monitor (VESA 75 x 75 to 200 x 200)
• Small living rooms, bedrooms or home office setups
• Commercial spaces where a compact, adjustable mount is required

Key specifications

• Brand: SCHWAIGER
• Model: LWH14225 513 (MPN: LWH14225513, EAN: 4004005011579)

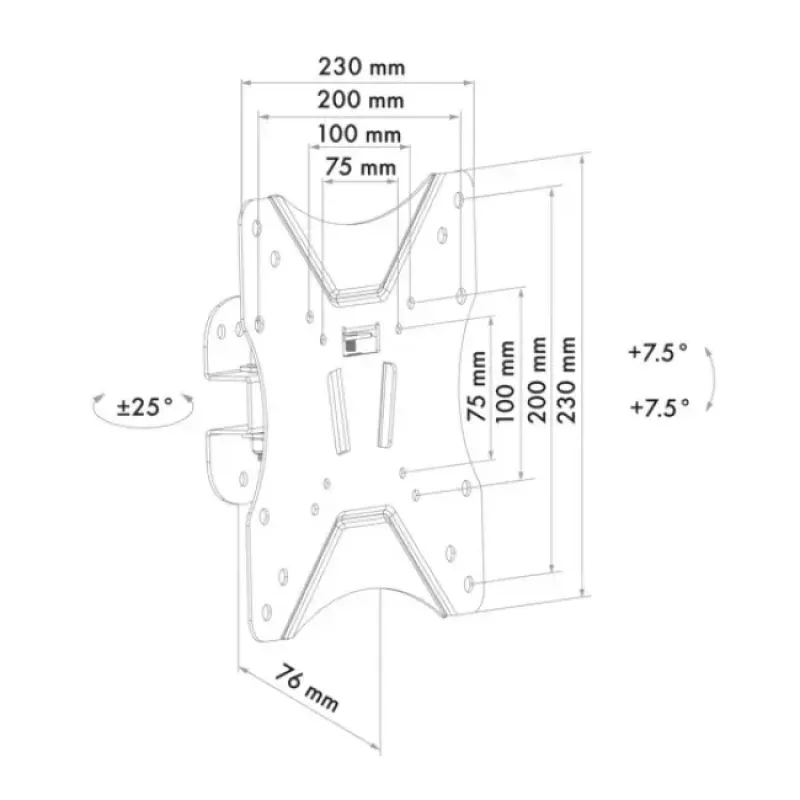

• Maximum VESA mount: 200 x 200 mm
• Maximum weight capacity: 25 kg
• Tilt range: 7.5° to -7.5°
• Swivel range: 25° to -25°
• Weight: 1.1 kg
• Colour: Black
• Number of displays supported: 1

How to use

Mount the bracket to a suitable wall surface following the VESA pattern of your display and using appropriate screws and anchors for your wall type. Attach the display to the bracket with the corresponding VESA holes and secure all fasteners. Adjust tilt and swivel to the desired viewing angle, and modify the hinge tension if necessary to set the display movement resistance.

Recommendations

Ensure the wall and fixings can safely support the combined weight of the mount and display (up to 25 kg). Use correct mounting hardware for the wall material and verify the TV’s VESA pattern matches the mount before installation.
