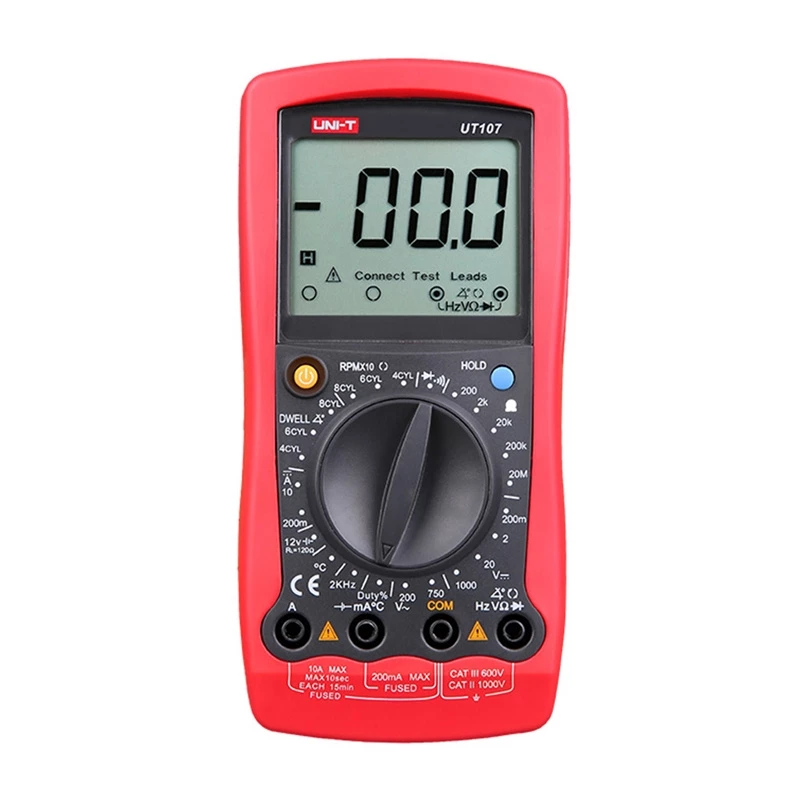

UNI-T UT107 Handmatige automotive multimeter

The UNI-T UT107 is a handheld digital multimeter designed for automotive workshops and vehicle electrical diagnostics. It measures DC voltage from 200 mV to 1000 V, AC voltage up to 750 V, DC current up to 10 A, and resistance from 200 Ω to 20 MΩ. Additional functions include a 12 V battery test, duty cycle measurement from 1% to 90%, Dwell/Tach for 4-, 6- and 8-cylinder engines, temperature measurement from -40°C to 1000°C, and frequency measurement up to 2 kHz.

Key features

• Handheld digital multimeter for automotive diagnostics
• DC voltage: 200 mV to 1000 V
• AC voltage: up to 750 V
• DC current: up to 10 A
• Resistance: 200 Ω to 20 MΩ
• 12 V battery test
• Duty cycle: 1% to 90%
• Dwell/Tach for 4-, 6- and 8-cylinder engines
• Temperature measurement: -40°C to 1000°C
• Frequency measurement: up to 2 kHz

Specifications

• Brand: Uni-T
• Model: UT107
• DC voltage measurement range: 200mV/2V/20V/1000V ±(0.5%+2)
• AC voltage measurement range: 200V/750V ±(0.8%+5); 200mA/10A ±(0.8%+5)
• Resistance: 200Ω/2kΩ/20kΩ/200kΩ/20MΩ ±(0.8%+5)
• Frequency: 2 kHz ±(2%+5)
• Temperature: -40°C~1000°C ±(2%+8)
• Battery test: 12 V ±(3%+5)
• Duty cycle: 1~90% ±(4%+5)
• Input impedance for DCV: approx. 10MΩ
• Dwell/Tach: 4CYL/6CYL/8CYL ±(3%+5)
• Power supply: 9V battery (6F22)
• Display size: 60 x 54 mm
• Weight (with holster): 351 g
• Dimensions: 179 x 88 x 39 mm
