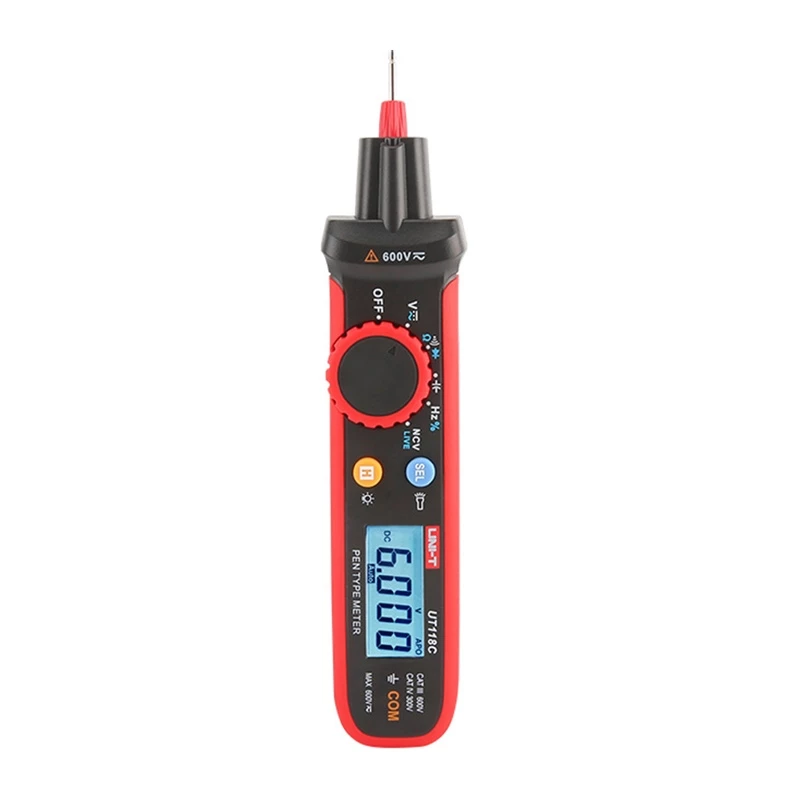

UNI-T UT118C pen-digitale multimeter

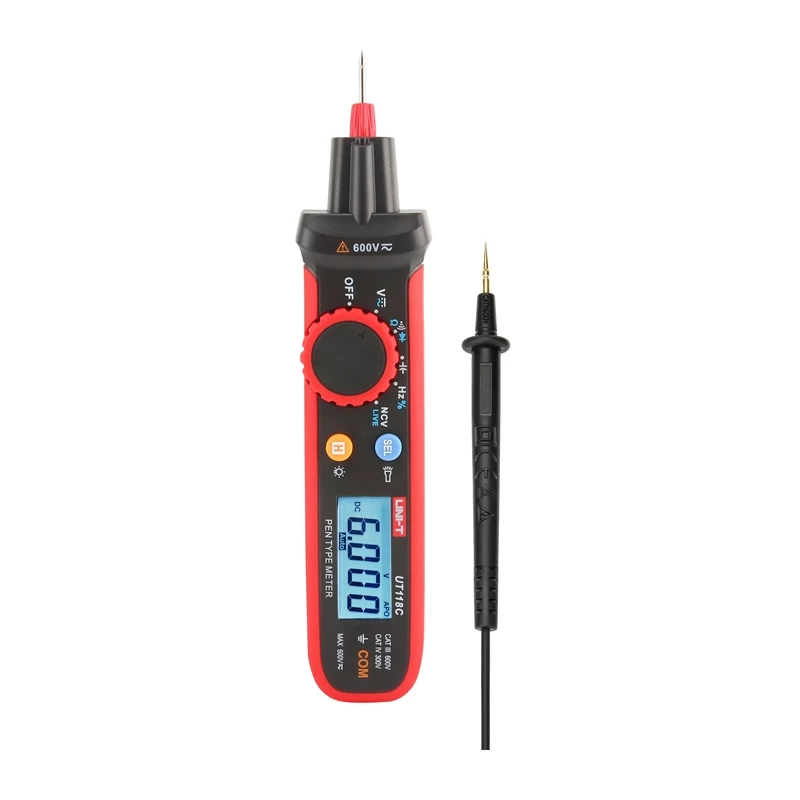

The UNI-T UT118C is a lightweight and durable pen-style digital multimeter that combines a compact design with accurate True RMS measurement. It measures AC/DC voltage up to 600 V, resistance up to 60 MΩ, capacitance up to 60 mF, and frequency up to 999.9 kHz, making it ideal for home appliance repairs and hobby projects. Gold-plated test leads with a special tip enhance comfort and safety during use.

Advantages

Wide measurement range and user-friendly operation: The UT118C features a 6000-count display and automatic range switching, simplifying daily work and speeding up measurements. It automatically detects diodes, continuity, and resistance, and offers an NCV function and a LIVE phase wire test. A flashlight, backlit HTN LCD screen, duty cycle measurement, and two-color indicator improve usability in various conditions. Compact design and safe operation: The two-color injection-molded construction increases housing durability. Two-step adjustment of the probe length allows better adaptation to the type of work. The model complies with CAT III 600V and CAT IV 300V standards, and is powered by a single AAA battery, making it a convenient tool for quick measurements at home and in the workshop.

Suitable for

• Home appliance repairs
• Hobby projects
• Electrical troubleshooting
• DIY enthusiasts

Key specifications

• Display Count: 6000 counts
• DC Voltage Range: 600mV / 6V / 60V / 600V
• AC Voltage Range: 6V / 60V / 600V
• DC Current Range: 60mA / 600mA
• AC Current Range: 60mA / 600mA
• Resistance Range: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
• Capacitance Range: 6nF / 60nF / 600nF / 6µF / 60µF / 600µF / 6mF / 60mF
• Frequency Range: 60Hz / 600Hz / 6kHz / 60kHz / 600kHz / 6MHz / 60MHz
• Duty Cycle: 0.1% ~ 99.9%
• Diode Test: Yes
• Continuity Test: Yes (with buzzer)
• Non-Contact Voltage (NCV): Yes
• Auto Range: Yes
• Data Hold: Yes
• Backlight: Yes
• Flashlight: Yes
• Safety Rating: CAT III 600V
• Power Supply: 2 x 1.5V AAA Batteries
• Auto Power Off: Yes

Recommendations

For accurate and safe measurements in a compact form factor, the UNI-T UT118C is an excellent choice for both professionals and hobbyists. Its pen-style design and comprehensive features make it a versatile tool for everyday electrical tasks.
