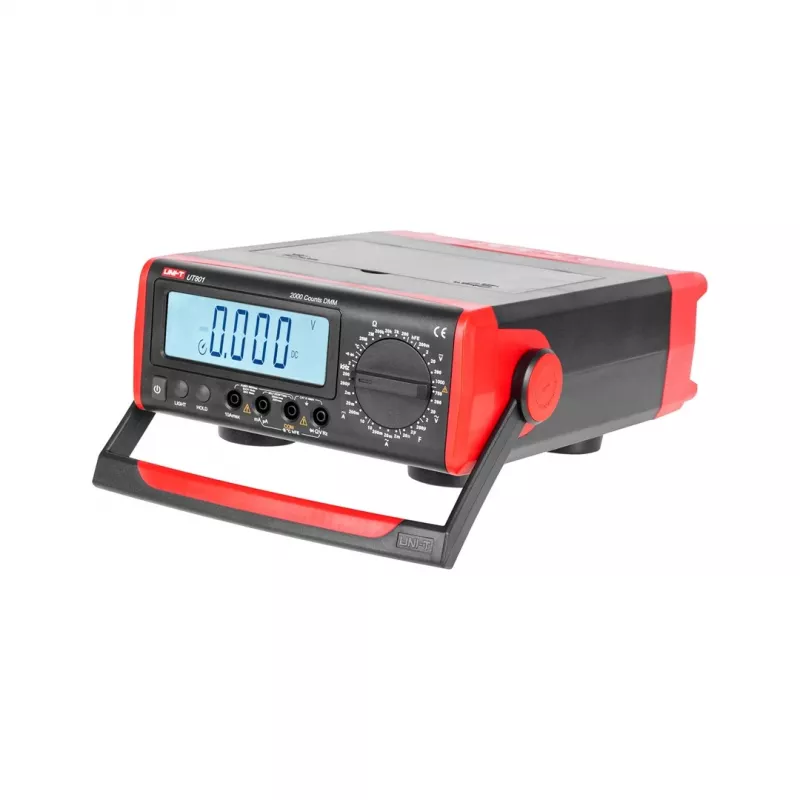

UNI-T UT801 tafelmeter

The UNI-T UT801 Bench Meter is a high-precision digital multimeter designed for professional use in laboratories, workshops, and educational settings. With a 20000-count display and true RMS measurement, it delivers accurate readings for DC/AC voltage, current, resistance, capacitance, frequency, and temperature. Its robust safety rating (CAT II 1000V, CAT III 600V) ensures reliable operation in demanding environments.

Advantages

Offers exceptional accuracy with DC voltage accuracy of ±(0.05%+5) and a wide measurement range. The built-in USB and RS232 interfaces enable easy data logging and remote monitoring. Dual power supply options (AC mains or batteries) provide flexibility for field or bench use.

Suitable for

• Electronics repair and troubleshooting
• Laboratory testing and calibration
• Educational demonstrations and experiments
• Industrial maintenance and quality control

Key specifications

• Display Count: 20000
• True RMS Measurement: Yes
• DC Voltage Range: 200mV to 1000V
• AC Voltage Range: 2V to 750V
• DC Current Range: 200μA to 10A
• AC Current Range: 2mA to 10A
• Resistance Range: 200Ω to 20MΩ
• Capacitance Range: 20nF to 20mF
• Frequency Range: 200Hz to 20MHz
• Temperature Range: -40°C to 1000°C
• Diode Test: Yes
• Continuity Buzzer: Yes
• Interfaces: USB, RS232
• Power Supply: AC 220V/50Hz or 6 x 1.5V C Batteries
• Safety Rating: CAT II 1000V, CAT III 600V

Recommendations

For professionals seeking a reliable bench meter with advanced features, the UNI-T UT801 is an excellent choice. Its combination of accuracy, versatility, and safety makes it suitable for a wide range of applications.
