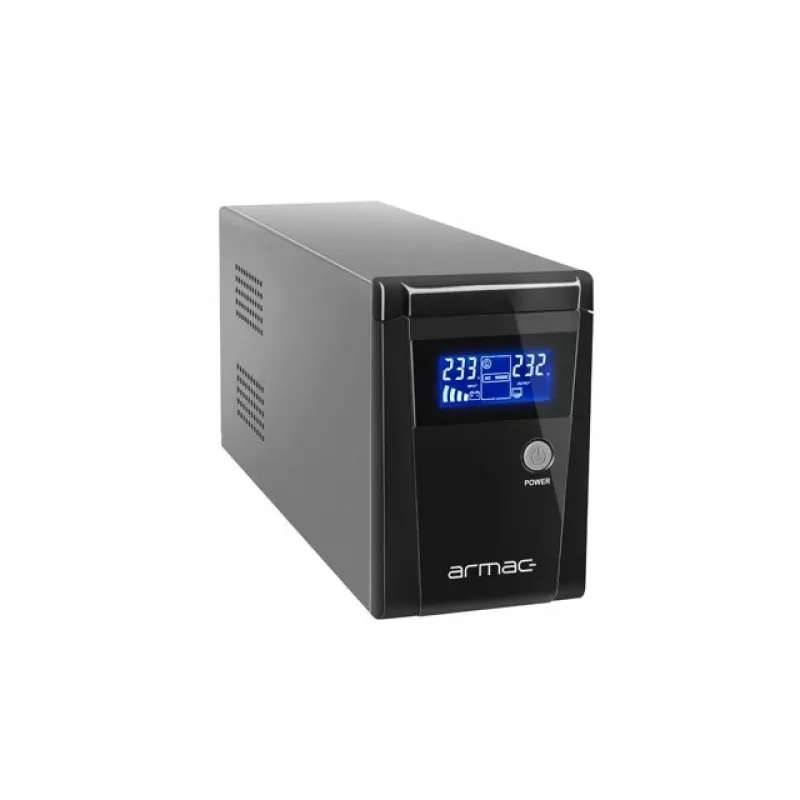

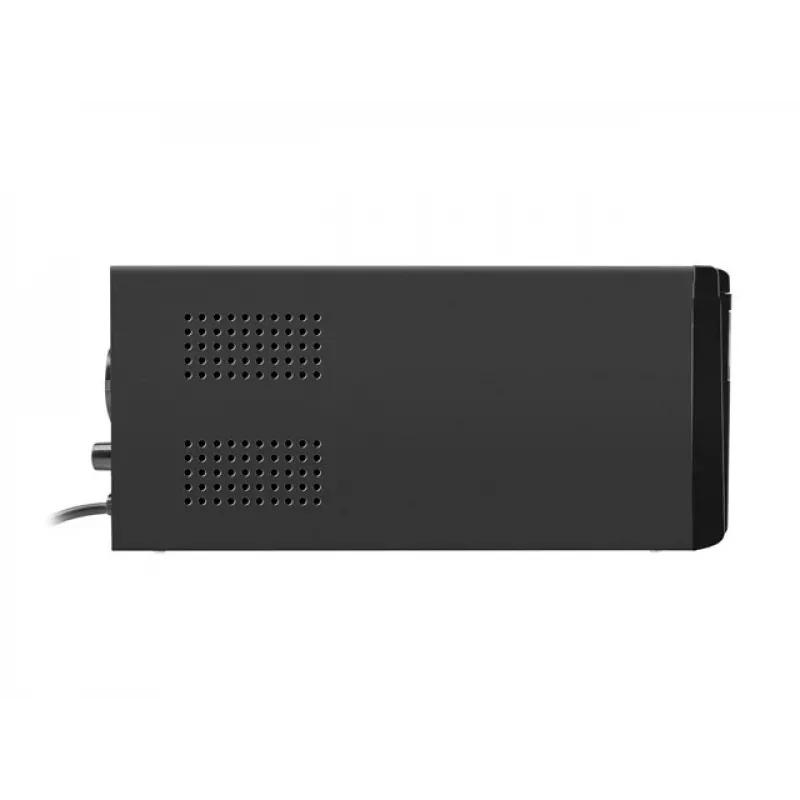

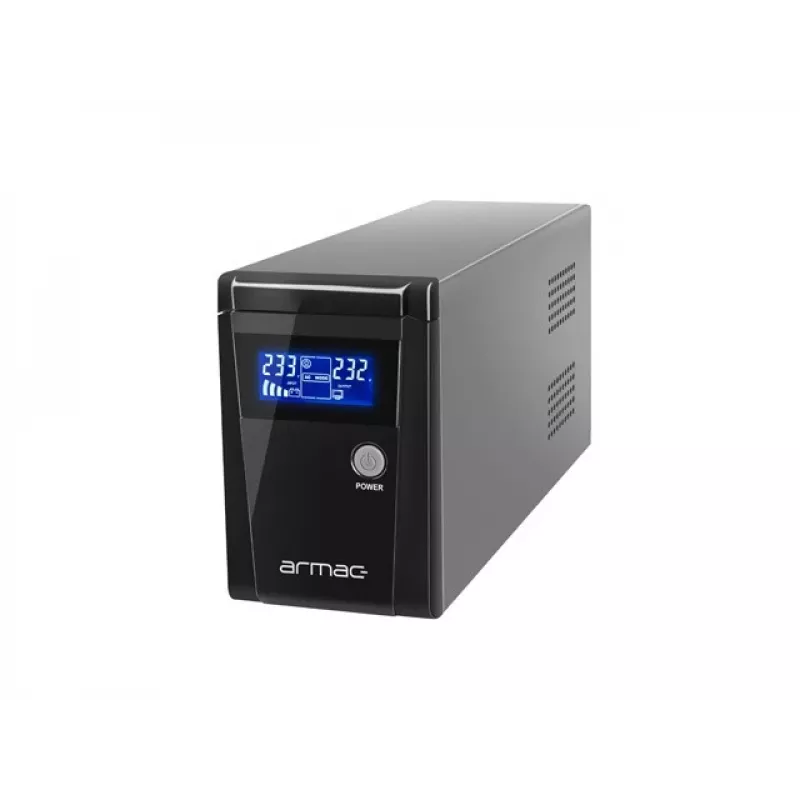

Noodstroomvoeding UPS Armac O/650E/LCD

The Armac O/650E/LCD is a Line-Interactive uninterruptible power supply (UPS) designed for office and home use to protect personal computers, laptops, routers, switches and other sensitive electronics from power interruptions. With 0.65 kVA (390 W) capacity, two Type E AC outlets and a 9 Ah battery, it offers compact, monitored backup power and real-time status feedback via an integrated LCD.

Advantages

The UPS provides automatic voltage regulation and microprocessor control for stable output, protecting connected equipment against under- and overvoltage, surges, spikes and mains failures. The built-in LCD panel shows input/output voltage, battery and load levels and operating mode. Additional features include RJ-45 surge protection for telecommunications lines, a USB port for communication and configuration, and PowerManager software support for remote monitoring, notifications and safe shutdown of systems during extended outages.

Suitable for

• Workstations and desktop PCs
• Home and small office networks (routers, switches)
• Point-of-sale terminals and small servers
• Remote monitoring equipment and telecommunications devices

Key specifications

• Output power: 390 W (0.65 kVA)
• AC outlets: 2 × Type E
• Battery: 9 Ah, backup time ~3 minutes at full load

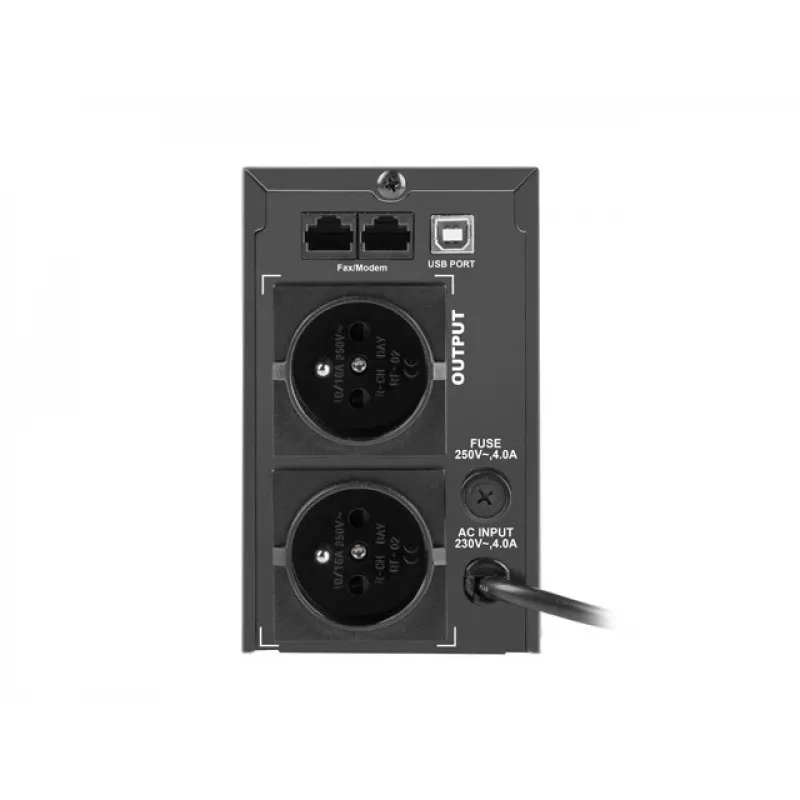

• Communication ports: 1 × USB 2.0, 2 × RJ-45 surge-protected
• Dimensions: 85 mm (W) × 305 mm (D) × 141 mm (H)
• Weight: 4.6 kg
• Colour: Black

How to use

Place the UPS on a flat, stable surface with adequate ventilation and connect the device to the mains supply. Attach sensitive equipment to the two Type E AC outlets and connect the USB port to a management computer if remote monitoring or automatic shutdown is required. Configure settings and notifications using the PowerManager software according to site requirements. The UPS will automatically regulate voltage, switch to battery mode during mains failures and restart automatically when mains power is restored.

Recommendations

For best results, test the battery periodically and replace it according to the manufacturer’s schedule. Avoid placing the UPS near heat sources or in humid environments, and ensure connected equipment does not exceed the 390 W output rating.
