Noodstroomvoeding ONLINE USV-Systeme ZINTO 1000

The ONLINE USV-Systeme ZINTO 1000 is a Line-Interactive uninterruptible power supply (UPS) with 1 kVA output capacity and 900 W rated output power. Designed for rackmount or tower installation, it provides eight C13 AC outlets, one USB 2.0 port and an internal 12 Ah battery that delivers approximately 7 minutes of backup at full load. The unit follows EN62040-2 standards and combines adaptive power delivery with silent operation for protection of sensitive IT and medical equipment.

Advantages

ZINTO 1000 uses Dynamic Power Technology (DPT) to dynamically adapt output power to the connected load, yielding up to 38% more effective watts for the load compared with conventional UPS models. The device features fanless operation under normal conditions (up to certain capacities) to reduce noise and a buck-and-boost function that corrects voltage fluctuations without discharging the battery, extending battery life and lowering operating costs. The compact 1 kVA model offers a cost-efficient balance of purchase price, runtime and protection.

Suitable for

• Small servers and network devices in rackmount or tower setups
• Workstations and point-of-sale systems requiring clean shutdown time
• Medical analyzers and laboratory devices where uninterrupted power is critical
• Office equipment and peripherals that need protection from power disturbances

Key specifications

• Output power: 900 W
• Output power capacity: 1 kVA

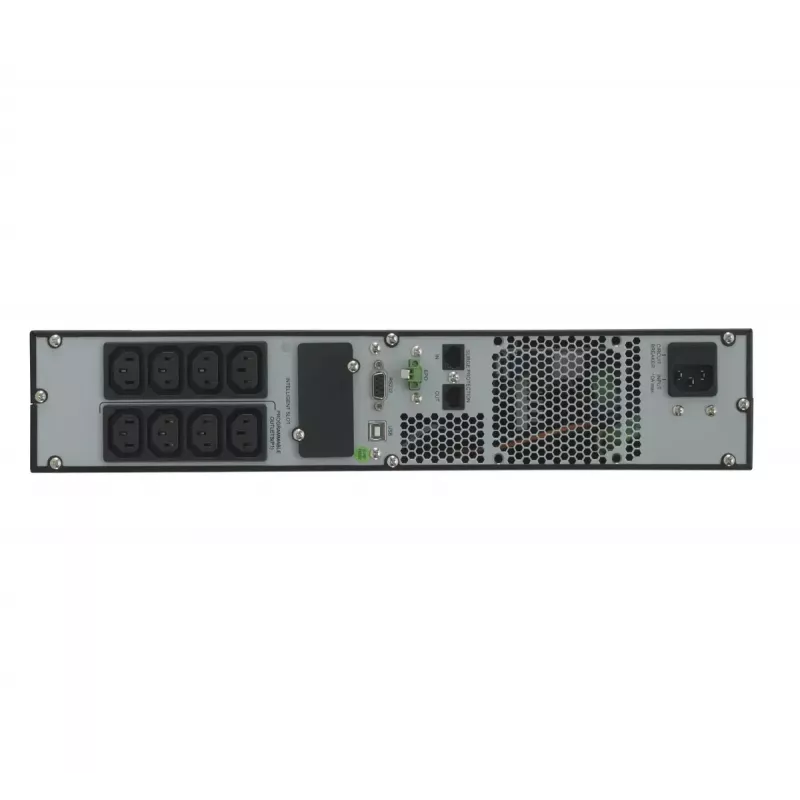

• AC outlets: 8 × C13
• USB: 1 × USB 2.0
• Battery: 12 Ah, approx. 7 min at full load
• Form factor: Rackmount / Tower
• Weight: 14.5 kg
• Color: Black
• Standards: EN62040-2

How to use

Install the ZINTO 1000 in a stable rack or on a flat surface in tower orientation, ensuring adequate ventilation. Connect critical equipment to the UPS AC outlets and connect the UPS to mains power. Use the USB 2.0 port for communication with monitoring software if required. In case of mains failure the UPS supplies battery-backed power automatically; monitor the remaining runtime and perform an orderly shutdown of connected devices when battery runtime becomes low.

Recommendations

For longer runtimes or higher load demands, consider using a larger ZINTO model or external battery packs where supported. Periodically verify battery health and keep firmware/monitoring software up to date to ensure reliable operation.
