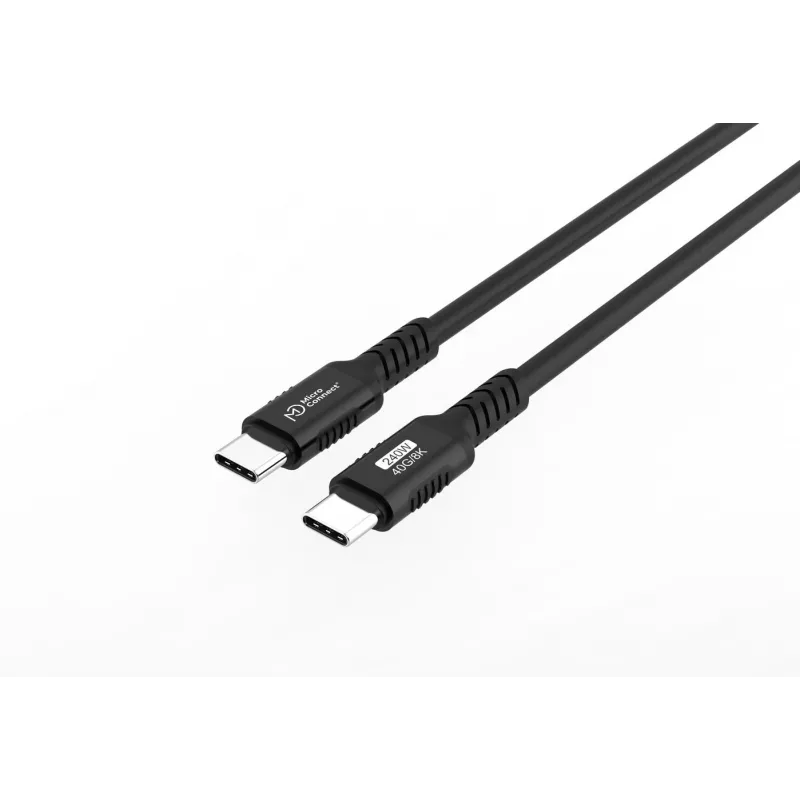

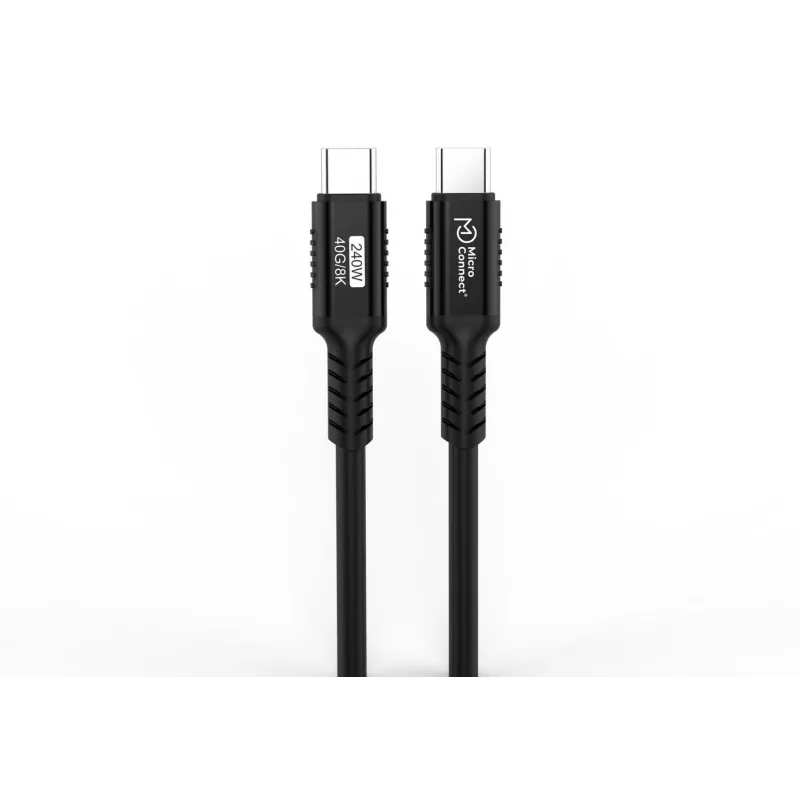

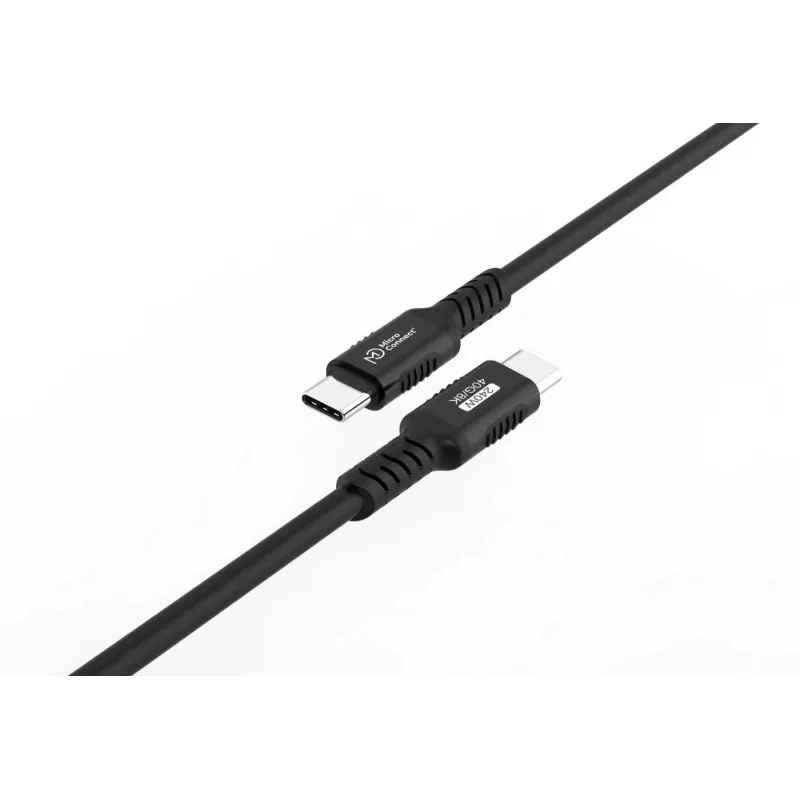

USB-kabel MicroConnect MC-USB4-CC40LQ-1.5 — USB Type-C naar USB Type-C, 1,5 m

MicroConnect MC-USB4-CC40LQ-1.5 is a USB4 Gen 3x2 cable that combines up to 240W (48V/5A) charging capability with 40Gbps data transfer and support for high-resolution video. The cable supports DP1.4 alt mode and DisplayLink, is compatible with Thunderbolt 4, and features a flexible liquid silicone outer jacket for improved handling and reduced tangling.

Advantages

This cable provides high-power charging for demanding laptops and devices while delivering USB4 data speeds up to 40Gbps for fast file transfers and smooth 8K60Hz video. The liquid silicone jacket improves flexibility and tactile comfort, resists tangles, and enhances durability under frequent bending and everyday use. Compatibility with Thunderbolt 4 and DisplayPort alt mode increases versatility across modern peripherals and displays.

Suitable for

• Charging high-power laptops and docking stations
• Connecting external monitors supporting 8K@60Hz via DP1.4 alt mode
• High-speed data transfer between computers and storage devices
• Use with Thunderbolt 4 compatible devices and hubs

Key specifications

• Data transfer rate: up to 40 Gbps (USB4 Gen 3x2)
• Power delivery: up to 240 W (48 V / 5 A)
• Video: supports up to 8K at 60 Hz via DP1.4 alt mode
• Thunderbolt compatibility: works with Thunderbolt 4 devices
• Display protocols: DP1.4 alt mode and DisplayLink support
• Outer jacket: flexible liquid silicone for improved handling
• Length: 1.5 m

How to use

Connect one end of the cable to a USB4 (or compatible Thunderbolt 4) port on your host device and the other end to the target device or charger. Ensure that both host and device support the intended functions (power delivery, video alt mode, or DisplayLink) for full performance. For video output, select the appropriate input on the external monitor and configure display settings on the host as needed.

Recommendations

For optimal performance, use with devices and chargers that support USB Power Delivery up to 48V/5A and USB4/Thunderbolt 4 standards. Avoid sharp bends and excessive pulling; store the cable loosely coiled to preserve the liquid silicone jacket and maintain longevity.
