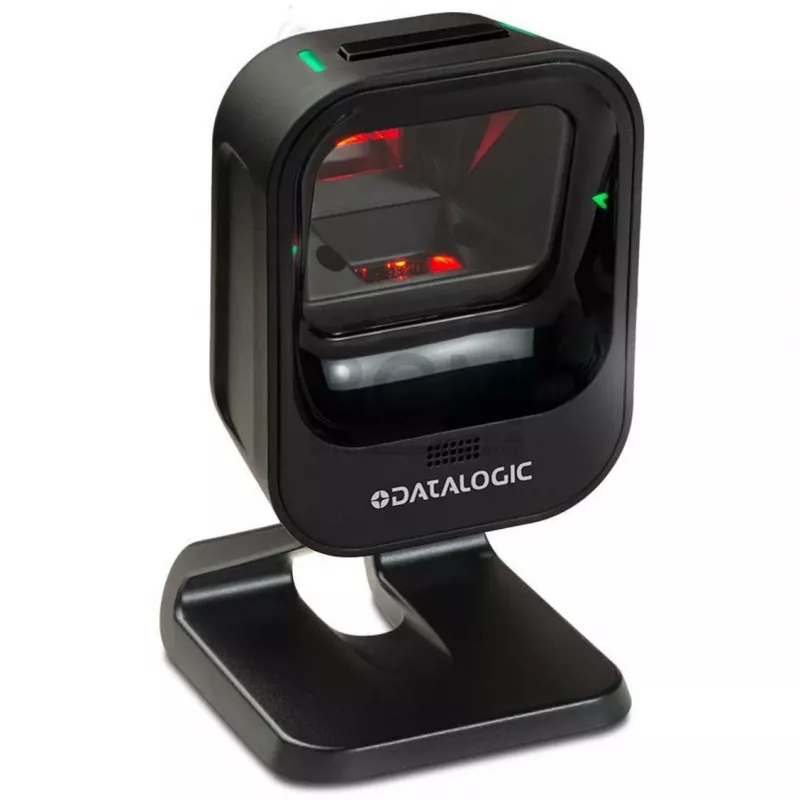

Vaste barcodescanner Datalogic Magellan 900i 1D/2D LED zwart

The Datalogic Magellan 900i is a compact fixed barcode reader that reliably captures both 1D and 2D codes. Built on 15 years of imaging presentation scanner experience, this model uses LED sensor technology and wired USB connectivity to read barcodes from labels and mobile phone displays. Its small footprint, 2 m cable and 345 g weight make it suitable for retail checkouts, self-checkouts, kiosks and access control points where continuous, fast scanning is required. The scanner has an IP52 rating and is designed for drop resistance to perform in everyday commercial environments.

Advantages

The Magellan 900i combines high sweep speed and automatic code detection to speed up transactions and reduce operator time per scan. Its ability to read a wide range of linear (1D) and matrix (2D) codes, including QR Code and Data Matrix, ensures versatility across retail and kiosk applications. Easy installation and USB wired connectivity simplify deployment in both attended and unattended setups. The compact, black enclosure and robust build provide practical durability for continuously used points of sale.

Suitable for

• Convenience store staffed checkouts
• Self-checkout terminals
• Retail kiosks and payment points
• Access control and ticket validation

Key specifications

• Scanner type: 1D/2D fixed presentation
• Sensor type: LED
• Connectivity: Wired (USB)
• Cable length: 2 m
• Ingress protection: IP52
• Weight: 0.345 kg
• Supported 1D codes: GS1 DataBar, GS1 DataBar Omnidirectional, China Post, PDF417, PLANET, POSTNET
• Supported 2D codes: MaxiCode, QR Code, Aztec Code, Data Matrix
• Colour: Black
• Manufacturer part number (MPN): MG0901-10000-0200
• EAN: 5715063461105

How to use

Position the Magellan 900i at the checkout or kiosk so the scanning window faces incoming items or mobile phone displays. Connect the scanner via the supplied 2 m USB cable to the host system and allow the host to install any necessary drivers or accept the plug-and-play configuration. Present barcodes to the scanning field; the device will automatically detect and decode 1D and 2D codes at high sweep speed. For unattended installations, mount the unit securely following the retailer’s mounting guidelines and route the cable to prevent accidental disconnection.

Recommendations

The scanner performs best when the barcode is held within the central scanning area and when mobile phone screens are set to sufficient brightness. Regularly clean the scanning window to prevent dust buildup and check cable connections periodically to maintain reliable operation.
