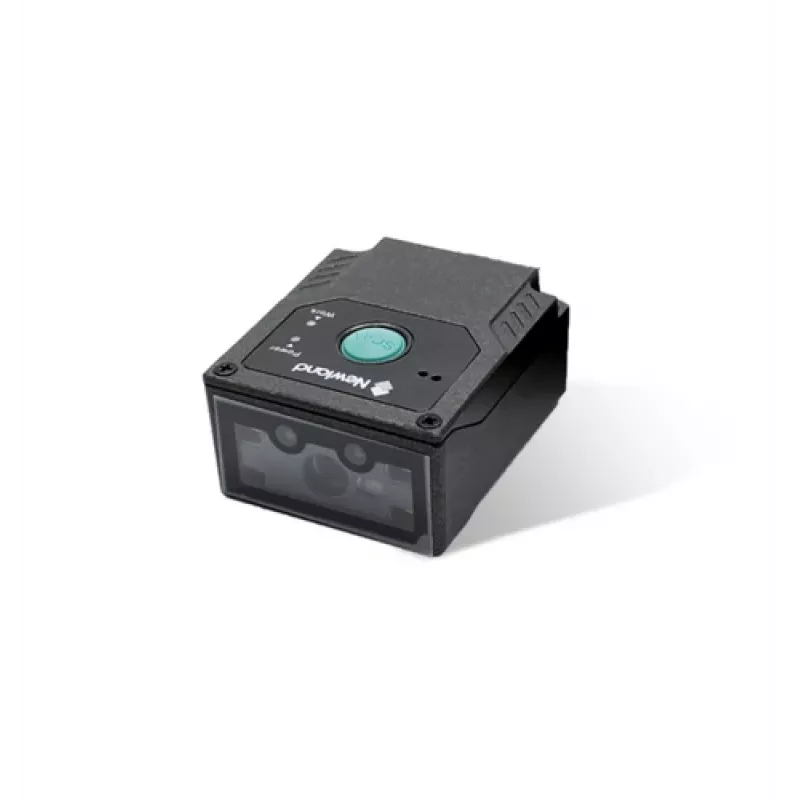

Vaste barcodescanner Newland FM430 Barracuda

The Newland FM430 Barracuda is a fixed bar code reader designed for reliable 1D and 2D scanning in a range of environments. Equipped with a megapixel CMOS camera and wired connectivity, the FM430 delivers fast decoding of standard and small barcodes, supports operation from mobile phone screens and can be configured for handsfree or manual use. Its compact 75 g body, IP54 rating and 5V USB power make it suitable for integration into kiosks, production lines and outdoor housings.

Advantages

The FM430 Barracuda combines a high-resolution megapixel sensor with intelligent ambient and IR sensors that automatically adjust lighting for accurate reads in challenging conditions. It reads both 1D and 2D codes quickly, supports close and long-range settings, and offers an optional bright red cross laser aimer for intuitive targeting. With an IP54 rating and low power consumption, the unit is durable and energy-efficient for continuous operation.

Suitable for

• Self-service kiosks and ticket machines
• Express delivery and postal sorting
• Access control and event ticket redemption
• Mobile payments and loyalty points scanning
• Production line code capture and inventory checkpoints
• Parking and transport boarding pass scanning

Key specifications

• Scanner type: 1D/2D fixed mount reader
• Sensor: CMOS megapixel camera
• Connectivity: Wired (RS-232 via USB power)
• Power: 5 V USB, 276.8 mA
• Weight: 0.075 kg
• Ingress protection: IP54
• Supported 1D codes: EAN-13, UPC, Plessey, MSI, Industrial 2 of 5, ITF-14, EAN-8, EAN 128, Code 93, Code 39, Code 128, Code 11, Codabar
• Supported 2D codes: QR Code, Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417
• Optional: red cross laser aimer
• Certifications: FCC B, CE EMC B, IEC60825, IEC62471, KC

How to use

Install the FM430 Barracuda in the desired fixed position or housing and connect to a 5 V USB power source and the host system via the supported wired interface. Configure the device for handsfree mode using its IR sensor or enable the manual trigger if preferred. Adjust the scanner settings for distance and decoding behavior according to the application; the device’s intelligent programming will automatically adapt lighting for reads from paper labels or mobile screens.

Recommendations

Place the scanner in a stable mount and, if used outdoors, install it within a protective housing to maintain IP54 protection. Use the optional laser aimer to improve targeting for infrequent users and enable the IR sensor mode for automatic handsfree operation in high-throughput scenarios.
