Videosplitter Club 3D CSV-1478 USB Type-C (met USB-A-adapter) naar dual DisplayPort 4K60Hz, zwart

CLUB3D CSV-1478 is a compact black video splitter that converts a single USB Type-C video-capable port (adapter to USB Type-A included) into two DisplayPort outputs. It supports dual DisplayPort monitors with resolutions up to 4K at 60Hz, enabling extended desktop or mirrored displays from compatible desktop and mobile devices.

Advantages

The adapter provides two full-size DisplayPort outputs from one USB Type-C source without additional drivers (plug-and-play). Its small form factor and included USB Type-A adapter increase compatibility with a range of hosts while maintaining support for 4K@60Hz video on each output when the source and displays allow.

Suitable for

• Extending desktop to two DisplayPort monitors
• Presentations and multi-monitor setups
• Mobile workstations and laptops with video-capable USB-C ports

Key specifications

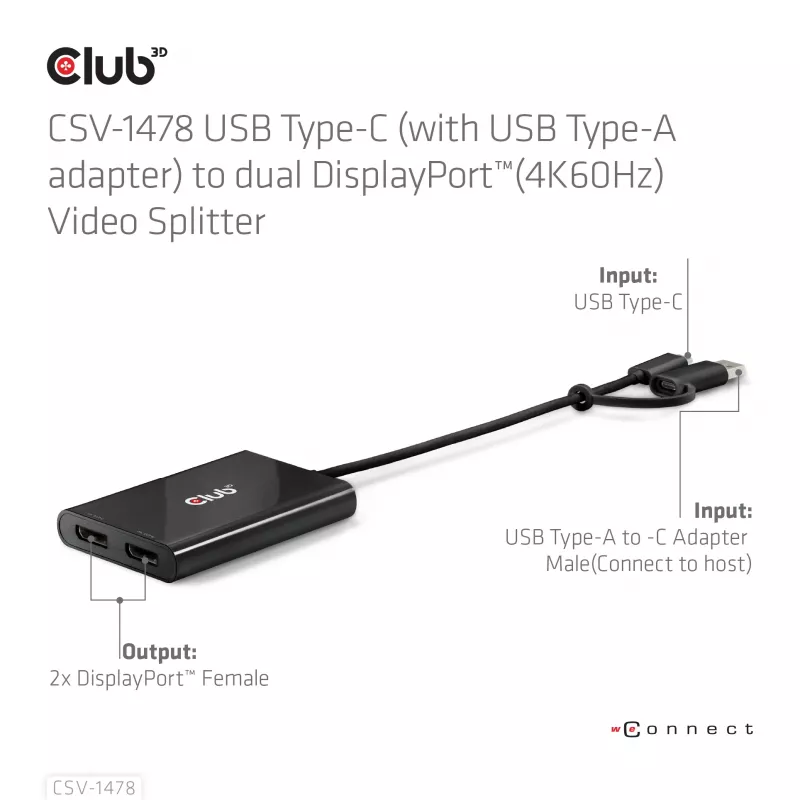

• Input: USB Type-C (includes USB Type-A adapter)
• Outputs: 2 × DisplayPort
• Maximum resolution: up to 4K (3840×2160) at 60Hz
• Colour: Black

How to use

Connect the CSV-1478 to a video-capable USB Type-C port on the host device; if needed, use the included USB Type-A adapter. Attach up to two DisplayPort cables from the adapter outputs to the monitors. Configure display mode (extended or mirrored) in the operating system display settings. No separate driver installation is required for typical plug-and-play operation.

Recommendations

Ensure the host device’s USB-C port supports DisplayPort Alt Mode and that connected monitors and cables support the intended 4K@60Hz output. For best results use high-quality DisplayPort cables and check system graphics settings to enable dual 4K outputs when supported.
