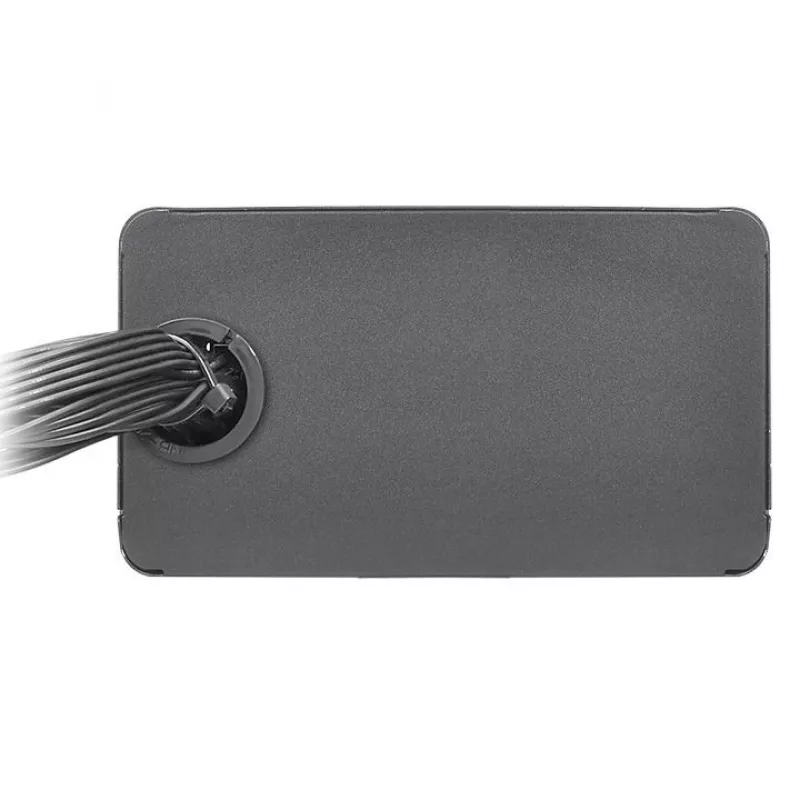

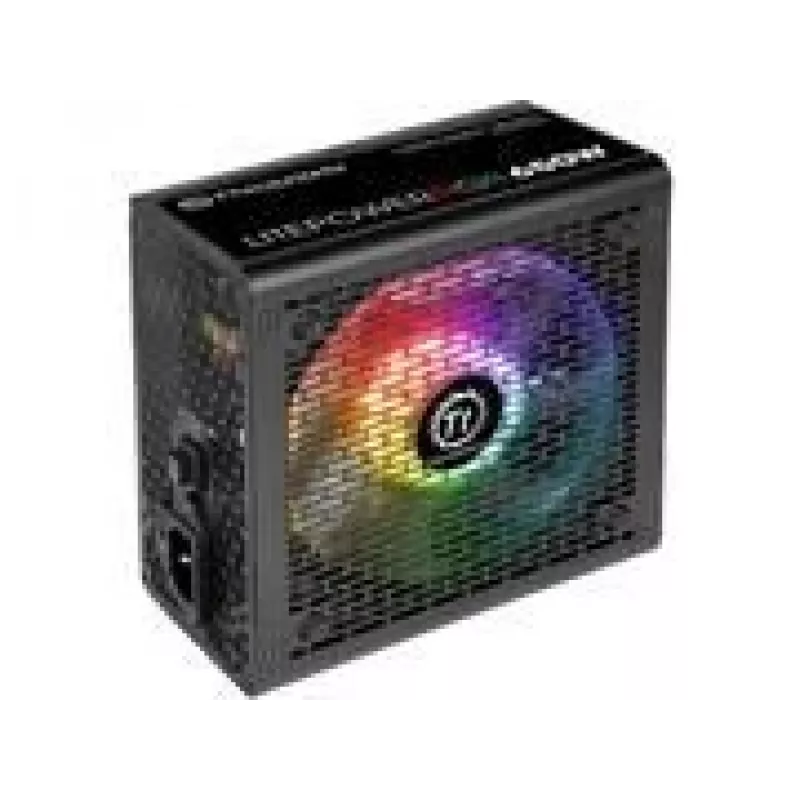

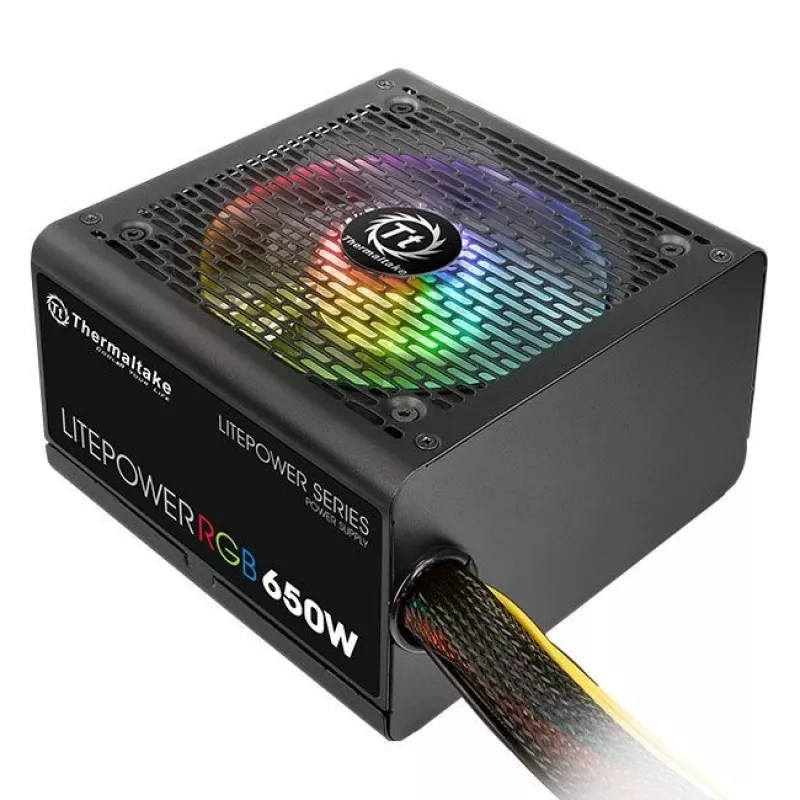

Voeding Thermaltake Litepower RGB 650 W

Thermaltake Litepower RGB 650W is a 650 W non-modular power supply unit designed for standard desktop PC builds. It features a black-coated finish, a 120 mm fan with 10 preinstalled RGB LEDs offering seven colors and multiple lighting modes, and EPS/ATX 12V 4+4pin CPU cables for compatibility with full tower cases. The unit supports 230 V AC input, active PFC, Intel C6/C7 power states, and has certifications including CE, TUV SUD, CB, and EAC with an MTBF of 100,000 hours.

Advantages

The Litepower RGB 650W provides stable 650 W output with active PFC for improved energy efficiency and reduced harmonic distortion. Its 120 mm hydraulic bearing fan with intelligent RPM control ensures effective cooling and low noise. Ten preinstalled RGB LEDs and a one-button color selector with memory function allow simple, persistent lighting customization. Included EPS/ATX 12V 4+4pin CPU cables improve compatibility with larger chassis and help with cable routing and airflow.

Suitable for

• Mid-tower and full-tower gaming and productivity PC builds
• Systems requiring a 650 W PSU with EPS/ATX 12V 4+4pin support
• Builds where quiet cooling and basic RGB lighting are desired

Key specifications

• Total power: 650 W
• AC input voltage: 230 V, 50–60 Hz

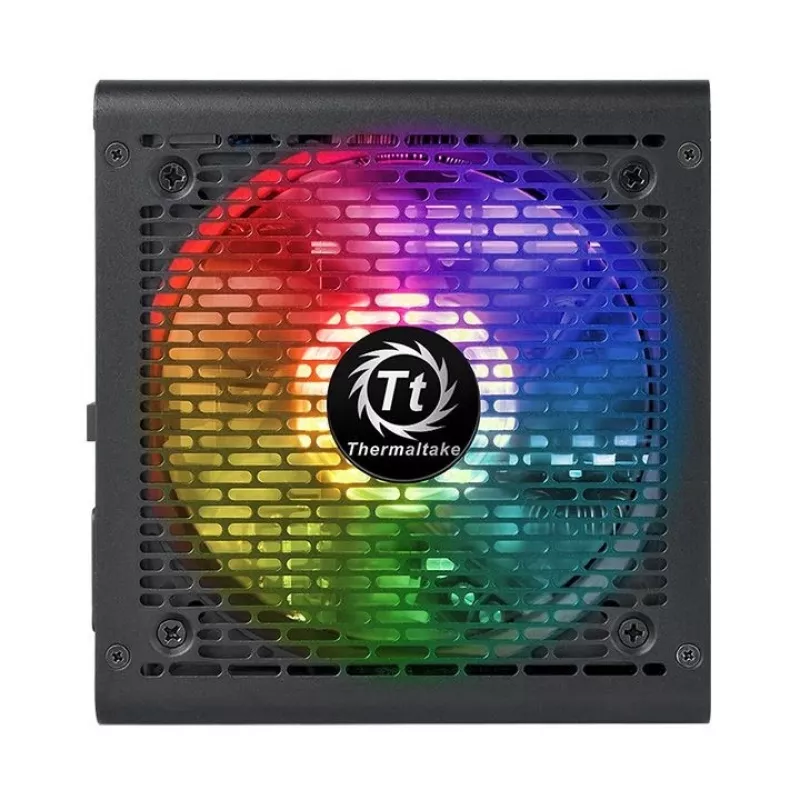

• Fan: 120 mm hydraulic bearing, 10 preinstalled RGB LEDs

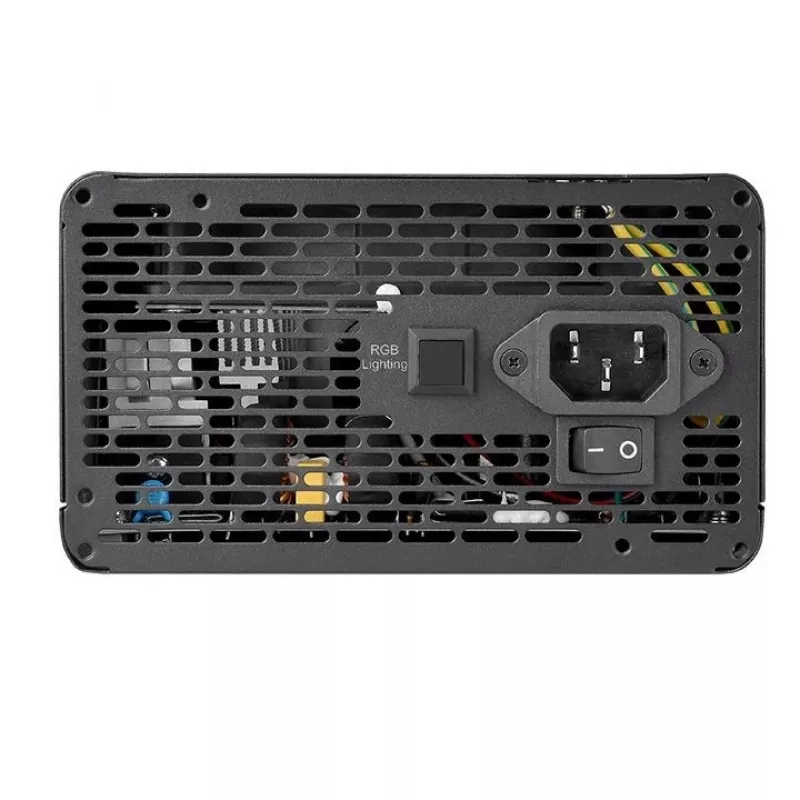

• Lighting: 7 colors (Red, Green, Blue, Yellow, Purple, Light Blue, White), Pulse, Full-lighted, RGB Cycle, LED Off; one-button control with memory
• Cabling: Non-modular; includes EPS/ATX 12V 4+4pin CPU cables
• Active PFC and Intel C6/C7 states ready
• Certifications: CE, TUV SUD, CB, EAC
• MTBF: 100,000 hours
• Colour: Black

How to use

Install the Litepower RGB 650W into your PC case following standard PSU mounting procedures, connect the main 24-pin ATX connector and the EPS/ATX 12V 4+4pin CPU connector(s) to the motherboard, and attach any required peripheral or GPU power cables. Use the single RGB button on the PSU to cycle lighting modes and select a color; the unit stores the selected color in memory so the same setting is restored at each boot. Ensure the PSU is connected to a 230 V AC supply and switch off power before making any internal connections.

Recommendations

Place the PSU so that its fan has unobstructed airflow, route cables to avoid blocking case ventilation, and verify system power requirements to ensure 650 W is sufficient for your components. For stable operation, use a properly grounded AC outlet and refer to the motherboard and case manuals when connecting EPS/ATX and peripheral cables.
