VOLTCRAFT VC-831 True RMS digitale multimeter met MLSet-120 meetkabels en draagtas VC-12884320+VC-18652750

Electrical troubleshooting demands precision, safety, and reliability—especially when working on high-energy circuits. The VOLTCRAFT VC-831 True RMS Digital Multimeter answers that need with CAT III 1000V / CAT IV 600V safety ratings, a 6000-count display, and true RMS accuracy for non-sinusoidal signals. Bundled with the MLSet-120 test leads, a K-type temperature probe, protective holster, and a carrying bag, it’s a complete kit for professionals and serious hobbyists.

Who is it for

This multimeter is built for electricians, maintenance technicians, and electronics engineers who need dependable measurements in industrial, commercial, or residential settings. It’s also ideal for advanced DIYers tackling complex projects where true RMS and high-voltage safety are non-negotiable.

Main features

• True RMS measurement for AC voltage and current, ensuring accurate readings even with distorted waveforms.
• Auto-ranging with a 6000-count LCD display and backlight for clear visibility in any lighting.
• Wide measurement ranges: DC voltage up to 1000V, AC voltage up to 750V, AC/DC current up to 10A, resistance up to 60MΩ, capacitance up to 60mF, frequency up to 10MHz, and temperature from -40°C to +1000°C.
• Safety rated CAT III 1000V and CAT IV 600V for high-energy circuits.
• Special functions: data hold, min/max recording, relative mode, non-contact voltage detection (NCV), diode test, and audible continuity.
• Auto power off to conserve battery life.

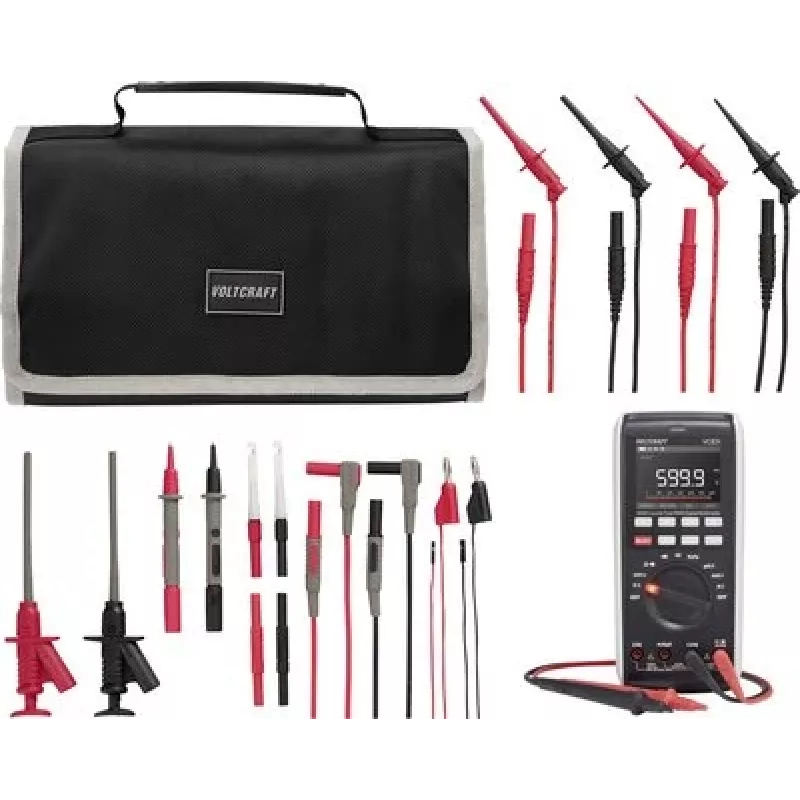

• Includes MLSet-120 test leads, K-type temperature probe, protective holster, carrying bag, and 9V battery.

Specifications

• Display: 6000-count LCD with backlight
• True RMS: Yes (AC voltage and current)
• DC voltage range: 0.1 mV – 1000 V
• AC voltage range: 0.1 mV – 750 V
• DC current range: 0.1 µA – 10 A
• AC current range: 0.1 µA – 10 A
• Resistance range: 0.1 Ω – 60 MΩ
• Capacitance range: 1 pF – 60 mF
• Frequency range: 0.001 Hz – 10 MHz
• Temperature range: -40°C to +1000°C
• Safety rating: CAT III 1000V, CAT IV 600V
• Power supply: 1x 9V block battery
• Continuity test: Yes (acoustic signal)
• Diode test: Yes
• Included accessories: MLSet-120 test leads, K-type temperature probe, protective holster, carrying bag, 9V battery

Tips

Always verify the meter’s safety rating matches your working environment. For temperature measurements, ensure the K-type probe is properly connected and the meter is set to the correct mode. Use the relative function to compensate for lead resistance when measuring low resistances. Store the meter in the included bag to protect it from dust and impact.
