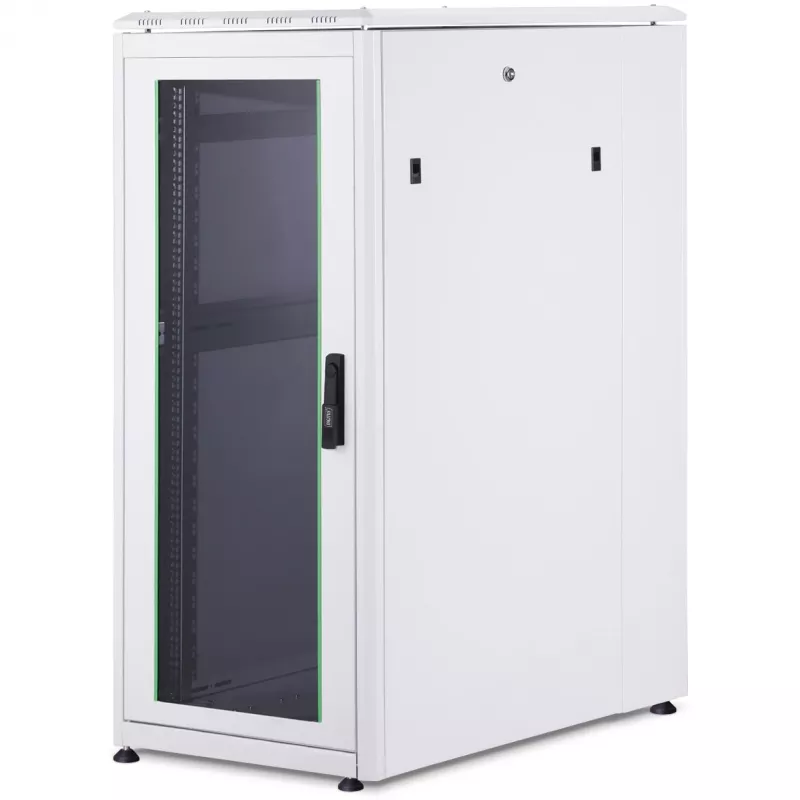

Vrijstaande kast Digitus DN-19 26U-6/10-1

The DIGITUS Unique Series freestanding rack DN-19 26U-6/10-1 is a 26U network cabinet designed for high-demand IT infrastructure. The cabinet measures 600 x 1000 mm (W x D), is rated IP20 and supports stable installation of server and network equipment with a maximum load capacity suitable for typical 19" rack devices. Constructed from up to 1.5 mm sheet steel and finished with electrostatic powder coating in grey (RAL 7035), the rack features adjustable 483 mm (19") profile rails, removable side panels and doors, and a roof designed for easy fan module mounting.

Advantages

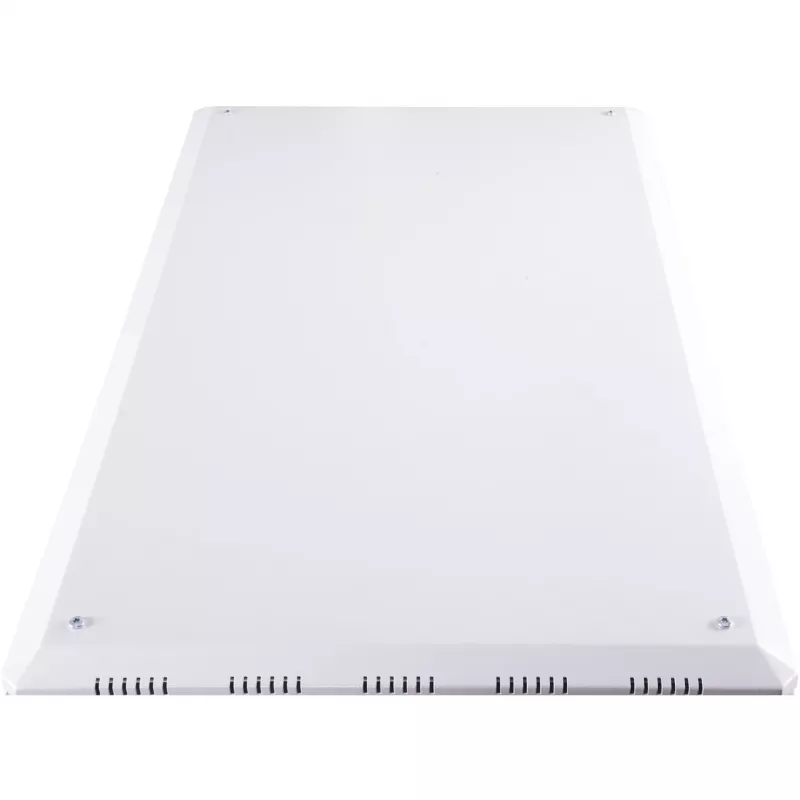

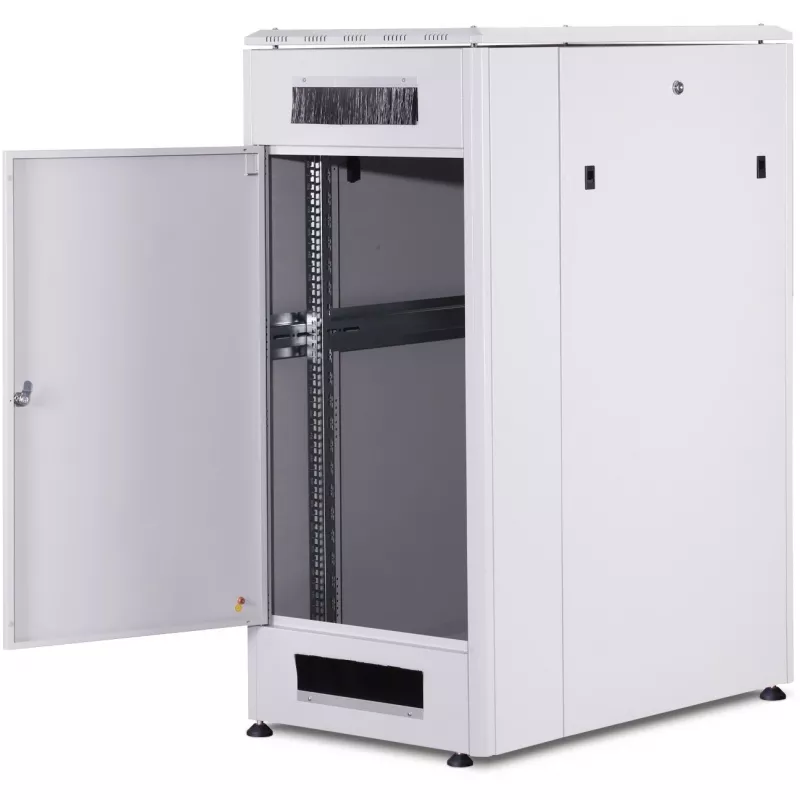

The cabinet offers flexible cable management through roof and floor brush inlets, a sliding cable entry with rubber sealing at the base, and brush management panels at the rear. A pivot-lever lock on the front door (adapter for profile half cylinder included) and switchable door hinges improve accessibility and security. Vertical cable channels and adjustable-depth 19" profile rails simplify installation, while a removable offset roof cover with ventilation slits supports enhanced air circulation and optional fan installation.

Suitable for

• Mounting 19" network switches, patch panels and small servers
• Server rooms and network closets in offices or data centers with IP20 protection needs
• Environments requiring flexible cable routing and ventilation options

Key specifications

• Model: Digitus DN-19 26U-6/10-1
• Dimensions (W x D): 600 x 1000 mm
• Rack units: 26U

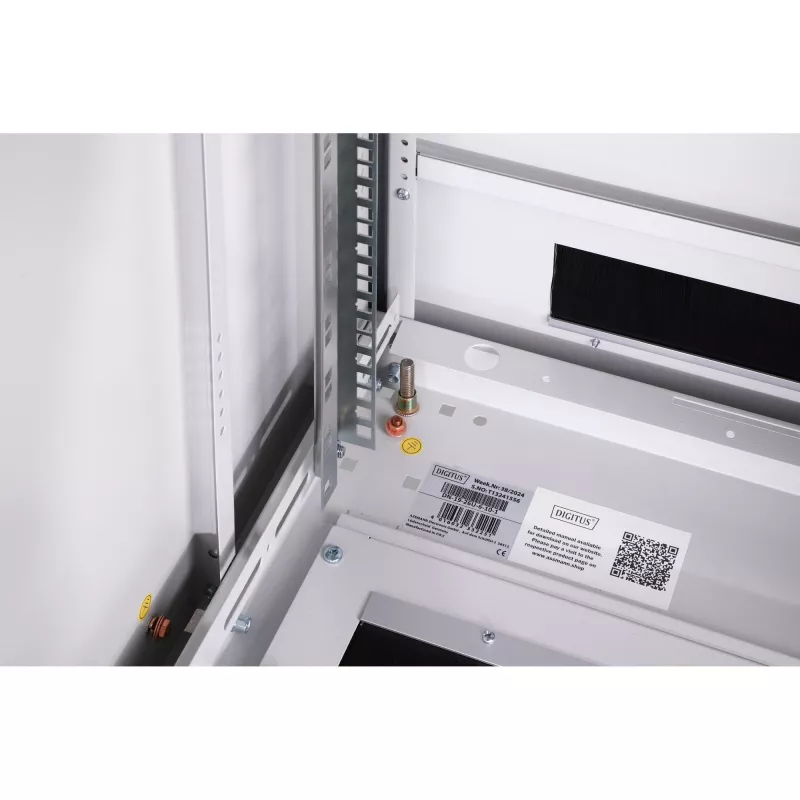

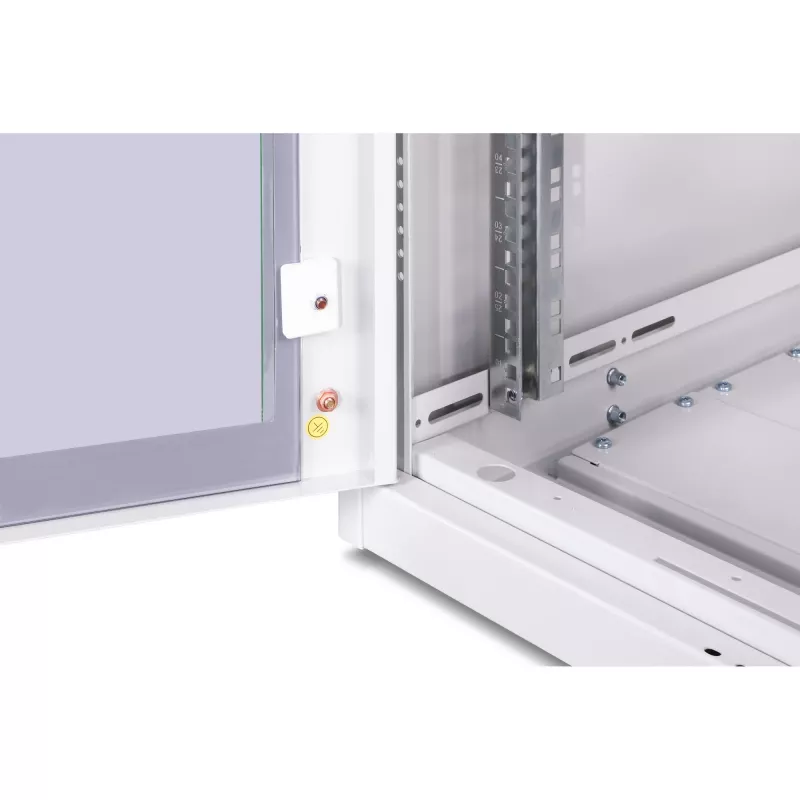

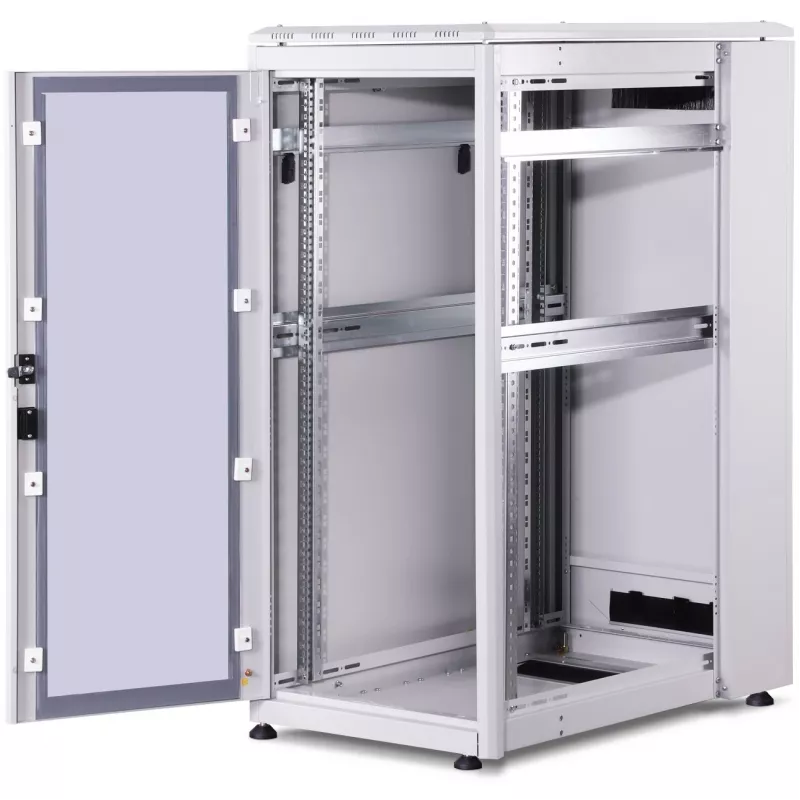

• Profile rails: two pairs of galvanized 483 mm (19") rails, depth adjustable
• Material thickness: up to 1.5 mm sheet steel
• Protection rating: IP20
• Colour: Grey (RAL 7035)
• Front door lock: pivot lever, ready for profile half cylinder (adapter included)

How to use

Position the freestanding rack on a level surface and secure it if required by local installation rules. Remove side panels or doors to access the interior for mounting equipment. Adjust the depth of the 19" profile rails to match device depth and fix equipment using standard 19" mounting hardware. Route cables through the roof or floor brush inlets and the sliding cable entry with rubber sealing. If additional ventilation is needed, mount a compatible fan module into the specially designed roof area after removing the removable lid.

Recommendations

Install the rack in a dust-controlled indoor environment consistent with its IP20 rating, plan cable routes before mounting devices to maintain airflow, and ensure that the total load is distributed evenly across rails. Use the included adapter when fitting a profile half cylinder to the front door lock for improved security.
