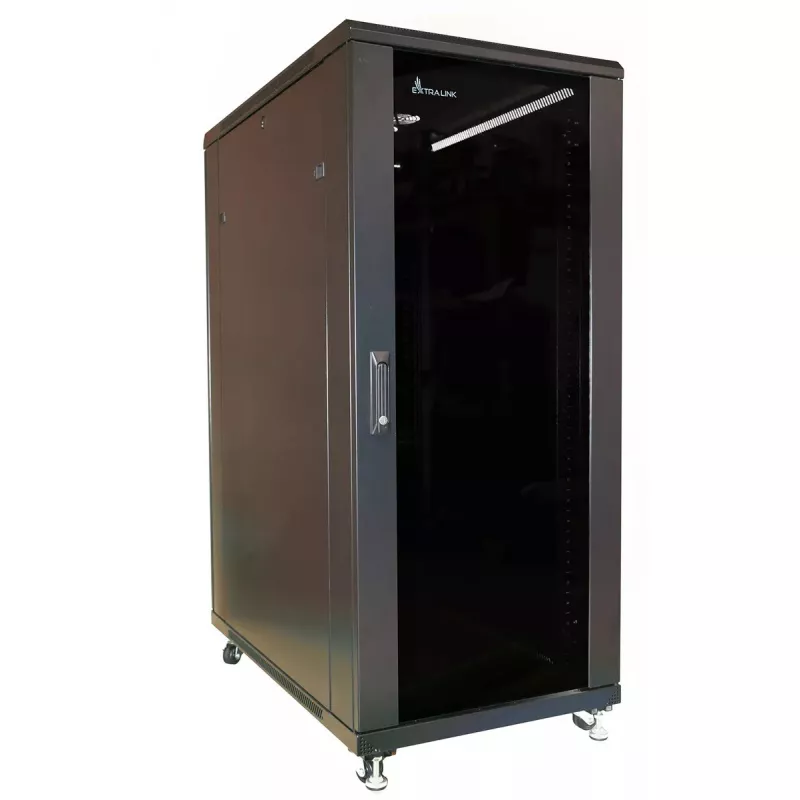

Wandgemonteerde kast Extralink 37U 600X1000 zwart 1200 kg draagvermogen

Built for serious infrastructure, the Extralink 37U 600x1000 black rack cabinet combines a 1200 kg static load rating with a fully enclosed cold-rolled steel chassis. Unlike open-frame racks, it keeps equipment protected behind a reversible tempered glass front door and lockable side panels, while still offering generous cable entry and optional active ventilation. The 37U capacity and 1000 mm depth accommodate deep servers, switches, UPS units and patch panels without compromise.

Highlights

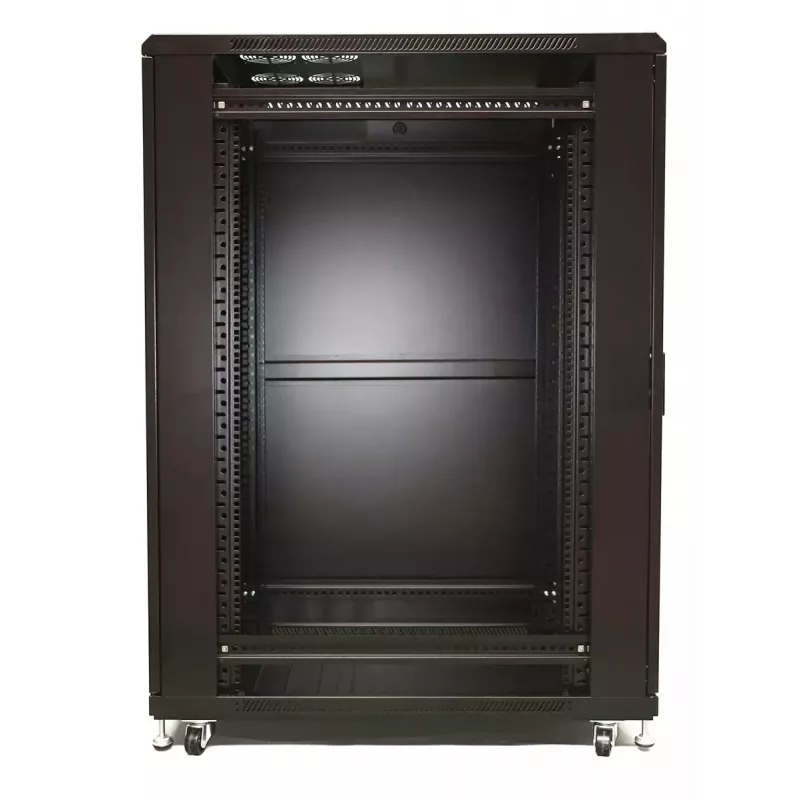

• 37U of 19-inch mounting space with clearly marked U-height indicators on adjustable rails
• 1200 kg maximum load capacity for dense, heavy equipment configurations

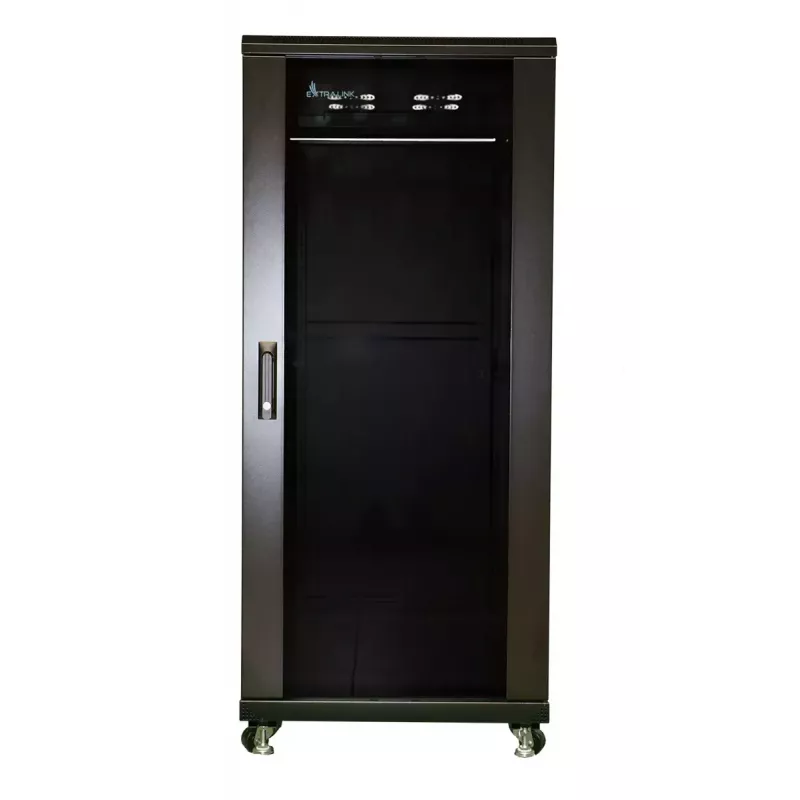

• Tempered glass front door with keyed lock, reversible left/right opening
• Removable, lockable side panels with snap fasteners for fast access

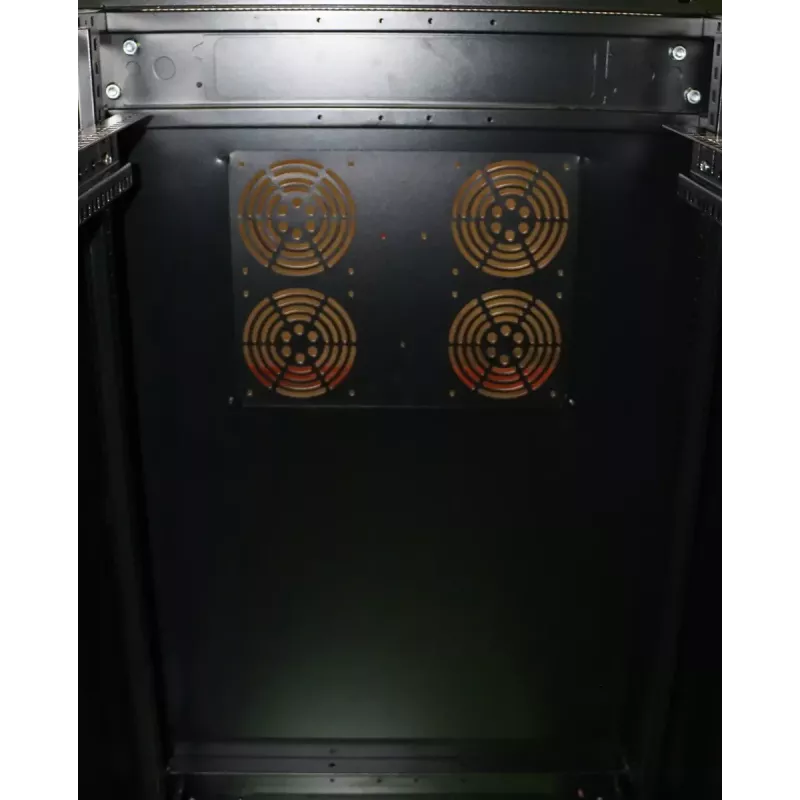

• Four cable entry points in the lower panel and four cutouts in the ceiling for fan units
• Cold-rolled steel construction in RAL 9005 black, IP20 protection

In daily use

In an office server room or CCTV control centre, this cabinet keeps cabling tidy and hardware secure. The lower brush-style entry points minimise pinching and tangling, while the top cutouts allow you to add active fans when thermal load rises. During installation or maintenance, the side panels snap off without tools, and the reversible glass door adapts to your room layout. The included castors and leveling feet let you position the cabinet precisely, then lock it in place.

Full specifications

• Rack capacity: 37U
• External dimensions (W x D x H): 600 x 1000 x 1800 mm
• Internal rack width: 19 inches (482.6 mm)
• Load capacity: 1200 kg static
• Colour: Black (RAL 9005)
• Material: Cold-rolled steel
• Front door: Tempered glass, lockable, reversible

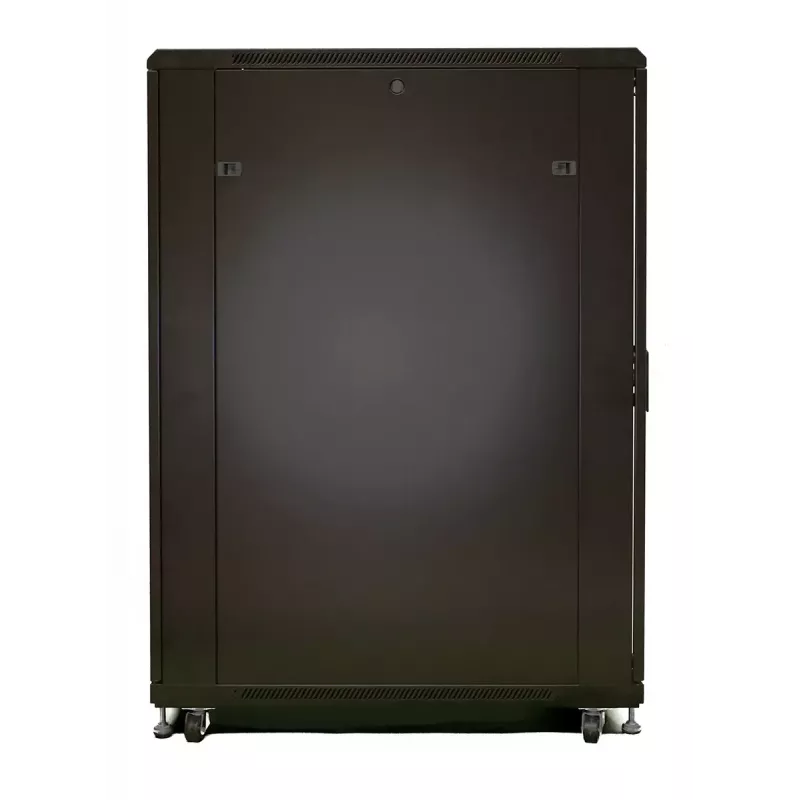

• Rear door: Steel with perforation and lock
• Side panels: Removable, lockable
• Mounting rails: Adjustable depth, 19-inch standard
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive, provision for fan units
• IP rating: IP20
• Included accessories: 4x castors, 4x leveling feet, cage nuts and screws
• Assembly: Flat-packed, required
• Compliance: CE, RoHS

Final note

A heavy-duty, lockable enclosure that balances security, cable management and cooling flexibility for professional IT environments.
