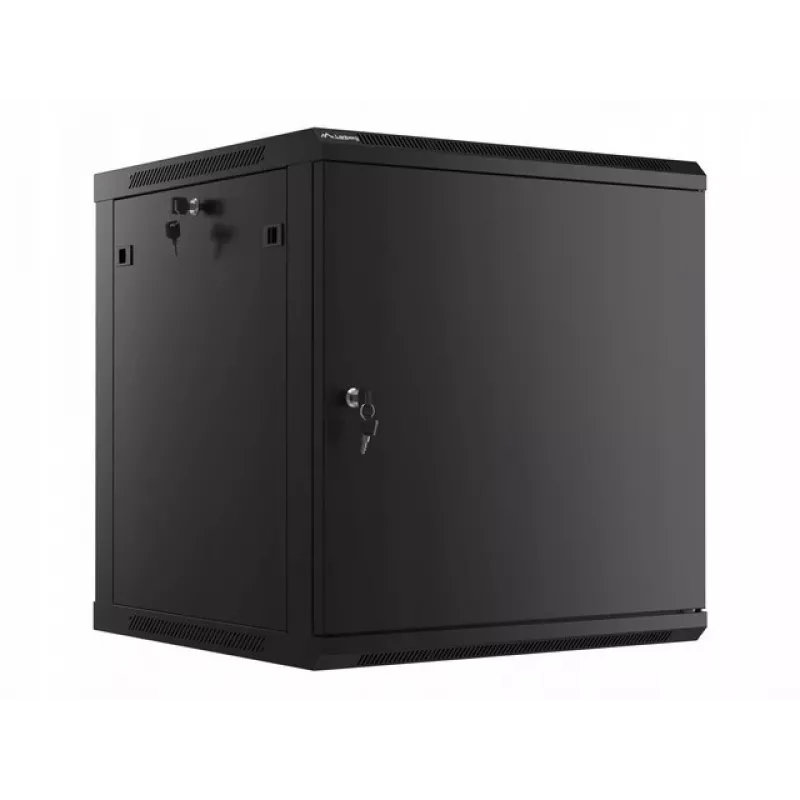

Wandmontage rack Lanberg WF01-6612-00B 12U zwart

Lanberg wall mount single-section cabinet WF01-6612-00B is a 19" rack solution for mounting network equipment and cabling with a maximum load capacity of 60 kg. The cabinet suits network closets, server rooms, and small to medium businesses, and is compatible with low-voltage installations such as cable TV, alarm and fire protection systems, access control, CCTV and IP surveillance. The steel construction arrives in a flat pack for self-assembly, simplifying transport and installation.

Advantages

The cabinet provides IP20 protection and a front door that opens and can rotate up to 180° with a lock. Removable side panels with locks and cable entry panels on the top and bottom allow neat cable routing. Made of high-grade cold rolled steel, the cabinet includes accessories for rail mounting, M6 cage nuts and blank entry panels, enabling faster installation and secure equipment mounting.

Key specifications

• Model: WF01-6612-00B
• Mounting: wall mount, single section
• Rack size: 19"
• Maximum load: 60 kg
• Protection degree: IP20
• Front door: opens and rotates up to 180° with lock
• Side panels: removable, with locks
• Cable entry: panels on top and bottom
• Material: cold rolled steel
• Delivery: flat pack for self-assembly
• Included accessories: rail mounts, M6 cage nuts, blank entry panels

How to use

Unpack the flat pack and follow the assembly instructions to build the cabinet frame, attach side panels and install the front door. Secure the cabinet to a suitable wall structure using appropriate fasteners for the wall material, then mount 19" equipment on the rail mounts using the supplied M6 cage nuts. Route cables through the top or bottom entry panels and secure panels after cabling. Lock doors and side panels as needed for physical security.

Recommendations

For safe installation, mount the cabinet on a load-bearing wall using anchors suitable for the wall type and ensure total equipment weight does not exceed 60 kg. Use proper cable management and grounding where required by local regulations.
