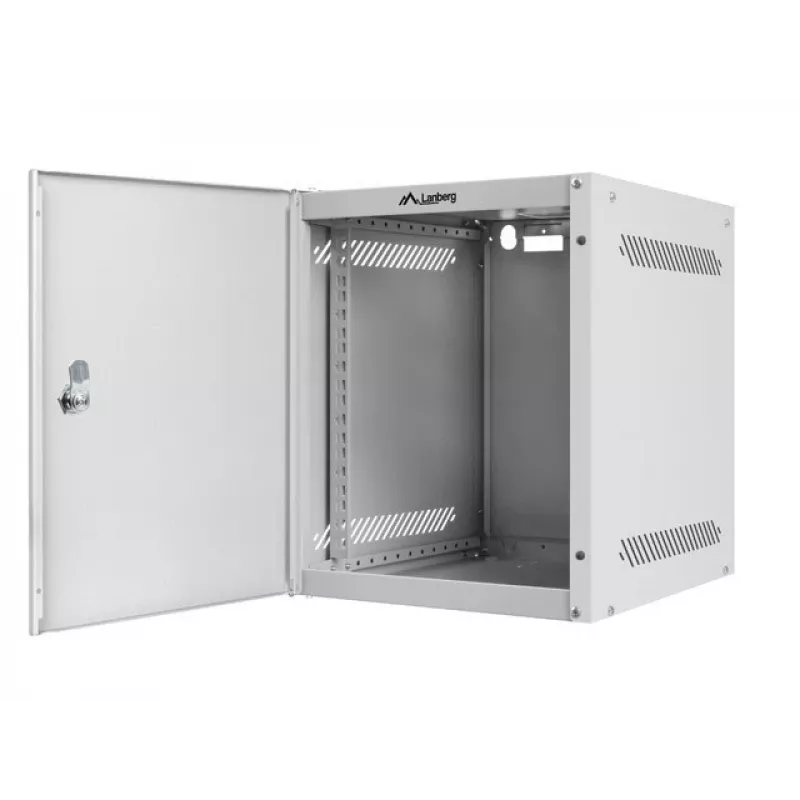

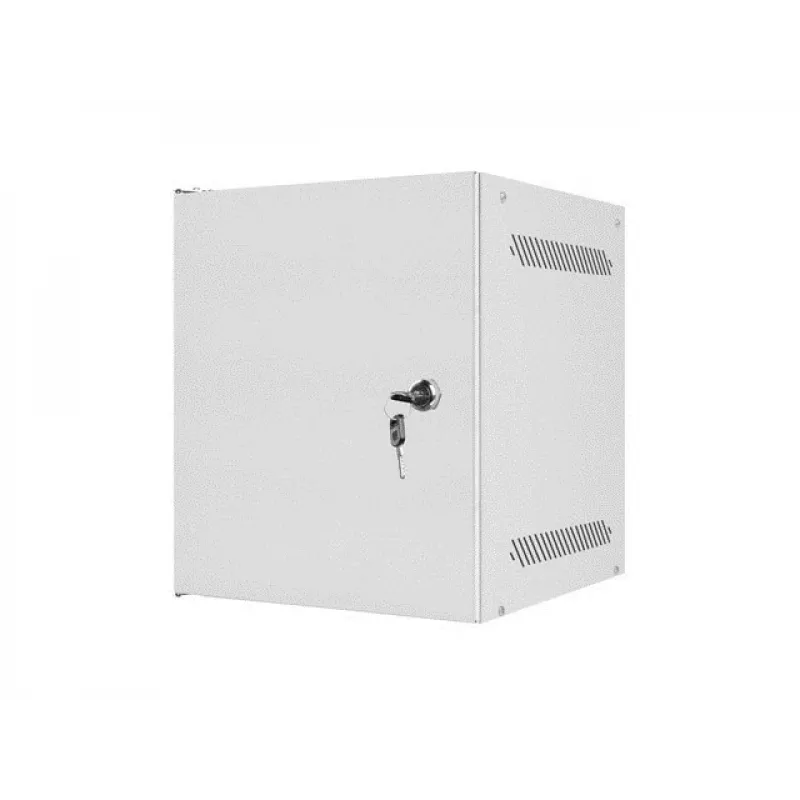

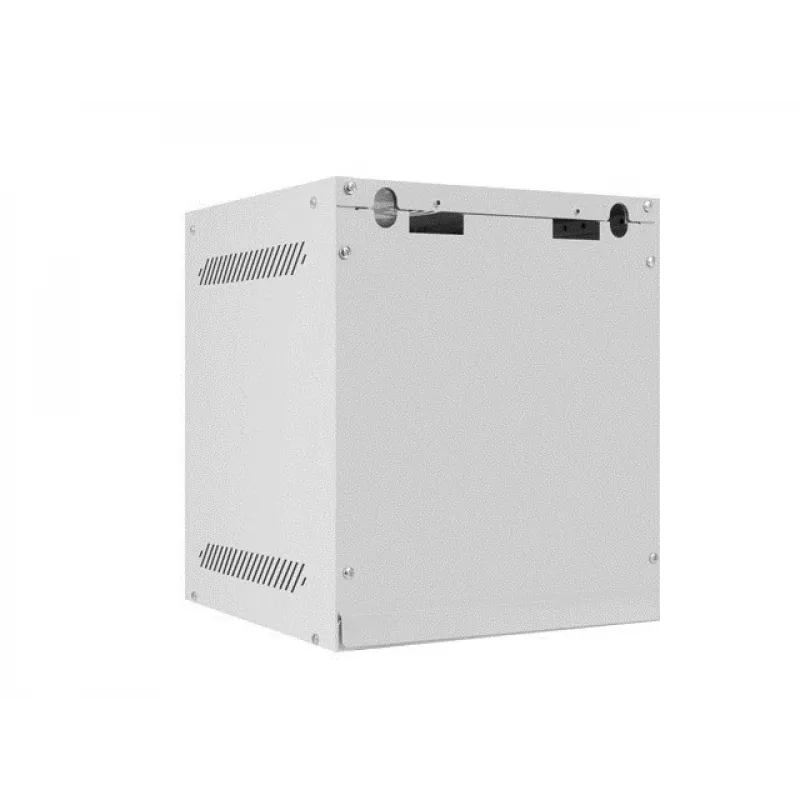

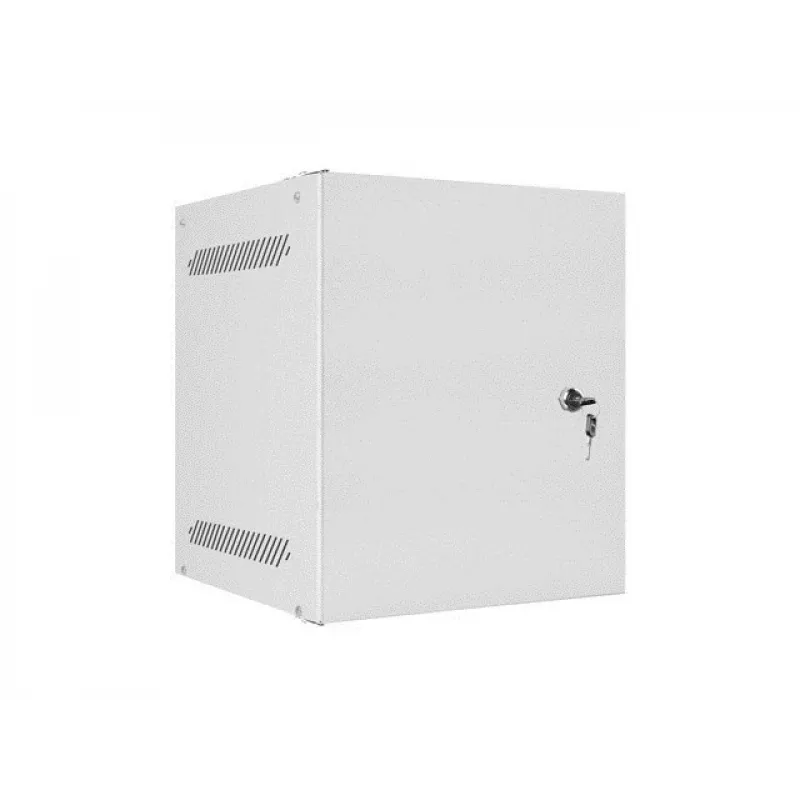

Wandmontage-rack Lanberg WF10-2306-00S

Lanberg WF10-2306-00S is a compact 10" wall-mounted rack designed for organising cabling and housing 10" network devices. The 6U cabinet is intended for small and medium-sized company installations and low-voltage systems such as cable TV, alarm and access control, CCTV and IP surveillance. It supports a maximum combined load of 20 kg and has an IP20 rating.

Advantages

The cabinet is made of rolled steel and comes as a flat-pack for easier transport and self-assembly. A tempered glass front door with an included lock provides controlled access and can rotate up to 180°. Top and bottom blank entry panels allow routing of cables. The unit is lightweight (5.45 kg) and has a compact footprint (280 x 238 x 336 mm).

Suitable for

• Small and medium-sized business network racks
• CCTV and IP surveillance installations
• Cable TV and other low-voltage distribution
• Alarm and access control system mounting

Key specifications

• Model: Lanberg WF10-2306-00S
• Size: 10" (6U)
• Dimensions (W×D×H): 280 × 238 × 336 mm
• Maximum load: 20 kg
• Weight: 5.45 kg
• IP rating: IP20
• Colour: Grey

How to use

Assemble the flat-pack cabinet following the included instructions and secure it to a load-bearing wall using the supplied mounting accessories and M6 screws. Install network devices and patch panels into the 6U rack rails, route cables through the top or bottom blank entry panels, and close the glass door, locking it if required. Ensure the total equipment weight does not exceed 20 kg and observe ventilation and spacing recommendations for installed devices.

Recommendations

Mount the cabinet on a solid wall and distribute equipment weight evenly across the 6U space. Leave sufficient clearance for cooling and cable management; avoid overloading beyond the specified 20 kg. Use appropriate grounding and follow local electrical and safety regulations when integrating low-voltage systems.
