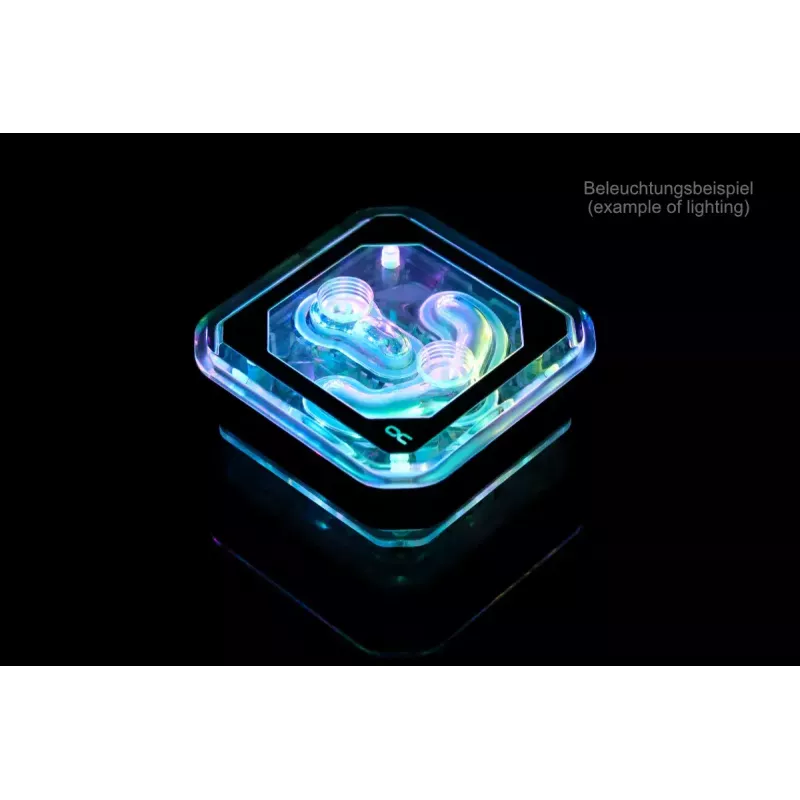

Waterblok Alphacool Eisblock XPX Aurora

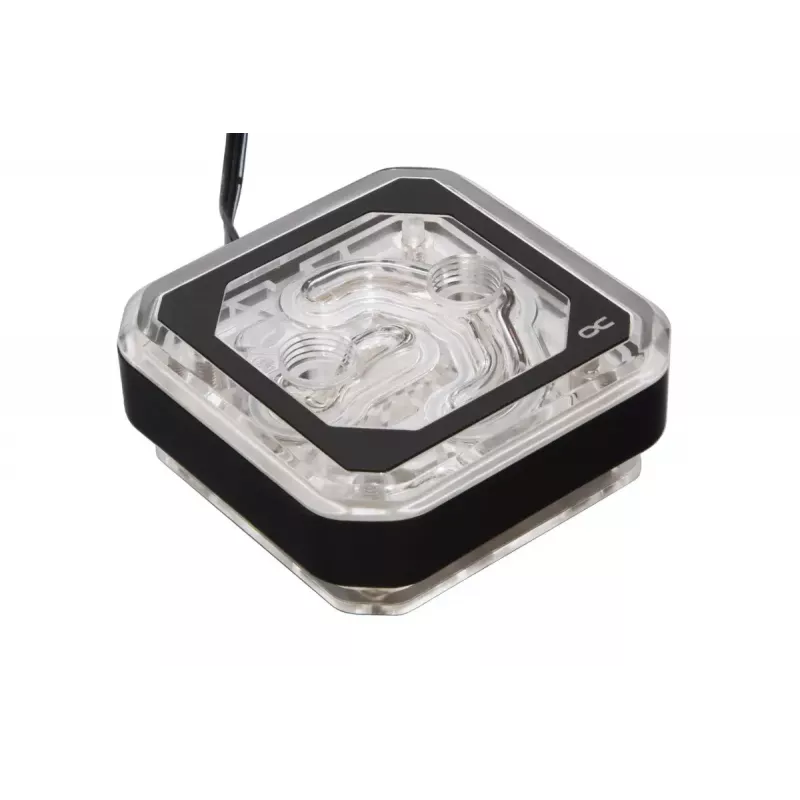

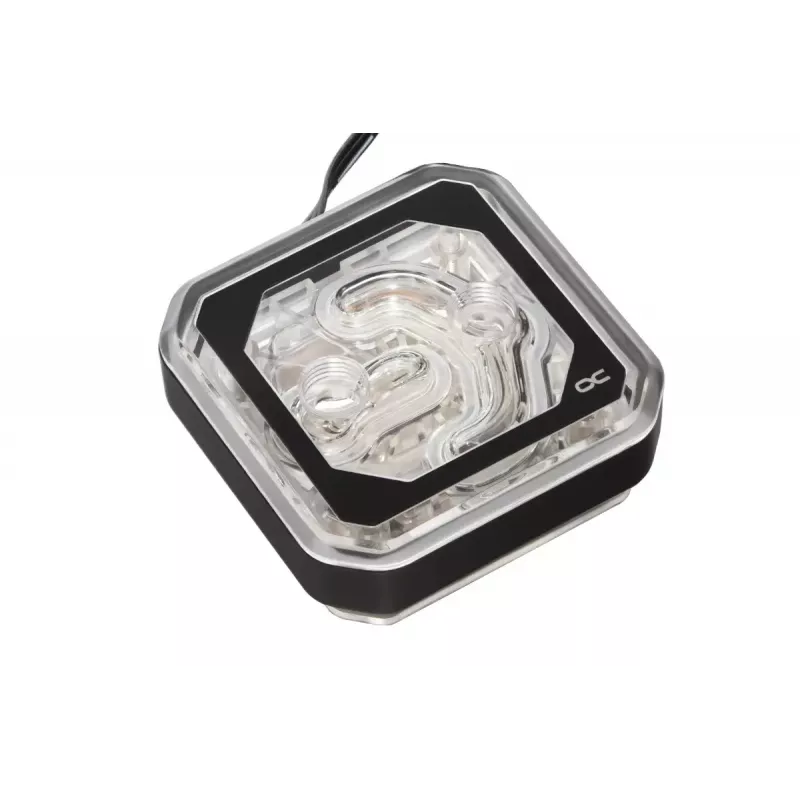

The Alphacool Eisblock XPX Aurora CPU water block combines a compact transparent-nylon and perspex construction with addressable digital RGB illumination and a patented internal ramp flow design to deliver efficient heat transfer for modern multi-core processors. The block measures approximately 75.8 mm in width and depth and 33 mm in height, and comes in a black and transparent finish.

Advantages

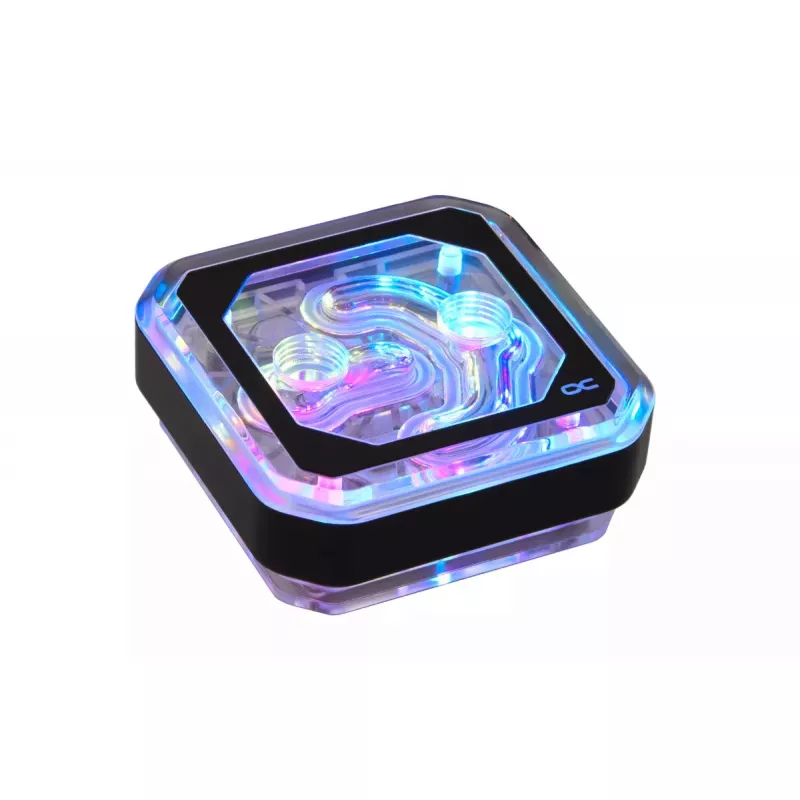

The patented ramp system ensures an even flow of coolant across the diffuser plate, pushing liquid uniformly over the enlarged cooling base to improve heat transfer. The base features enlarged cooling channels and 81 ultra-thin fins (0.2 mm thickness) to maximise surface area in a compact volume. Integrated addressable RGB LEDs (up to 15 LEDs) surround the block to provide uniform lighting and support standard 3-pin 5V mainboard control, with an included cable and integrated Y-adapter for daisy-chaining compatible Aurora products.

Suitable for (tasks / use cases)

• Cooling multi-core desktop CPUs (including 4, 6, 8 or more cores)
• Custom liquid-cooled PC builds prioritising compact water blocks
• Systems requiring addressable RGB lighting integration
• Enthusiast and overclocking builds needing efficient CPU heat dissipation

Key specifications

• Type: CPU water block
• Materials: transparent nylon lower housing, perspex/plexi upper area
• Dimensions: approx. 75.8 mm (W) x 75.8 mm (D) x 33 mm (H)

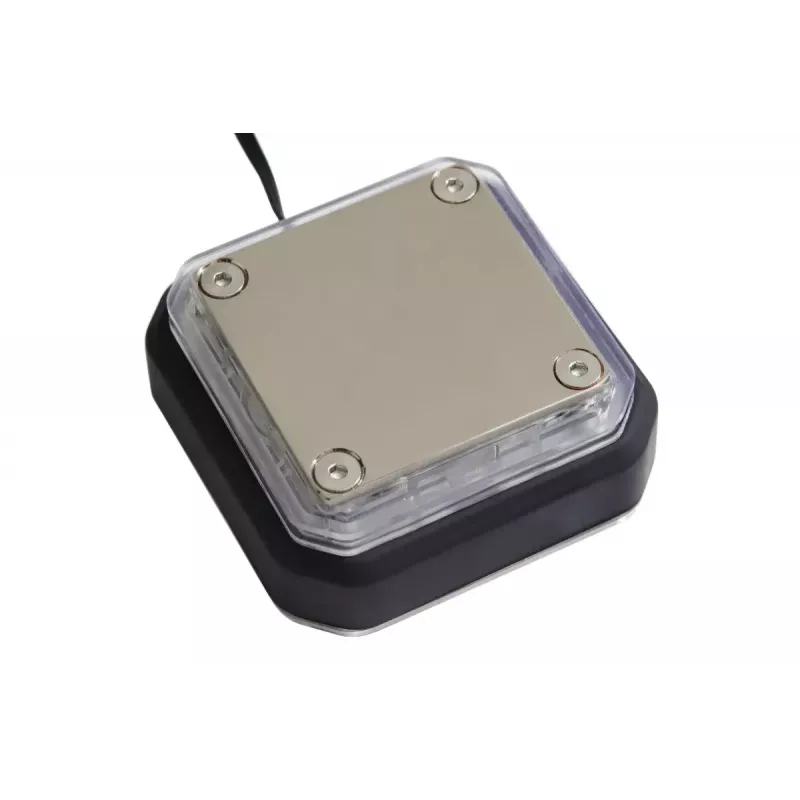

• Cooling base: enlarged channels with 81 fins, fin thickness 0.2 mm

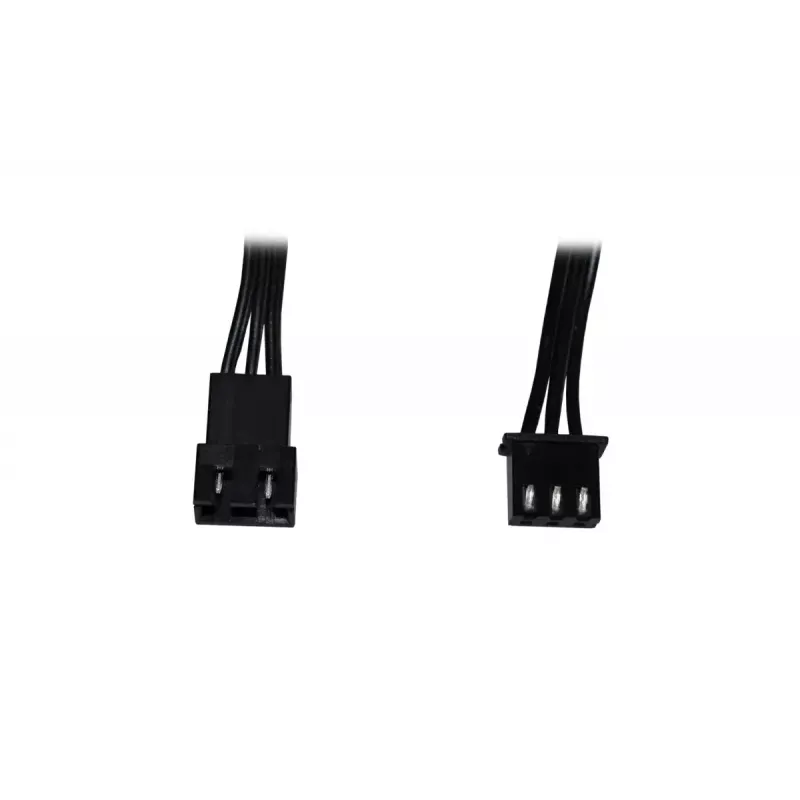

• Lighting: addressable digital RGB (up to 15 LEDs), 3-pin 5V connector, integrated Y-adapter
• Supported sockets: Broad compatibility including Intel LGA and AMD AM series sockets (see product compatibility list)
• Colour: black frame with transparent block
• Weight: approx. 0.206 kg

How to use

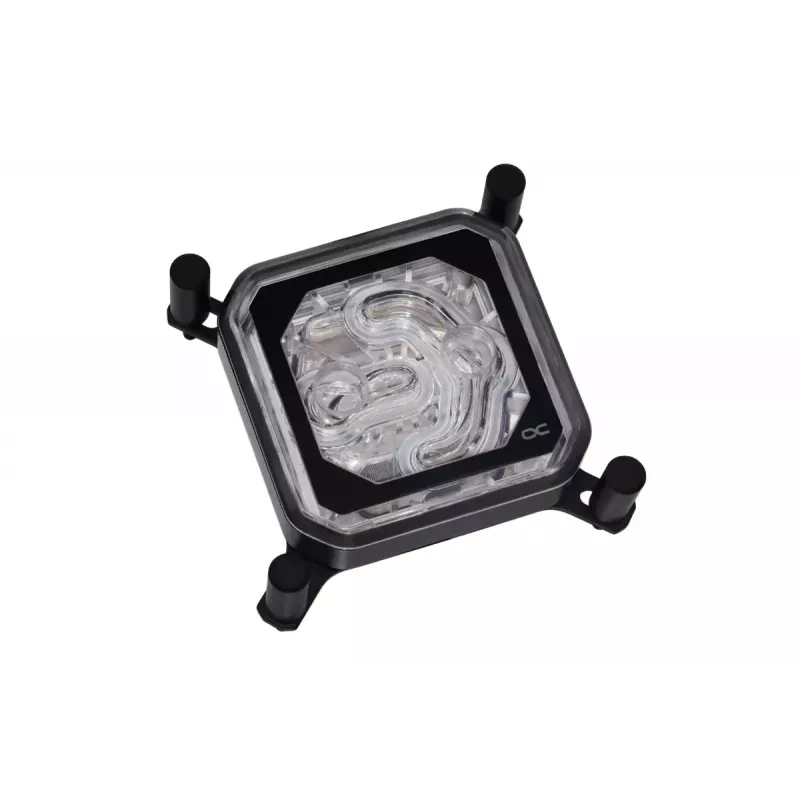

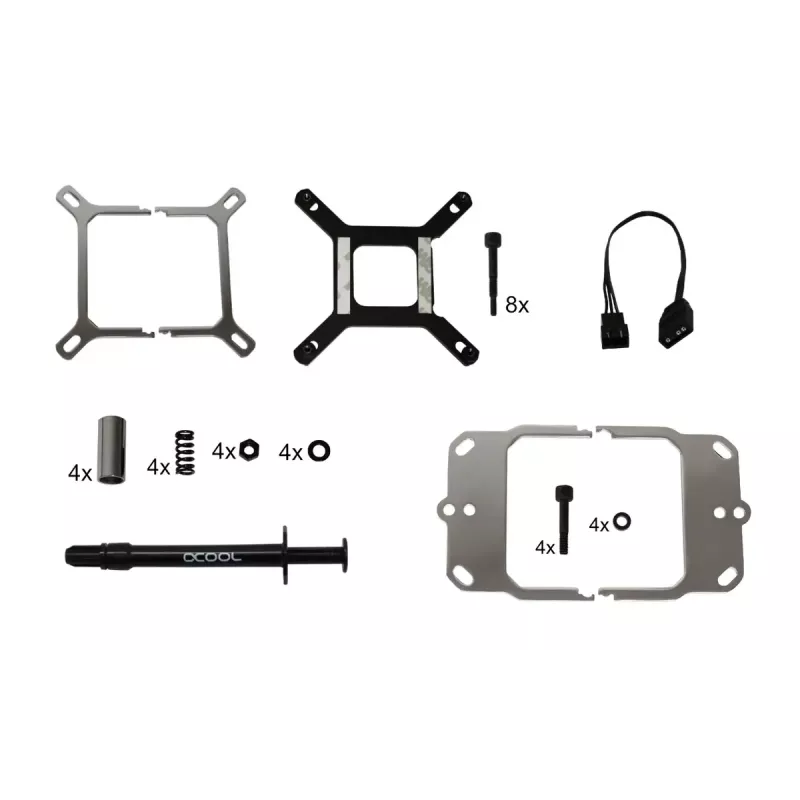

Install the backplate on the motherboard from the rear, select and fit the appropriate mounting frame for the processor socket onto the cooler (mounting screws are pre-attached to the frame), apply thermal paste to the CPU heatspreader, then secure the water block using the supplied screws. Connect the addressable RGB cable to a compatible 3-pin 5V header or to a separate controller; use the integrated Y-adapter to connect additional Aurora devices as needed. Extension cables may be required depending on case layout.

Recommendations

Use with a compatible custom loop and appropriate coolant; ensure secure fittings and check for leaks after installation. For optimal lighting control connect to a 3-pin 5V aRGB header or a compatible controller and verify available clearance around the socket area before mounting.
