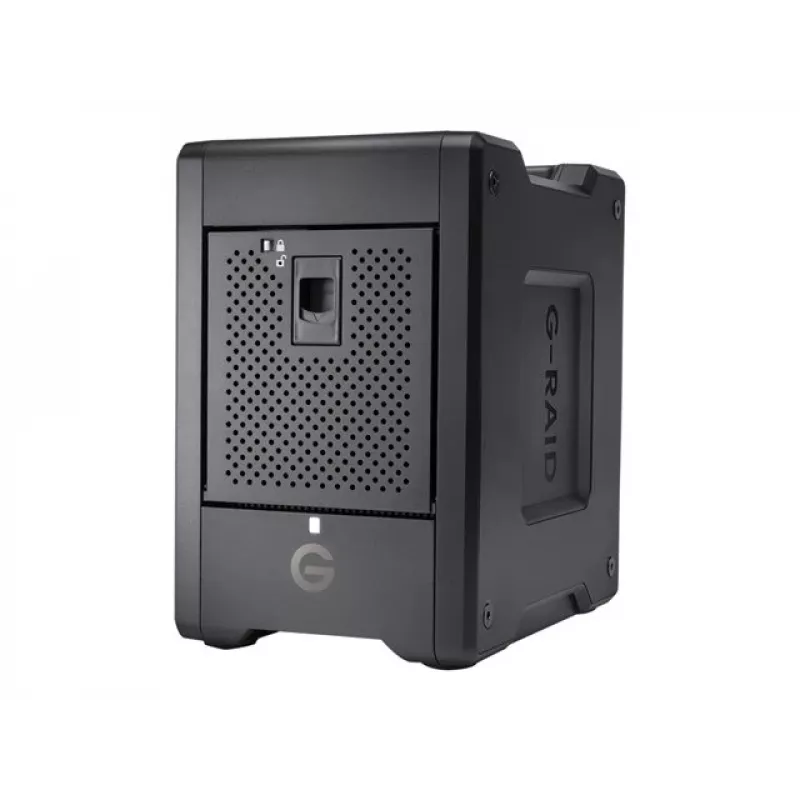

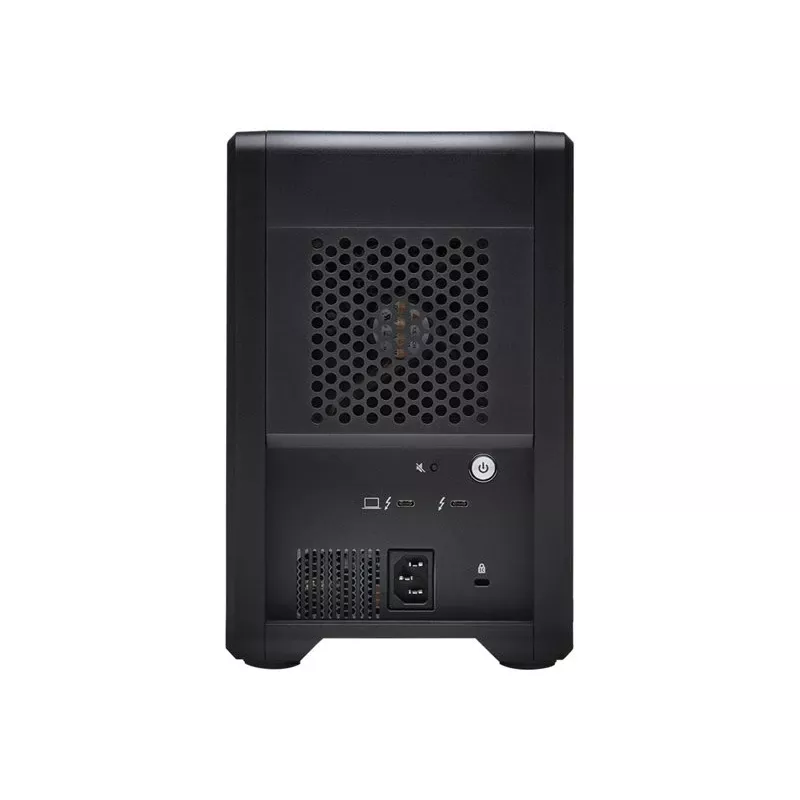

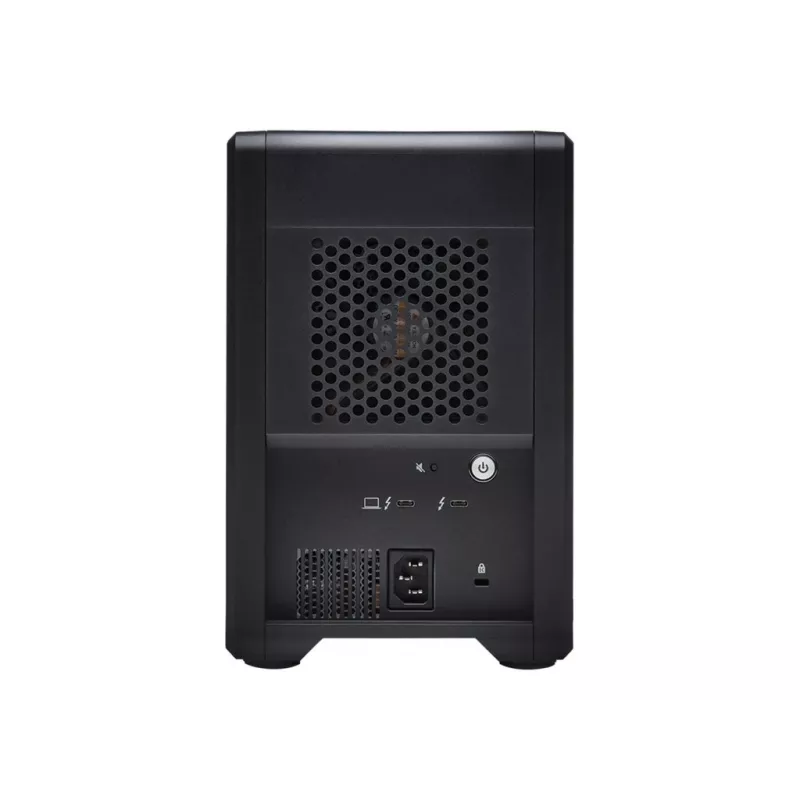

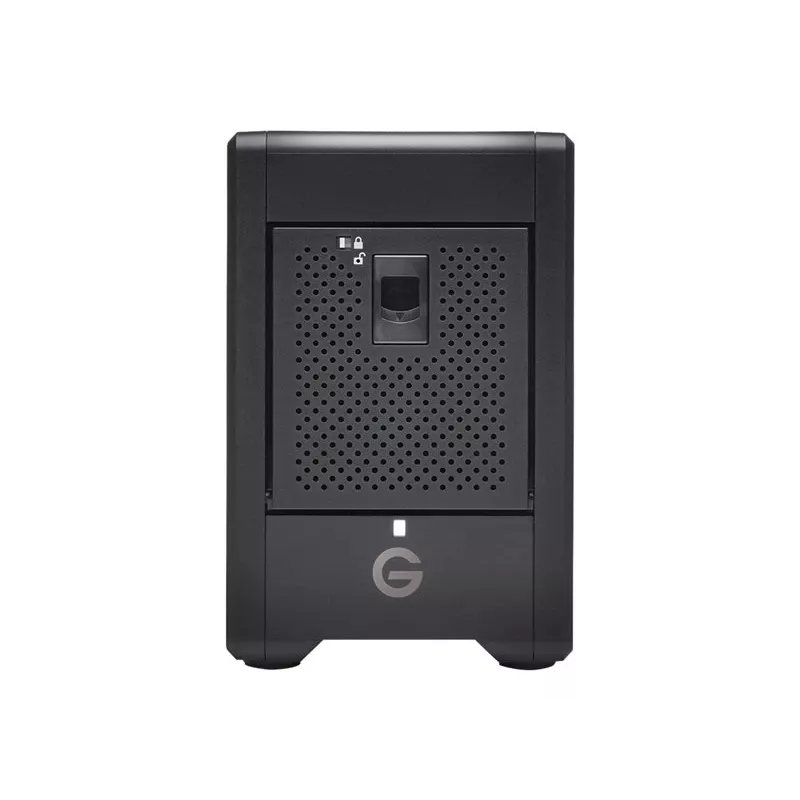

HDD SanDisk 48 TB Desktop G-RAID SHUTTLE 4

The SanDisk G-RAID SHUTTLE 4 is a transportable desktop HDD array providing 48 TB of capacity in a compact, rugged chassis. Designed for professional 4K and 8K production workflows, it houses four removable Ultrastar enterprise-class 7200RPM drives and offers a hardware RAID controller preconfigured in RAID 5. With Thunderbolt 3 and USB-C connectivity plus support for USB Power Delivery, this device combines high capacity and performance for on-location capture and studio post-production.

Advantages

The G-RAID SHUTTLE 4 delivers sustained transfer rates up to 1000 MB/s, removable enterprise-class drives for easier maintenance, and built-in hardware RAID supporting RAID 0, 1, 5 and 10 for performance and redundancy flexibility. Dual Thunderbolt 3 ports allow daisy-chaining additional devices, while USB Power Delivery (up to 85 W) can charge compatible laptops. Its transportable design and enterprise drives make it suitable for demanding, multi-stream editing and large media archives.

Suitable for

• Multi-camera 4K and 8K editing on location or in-studio
• Real-time timeline playback and multi-layer rendering
• High-capacity media storage and archival for production teams
• Workflows requiring removable enterprise-class HDDs for serviceability

Key specifications

• Model: SanDisk G-RAID SHUTTLE 4 (SDPH34H-048T-MBAAB)
• Capacity: 48 TB (four removable HDDs)
• Drive type: Ultrastar enterprise-class 7200 RPM hard drives (removable)
• Interface: Dual Thunderbolt 3 ports and USB-C (with USB Power Delivery up to 85 W)
• Hardware RAID: RAID 0, 1, 5 (default), 10
• Sustained throughput: up to 1000 MB/s
• Color: Black
• Dimensions (W x D x H): 174 mm x 247.7 mm x 266.7 mm
• MPN: SDPH34H-048T-MBAAB • EAN: 0718037886862

How to use

Connect the G-RAID SHUTTLE 4 to your computer via Thunderbolt 3 or USB-C. If using Thunderbolt 3, you may daisy-chain up to five additional devices from the second Thunderbolt port. The unit ships configured in RAID 5 for a balance of performance and data protection; change the RAID mode using the drive’s hardware RAID controller or management utility before initial use if a different configuration is required. Insert or remove Ultrastar drives only when the unit is powered down or following the manufacturer’s hot-swap instructions. Use the USB-C port to provide up to 85 W of power to compatible laptops while connected.

Recommendations

For reliable long-term operation in production environments, place the G-RAID SHUTTLE 4 on a stable surface, ensure proper ventilation, and perform periodic backups even when using RAID. Replace failed drives with identical enterprise-class Ultrastar units and rebuild the RAID array according to SanDisk’s service guidelines.
