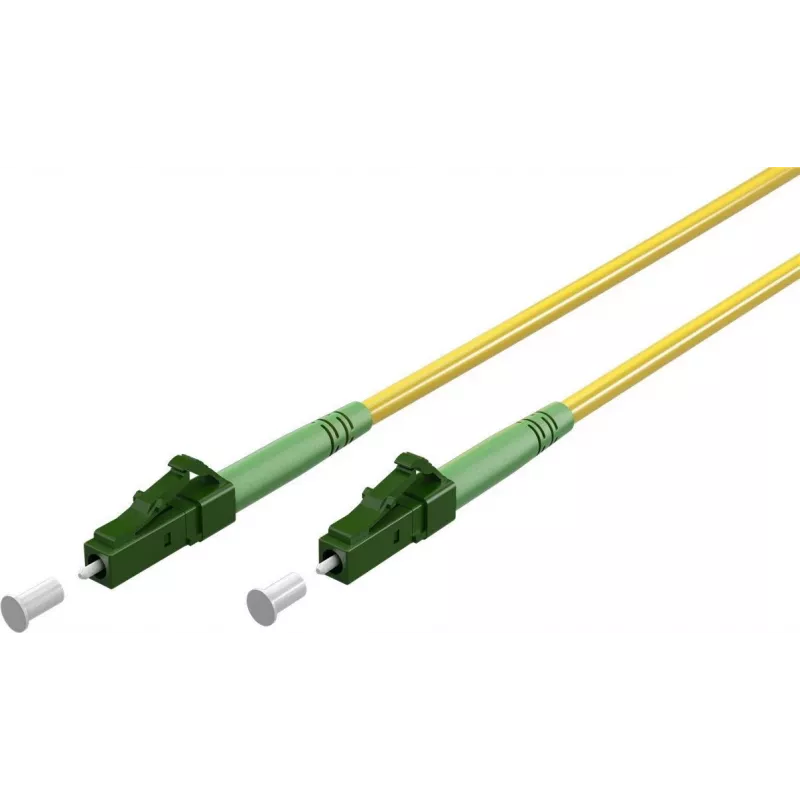

Wentronic Goobay 59630 LC/APC naar LC/APC OS2 single-mode glasvezel-patchkabel, 3 m, geel

Fiber optic patch cable with LC/APC connectors delivers high-performance single-mode OS2 connectivity for FTTH applications. The 3-meter yellow simplex cable ensures low insertion loss and high return loss, making it ideal for reliable optical signal transmission in demanding environments.

Advantages

The LSZH jacket provides safety in case of fire by emitting low smoke and zero halogen, while the 9/125 µm core/cladding supports long-distance transmission with minimal attenuation. The angled physical contact (APC) polish reduces back reflections, enhancing signal quality for sensitive networks.

Suitable for

• FTTH (Fiber to the Home) installations
• Telecommunication networks
• Data centers requiring stable single-mode links
• CATV and broadband systems

Key specifications

• Connector type: LC/APC to LC/APC
• Fiber mode: Single-mode OS2
• Cable length: 3 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 60 dB
• Attenuation: 0.4 dB/km @ 1310 nm, 0.3 dB/km @ 1550 nm
• Operating temperature: -20 to 70 °C
• Compliance: RoHS, CE

Recommendations

For optimal performance, pair this cable with compatible LC/APC adapters and ensure proper cleaning of connectors before installation. Use in environments where low smoke and halogen-free materials are required.
