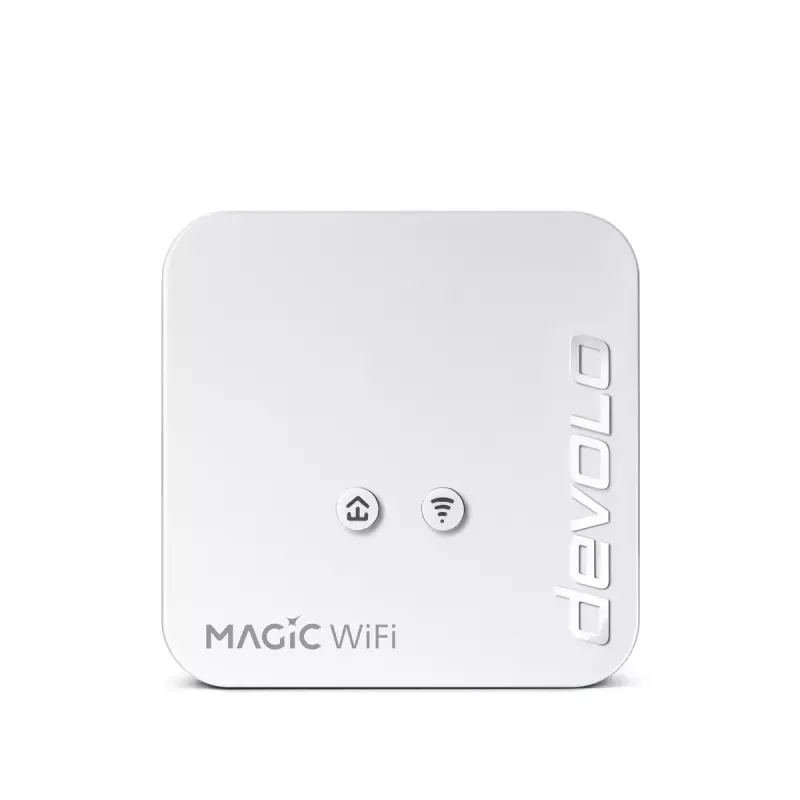

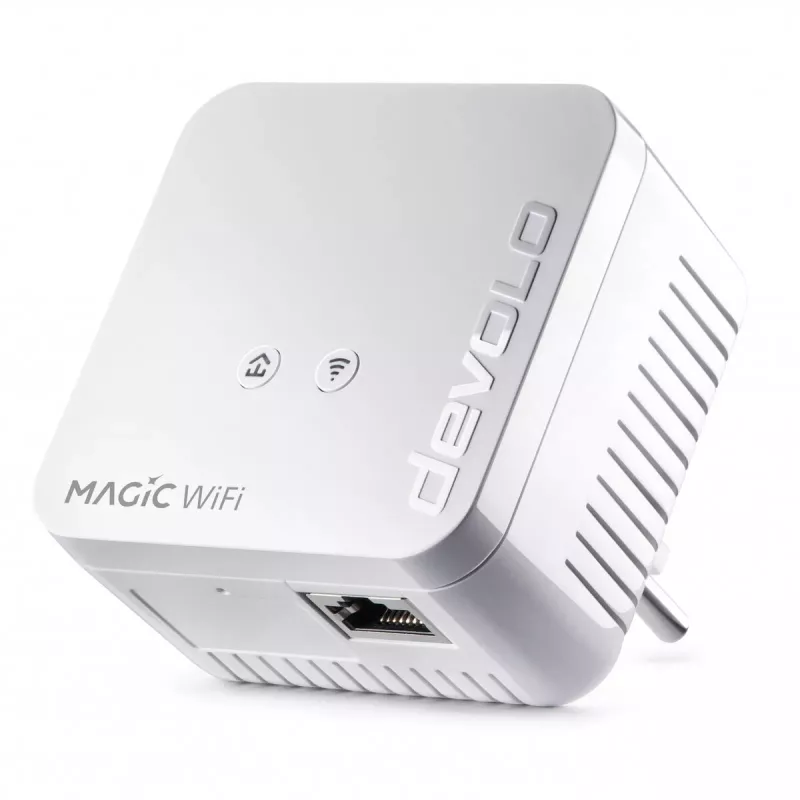

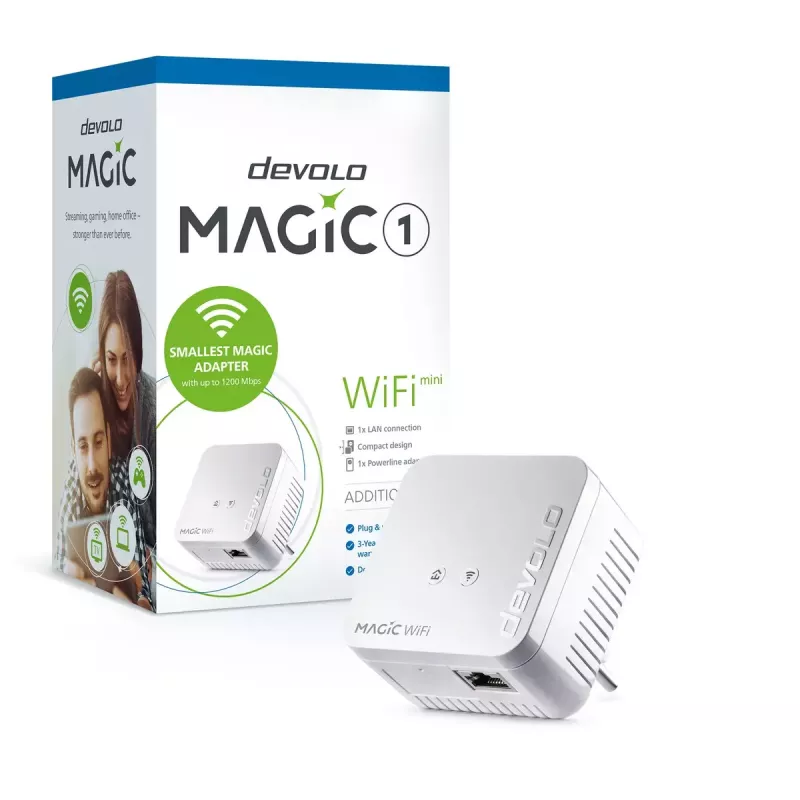

WiFi-adapter Devolo Magic 1 WiFi mini

The Devolo Magic 1 WiFi mini is a compact powerline Wi‑Fi adapter that extends wired and wireless network coverage through existing electrical cabling. With a maximum data transfer rate of 1200 Mbit/s and support for IEEE 802.11n/g/b standards, the unit combines a built‑in power socket, integrated Wi‑Fi and an Ethernet LAN port to provide flexible connectivity in small apartments or multi‑room homes. LED indicators show PLC activity and the internal antenna design keeps the housing compact (68 x 68 x 41 mm) while maintaining energy efficiency with typical power consumption around 4.4 W and low standby usage.

Advantages

The adapter delivers fast data throughput over powerline connections and provides both wireless and wired access without requiring additional cabling. Its built‑in power socket preserves wall outlet availability and the compact white enclosure fits unobtrusively into most interiors. LED indicators simplify status monitoring and low power consumption reduces operating costs while maintaining continuous network availability.

Suitable for

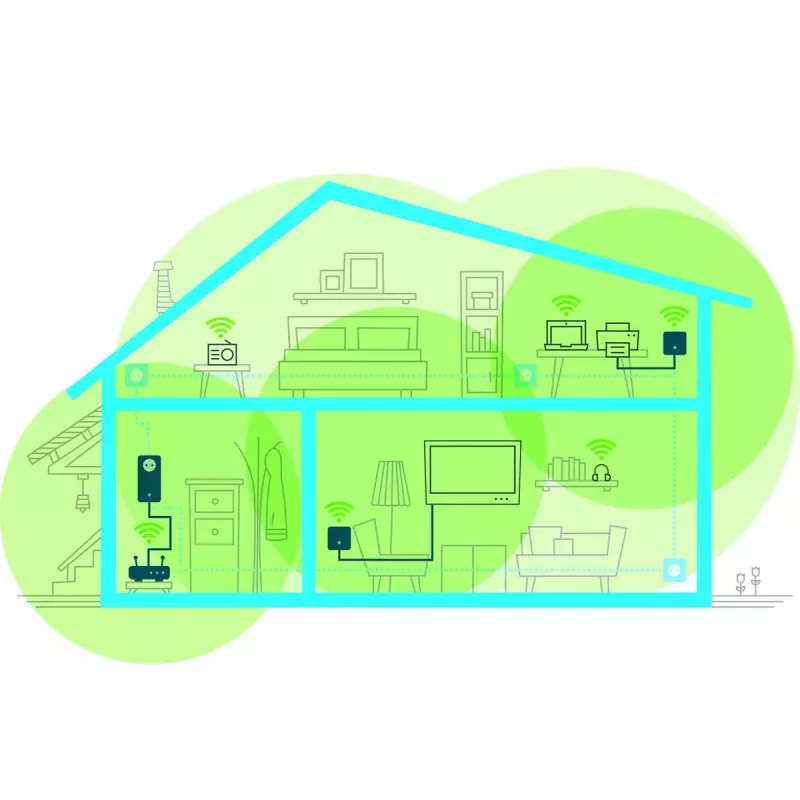

• Extending internet access to rooms without direct router coverage
• Streaming video and media in living rooms or bedrooms
• Connecting smart TVs, consoles or set‑top boxes via Ethernet
• Providing Wi‑Fi for home offices and remote workstations

Key specifications

• Maximum data transfer rate: 1200 Mbit/s
• Wireless standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Interfaces: integrated Wi‑Fi, Ethernet LAN port
• Built‑in power socket: Yes
• Antenna: internal
• Typical power consumption: 4.4 W; standby: 1 W
• Dimensions (W×H×D): 68 × 68 × 41 mm
• Color: White

How to use

Plug one Magic 1 WiFi mini adapter into a power outlet near your router and connect it to the router with an Ethernet cable. Place the second adapter in the room where you need network access and allow the devices to pair via the electrical wiring; LED indicators will confirm PLC connection. Use the Ethernet LAN port for wired devices or connect wirelessly using the adapter's Wi‑Fi network. Configure network settings or security options through the Devolo interface or compatible management tools on your computer or mobile device.

Recommendations

For optimal performance, connect the adapters to mains outlets that are not switched by wall switches and avoid using multi‑socket extenders or surge protectors between the adapter and the wall. Place the adapter away from large appliances that may create electrical noise and, where possible, use the Ethernet port for bandwidth‑sensitive devices such as gaming consoles or smart TVs.
