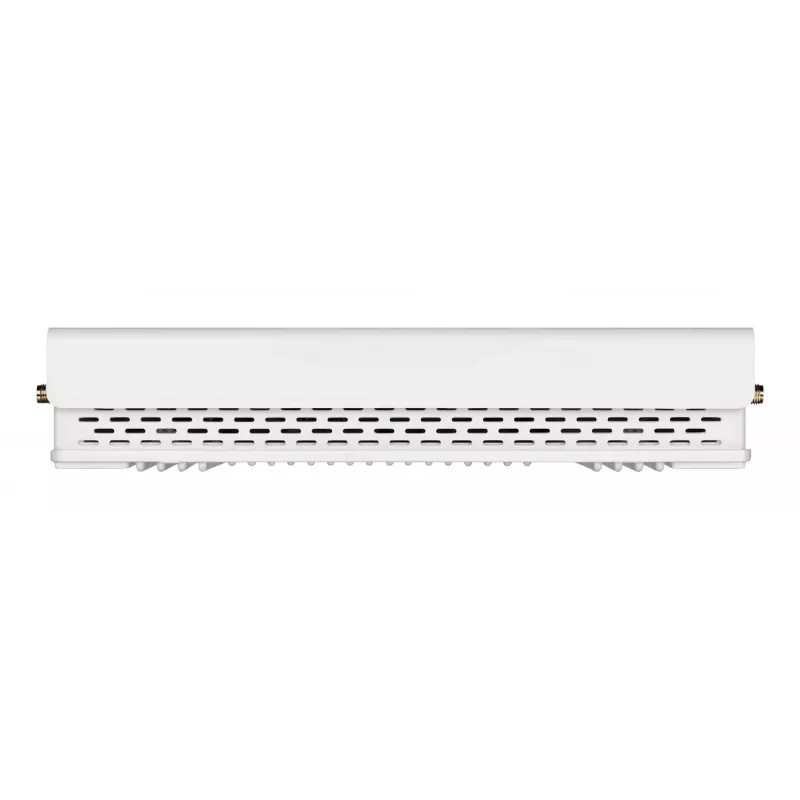

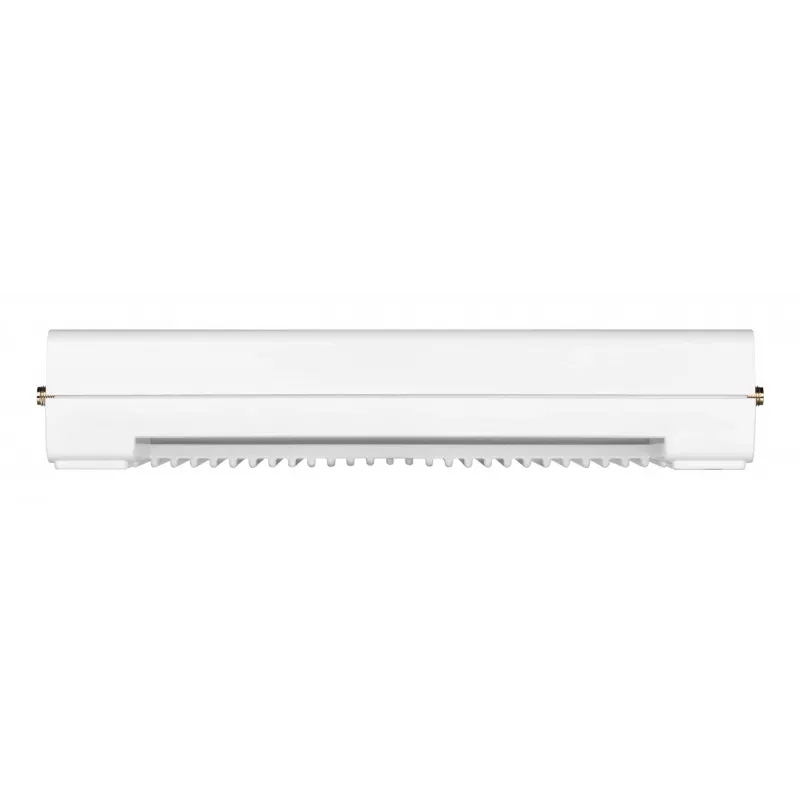

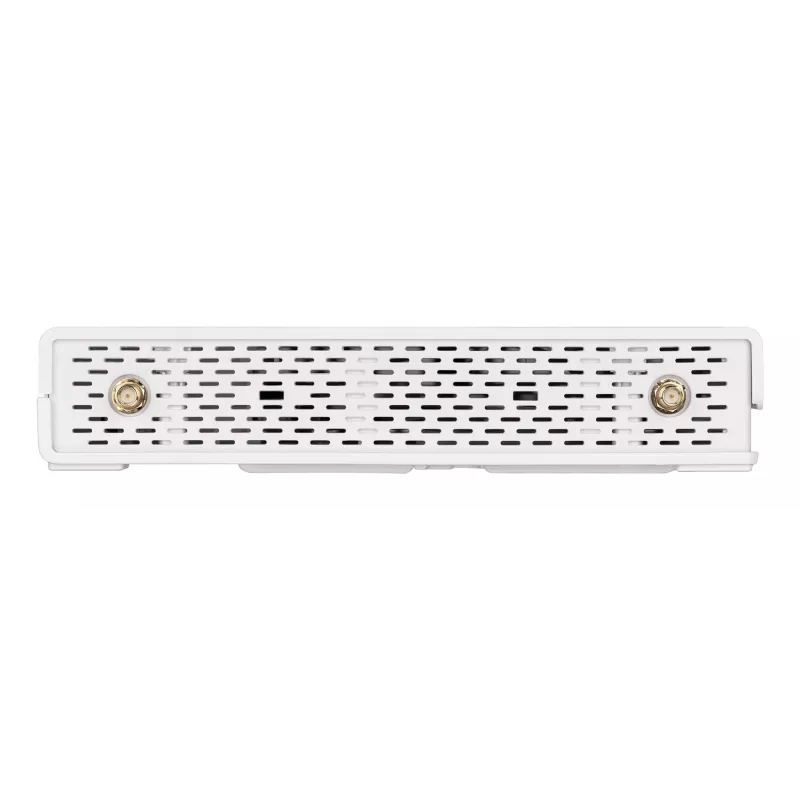

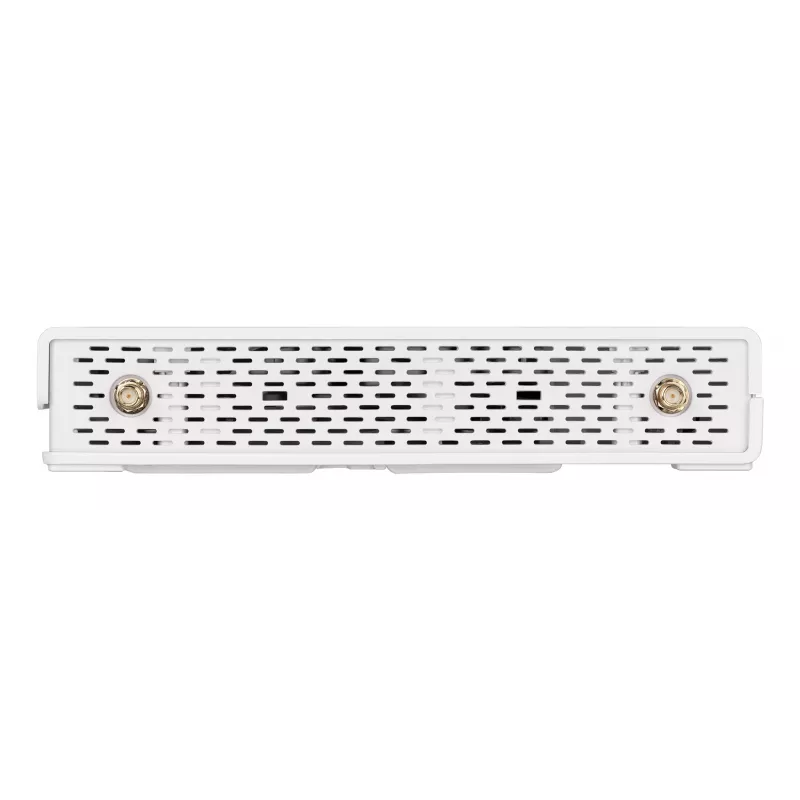

LANCOM LX-6402 Wi-Fi 6 access point, bulkverpakking van 10

The LANCOM LX-6402 is a Wi-Fi 6 access point designed for high-density environments, offering low latency and high throughput per client. It supports dual concurrent Wi-Fi 6 (IEEE 802.11ax) on both 2.4 GHz and 5 GHz bands, with external antenna connectivity for precise coverage in complex environments.

Key features

• Dual concurrent Wi-Fi 6 (IEEE 802.11ax) with aggregated data rate up to 3,550 Mbit/s
• 4x4 Multi-User MIMO in downlink and uplink
• OFDMA for efficient spectrum use
• 160 MHz channel width (with 2 streams)
• Target Wake Time (TWT) for reduced client power consumption
• IoT support via Bluetooth Low Energy (5.1) and USB 3.0
• Supports external WLAN antennas
• Security algorithms: AES-CCMP, AES-GCMP, EAP-FAST, EAP-GTC, EAP-PEAP, EAP-TLS, EAP-TTLS, TKIP, WEP, WPA2, WPA3
• Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
• Power over Ethernet (PoE)
• Product colour: White

Specifications

• Brand: LANCOM
• MPN: 61828
• Wi-Fi: Yes
• Wi-Fi standards: Wi-Fi 6
• Frequency bands: 2.4 GHz, 5 GHz
• Max data transfer rate (2.4 GHz): 1150 Mbit/s
• Max data transfer rate (5 GHz): 2400 Mbit/s
• Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
• Number of users: 511
• Channel spacing: 160 MHz
• MIMO type: Multi User MIMO
• Spread-spectrum method: OFDMA
• Modulation: 256-QAM, 1024-QAM
• Fast roaming
• VLAN support
• Number of VLAN IDs: 4096
• Band steering
• Maximal ratio combining (MRC)
• Quality of Service (QoS) support
• Upgradable firmware
• Number of Ethernet LAN ports (RJ-45): 2
• Number of USB 2.0 ports: 1
• USB connector: USB Type-A
• DC input connection
• AC input voltage: 12 V
• Placement: Table
• Product colour: White
• Housing material: Synthetic
• Cable lock slot
• Cable lock slot type: Kensington
• LED indicators: Yes
• Antenna type: External
• Antenna direction type: Omnidirectional
• Number of antennas: 4
• Width: 205 mm
• Depth: 205 mm
• Height: 42 mm
• Operating relative humidity: 0 - 90%
• Operating temperature: 0 - 40 °C
• Quantity per pack: 10 piece(s)
• AC power adapter
• Cables included: LAN (RJ-45)
• Quick start overview
